12-18V SAG:
It outputs adjustable DC voltage range 12~18V, the end in counterclockwise direction
is 12V. The max. output current is 50mA, 5.5x2.1mm, negative center.

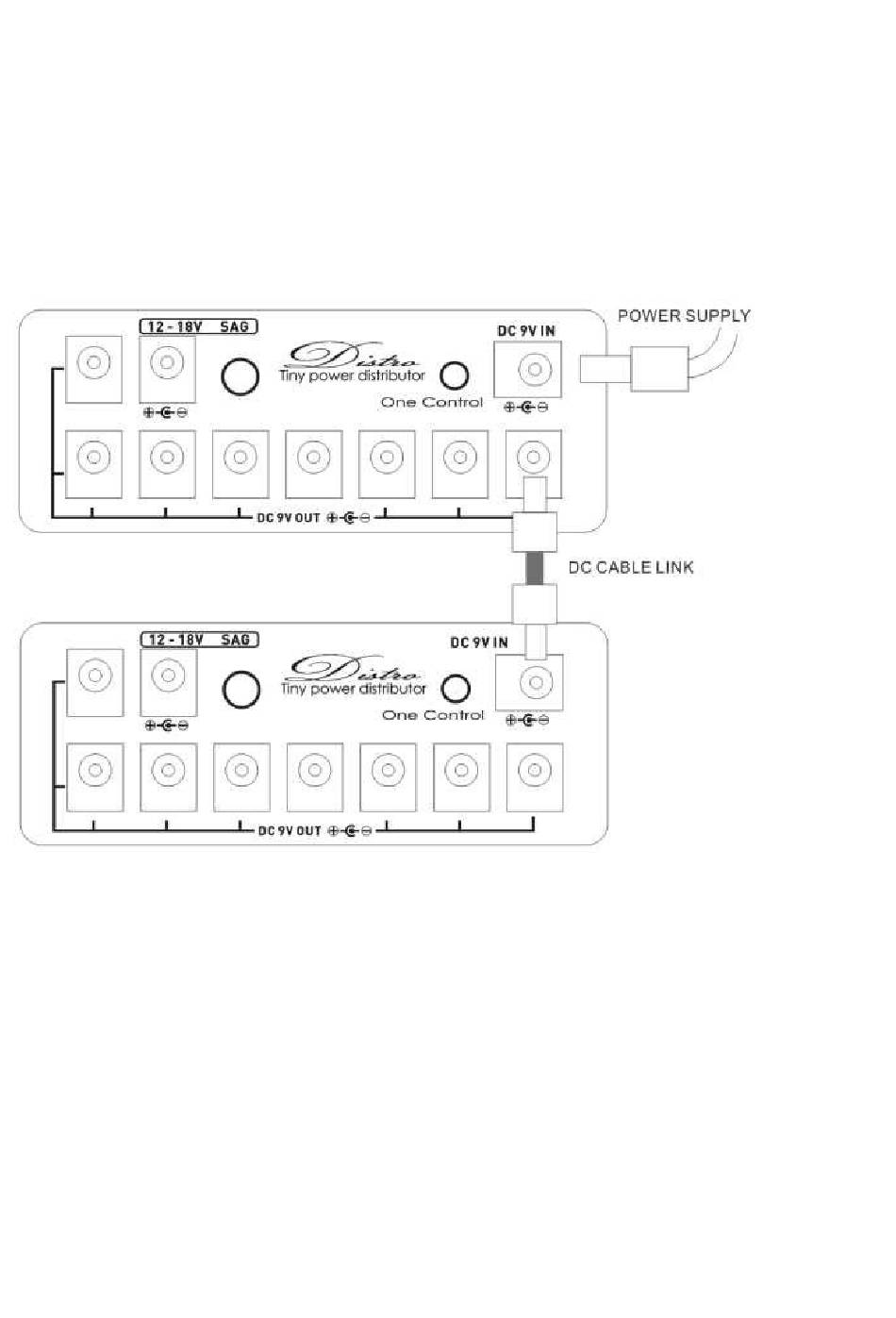

Link Feature:
LINK Feature: connect DISTRO units to power up to 17 effect pedals,
Any 9V output could connect to DC 9V input of another Distro to power 17 pedals.
•
Recommended Power Supply: EPA-2000 (not included)
- Specifications
Outputs:
• DC9V x 8
• DC12V~18V x1
• Weight: 127 g/ 4.48 oz
• Size: 100 (W)mm x 39(D) mm x 25 (H) mm / 3.94" x 1.54" x 0.98"
