One Control Minimal Series User Manual

User's Manual

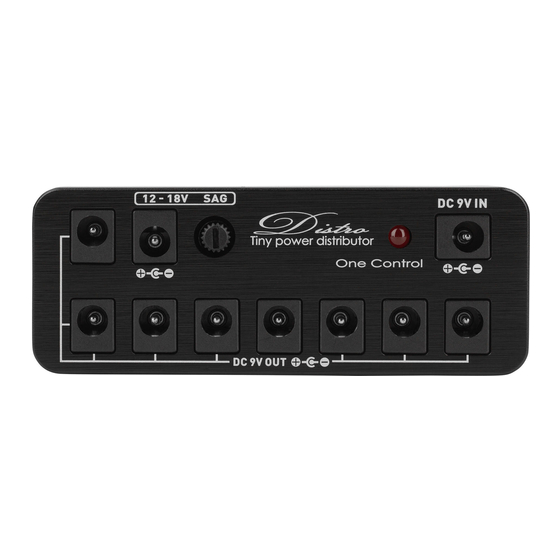

Distro Tiny Power Distributor
Thank you for your purchase of the Distro Tiny Power Distributor by One Control.
The One Control "Distro" is one-stop shop to power your pedalboard in a quiet and
efficient manner. This unit gives you the ability to power up to nine effects pedals with
2000ma current draw total, including one power outlet that varies from 12-18v output
to experiment with your pedals that can run at higher voltages (and a "sag" knob to
experiment with lowering that voltage). This incredibly small unit takes up very little
space on your board, with the ability to "link" units together for additional power
requirements such as powering 18 pedals! You can use many standard 9v center
negative power supplies to power the Micro Distro, but we recommend our EPA-2000
high capacity adapter for best results. Check out the sleek and sexy CNC carved
aluminum case, which is incredibly durable as well as extremely compact. Our unit is
quiet, efficient, and emits very little heat even when in use for long periods of time,
and is also designed to be as quiet as possible to provide the least noise into your
precious signal chain. And just in case you plug into a bad power circuit, the Micro
Distro is designed to protect your board from overload. Choose either the Micro Distro
Solo, or go all the way and get the full package with the Micro Distro All in One Pack -
which gives you the rock solid EPA-2000 power supply and 4 varying length of power
cables (9 total) so you can wire and power your whole board!

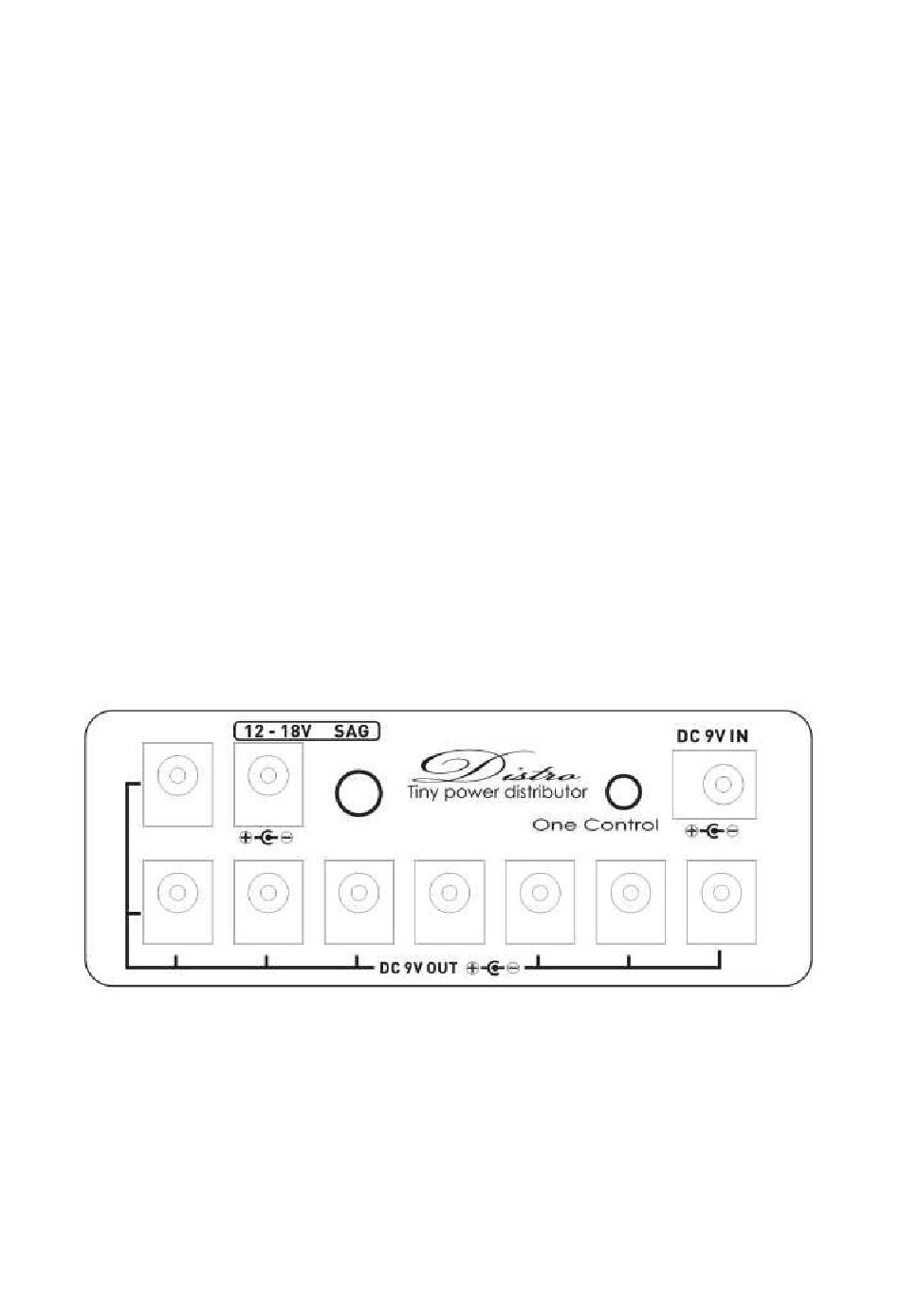

DC 9V IN:

5.5x2.1mm DC jack, connect DC9V, negative center power supply here.

DC 9V OUT:

Total eight DC 9V outputs, 5.5x2.1mm, negative center, the absolute max. output
current of each output is 2000mA. The total max. output current of eight outputs is
2000mA.
