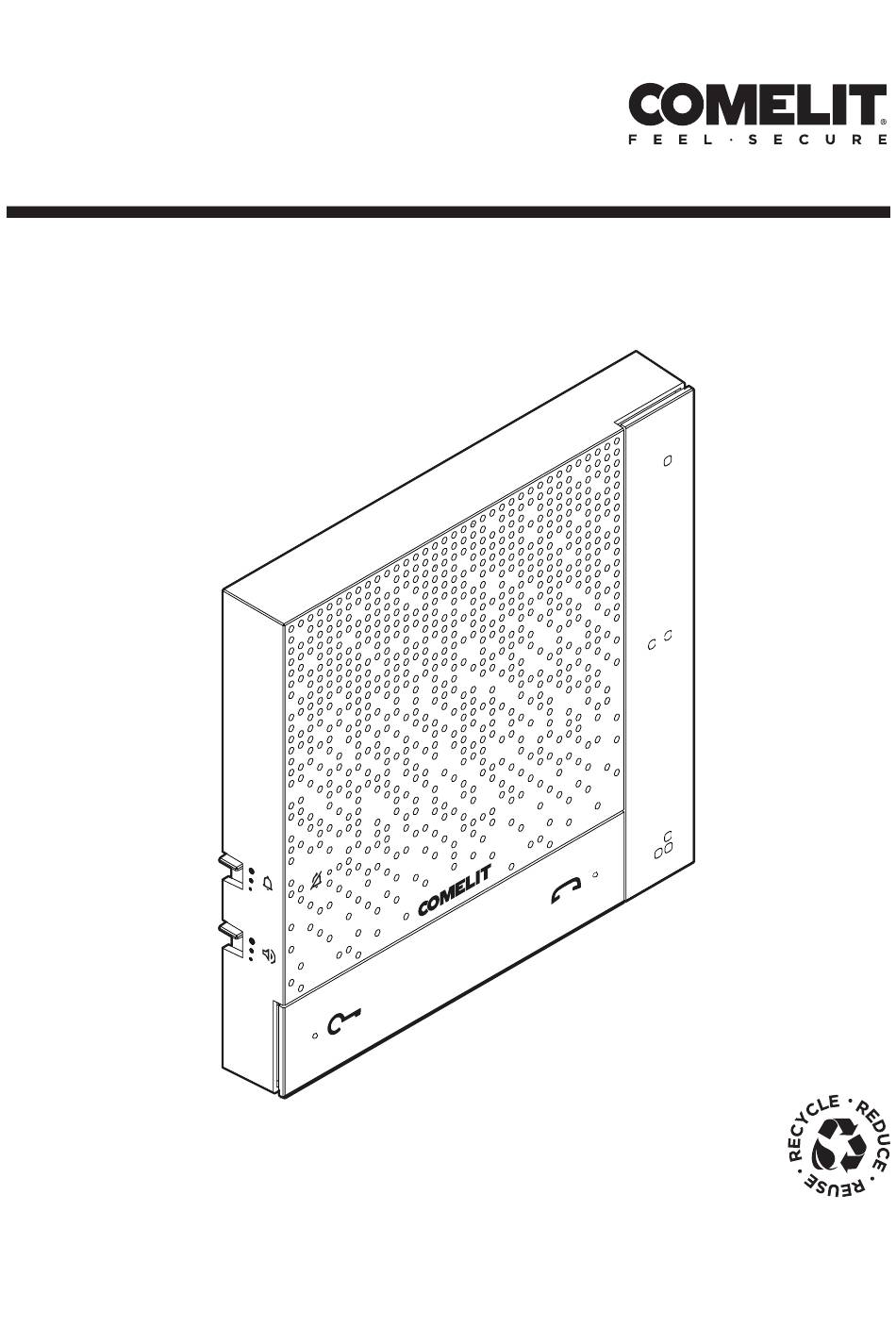

- Page 1 Sonus 6205W 6205B FULL TECHNICAL MANUAL Join us in taking care of our planet...
- Page 2 Sonus Hands-free Door-entry phone for ViP system Design-led door-entry phone for ViP system, with hands-free and electronic call. It features 5 buttons at the front, of which 2 have backlit icons identifying their factory-set functions (lock-release and call management) and 3 are programmable buttons.
-
Page 3: Table Of Contents
Table of contents Description Description of buttons Indicator LED Technical specifications Installation Disassembly Wiring diagram Reset procedure Restore network settings Restore factory settings Programming... -
Page 4: Description
Description 1. Two slide selectors, starting from the top: • 3-level selector switch for ringtone volume adjustment (high/medium/silent mode) • 3-level selector switch for audio volume adjustment (high/medium/low) 2. Status LED for “silent mode” 3. Two backlit call buttons 4. Three programmable buttons 5. -
Page 5: Indicator Led
Audio activation f Press the key to answer a call or end a call in progress Lock-release control f Press the key to activate the corresponding door lock Programmable key 1 f Press the key to activate the corresponding control Programmable key 2 f Press the key to activate the corresponding control Programmable key 3... -
Page 6: Technical Specifications
ELECTRICAL SPECIFICATIONS Type of power supply PoE Power supply voltage 37 to 57 VDC (ViP) PoE power supply Standard IEEE 802.3af (class 0), Comelit PoE (56 VDC) Absorption in standby 1.1W Absorption in standby in kit mode 1.1W Maximum absorption 2.9 W... - Page 7 NETWORK AND COMMUNICATION PROTOCOL LAN type Ethernet 10/100 Mbit/s IP address assignment DHCP, AUTO IP, static IP Operating system Linux (v. ) ENVIRONMENTAL AND CONFORMITY SPECIFICATIONS IP protection rating IP30 Operating temperature (°C) 5 to 40 Environmental class I (B1) RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6- CE certification 1:2007, EN 61000-6-3:2007+A1:2011), IEC/EN 62820-1-2...
-
Page 8: Installation
Installation Fixing points for use when installing in compatible boxes CLACK! -
Page 9: Disassembly
Disassembly... -
Page 10: Wiring Diagram
Wiring diagram The device is configured in DHCP mode by default, i.e. the DHCP server on the local network dynamically assigns an IP address. If a DHCP server is not detected, the device will automatically set an IP address using the Auto IP mode. -
Page 11: Reset Procedure
Reset procedure Restore network settings The device resets the network configuration to factory settings (DHCP + fallback in Auto Ip) and starts up. 1. Disconnect the power supply to the device. 2. Press and hold the reset button. 3. Reconnect the power supply »... -
Page 12: Programming
Programming The door-entry phone can be programmed via ViP Manager software. For programming details, please refer to the full programming manual, which is available at the following link: https://pro.comelitgroup.com/manuals/23676... - Page 13 CERTIFIED MANAGEMENT SYSTEMS w w w . c o m e l i t g r o u p . c o m 1st edition 09/2024 code 2G40003292 Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy REV 1° 03/2025...
