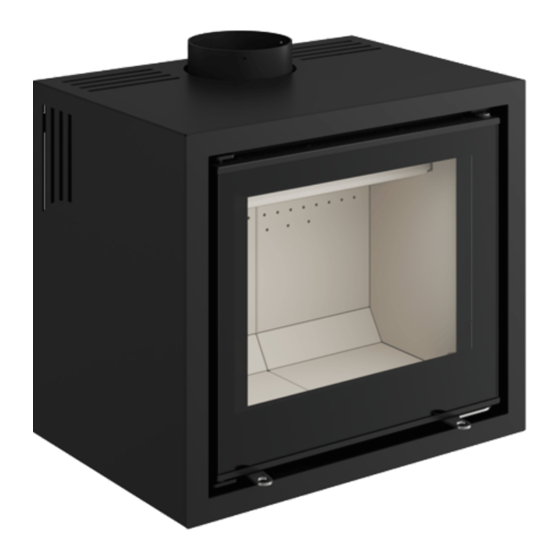

Spartherm STOVE-600 Installation And Operating Instructions Manual

Spartherm STOVE-600 Installation And Operating Instructions Manual

Modular freestanding stoves

Advertisement

Quick Links

Installation and Operating Instructions
MODULAR FREESTANDING STOVES
STOVE-600
STOVE-700
Save this manual and keep it in a safe place that it is easy to refer to it.
The Spartherm module stoves have been tested and certified by CSA based on
the following standards: UL-1482 & ULC S 627. EPA : U.S.ENVIRONMENTAL
PROTECTION AGENCY Certified to comply with 2020 emissionstandards using
cord wood.
1
Spartherm Feuerungstechnik GmbH
Maschweg 38 · 49324 Melle
Phone +49 5422 94 41-0
Fax +49 5422 9441-14
www.spartherm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STOVE-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spartherm STOVE-600

  • Page 1 Installation and Operating Instructions MODULAR FREESTANDING STOVES STOVE-600 The Spartherm module stoves have been tested and certified by CSA based on the following standards: UL-1482 & ULC S 627. EPA : U.S.ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 emissionstandards using STOVE-700 cord wood.
  • Page 2: Introduction And Unit Description

    INTRODUCTION AND UNIT DESCRIPTION standards using CORD WOOD.600 module 1.67 g/hr burning appliances from an adequate air supply. Safe Wood-Burning Practices S P A R T H E R M M O D U L A R F R E E S T A N D I N G 700 module 1.14 g/hr •...
  • Page 3: Table Of Contents

    U.S. ENVIRONMENTAL PROTECTION AGENCY Certified CONNECTOR PASS-THROUGHS CLEANING THE GLASS CERAMIC SHEET to comply with 2020 particulate emission stan- SAFETY INFORMATION dards using cordwood STOVE-600 1.67 g/hr and CHIMNEY INSTALLATIONS CARE OF PLATED PARTS 700 module 1.14 g/hr, Method 28R SAFE WOOD-BURNING PRACTICES...
  • Page 4: Installation Overview

    SPECIFICATIONS MODULAR FREESTANDING 1. INSTALLATION OVERVIEW STOVE-600/700: Spartherm Modular Freestanding Stove Stove-600 Stove-700 Weight of Module 178 lbs (81,5 kg) 334 lbs (151,5 kg) Module exterior: Width/depth/height 24 3/16“ 17“ 22 1/8“ 28 4/5“ 18 1/2“ 25 1/3“ (inches) Recommended amount of wood when...
  • Page 5: Introduction

    Sheet metal • Only doors / optional fronts certified with the unit • Do not install this wood stove module in a factory- The Spartherm modular freestanding stoves have been edges may be sharp. are to be installed on the appliance.
  • Page 6: Examples Of Identification Plates

    Particulate emission standards using cord wood Particulate emission standards using cord wood Particulate emission standards using cord wood Particulate emission standards using cord wood Model: Spartherm Cassette 700 Module Model: Spartherm Cassette 700 Module Model: Spartherm Cassette 600 Module Model: Spartherm Cassette 600 Module...
  • Page 7: Dimensions

    2.2 DIMENSIONS Stove-700 Stove-600 17” / 432mm / 424mm 18 1/2” / 470mm 24 3/16” / 615mm 28 4/5” / 732mm 22 1/8’’ / 562mm 25 1/3” / 644mm 6’’ / 152mm 6’’ / 152mm Example shown: 600 Example shown: 700...
  • Page 8: Specification

    Inches to millimeters (mm): 1’’ = 25.4 mm of restriction possible to enable the exhaust products The Spartherm modular freestanding stoves are not certified for gas log British Thermal Unit BTU/h to Watt: 1BTU/h = to easily flow through it. Chimney vent systems that CALIFORNIA PROP 65 WARNING: sets.
  • Page 9: Combustion Air

    2.6 COMBUSTION AIR 2.6.1 CONNECTION DIRECTLY TO THE UNIT When mounting the air system ensure that the air control system provides fresh air from the outside. In order for the air system to function, you have to ensure in the structure that no vacuum occurs in the housing. If convection To connect the separate combustion air directly to the unit you need to have the right separate combustion air grates are installed, be sure not to block them.
  • Page 10: Closure Valve

    CLOSURE VALVE PLEASE NOTE: COMBUSTION AIR INTAKE REQUIREMENTS. Please contact your dealer who offers suitable parts IS IN USE TO PREVENT ROOM AIR STARVATION WHICH for air inlet ducts (pipes and damper). CAN CAUSE SMOKE SPILLAGE AND AN INABILITY TO It is recommended that the 5”...
  • Page 11: Placement From Combustible Materials

    Failure to meet the required clearances can endanger property and personal safety. Valid for Stove-600/700. Important: Unit cannot use small base A on non combustible material - must be 9 1/2” off the floor from bottom of glass or 4 1/2”...
  • Page 12: Installations

    4. INSTALLATION 4.1.1 600 AND 700 4.1 HEARTH EXTENSION clearances description 8” / 203mm Canada each clearances side of unit WARNING 6” / 152mm USA 8” / 203mm hearth extension on t he rear side 16” / 406 mm for USA hearth extension length INSTALL THE HEARTH EXTENSION ONLY AS ILLUSTRATED! 18”...
  • Page 13: Combustible Wall Chimney Connector Pass-Throughs

    4.2 COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS METHOD A: 12” (304.8 MM) CLEARANCE TO COMBUSTIBLE WALL MEMBER: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent.
  • Page 14 METHOD C: 6” (152.4 MM) CLEARANCE TO COMBUSTIBLE WALL MEMBER: Starting with a minimum 24 gage (.024” [.61 mm]) 8” (203.2 mm) metal chimney connector, and a min- imum 24 gage ventilated wall thimble which has two air channels of 1” (25.4 mm) each, construct a wall pass-through.
  • Page 15: Chimney Installations

    4.3 CHIMNEY INSTALLATION 4.3.4 EX AMPLES OF T YPICAL INSTALLATIONS This wood stove is designed and approved for installation with the following brands of chimneys measuring 6” and 7” (152 and 178mm) in diameter as well as a minimum of 15’ (4,6m) and maximum of 45’ (13,5m) in height. straight chimney installation 4.3.1 LISTED CHIMNEYS This appliance must be installed with a listed 6”...
  • Page 16 rain cap chimney 10" less than 10 ft. strom collar flashing 10 ft. to nearest roofline roof minimum chimney height pitched roof recommended location wall or parapet recommended location marginal location location NOT recommended 10 ft. or more less than 10 ft. flat roof location NOT recommended This appliance must be installed with a listed 6“/153mm and 7“/178,5mm chimney system approvedunder...
  • Page 17: Convection

    5. FINISHING 4.4 CONVECTION 5.1 BRICKS AND BAFFLES INSTALLATION Circulation of convection air The convection air enters into the wood stove via the inlet WARNING at the bottom of the wood stove. The hot air for convec- tion comes out of the wood stove via the front outlet and the top outlet.
  • Page 18: Door Removal/Installation

    5.2 DOOR REMOVAL / INSTALLATION WARNING BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND/OR CHIMNEY FIRE. DO NOT STRIKE OR SLAM DOOR. NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
  • Page 19: Operation

    “COMBUSTION AIR” in such a CHAMBER CREATING A FIRE HAZARD TO YOUR Your Spartherm product is designed with the most firebricks have been heated thoroughly and the chim- way that you have a fire that burns clean and well.
  • Page 20 Caution: A - Air supply open: DOOR ASSEMBLY - SPARE PARTS. Never close the air lever of the air control completely (when lighting the fire or or before the fire has started to burn efficiently as adding new wood). The ROBAX 4MM CERAMIC GLASS.
  • Page 21: Fire Extinguishers/Smoke Detectors

    6.1 FIRE EXTINGUISHERS / SMOKE 6.3 LIGHTING A FIRE the firebox or, if not present, to 50% of the fireboxes Firewood should be split, stacked in a manner that air DETECTORS backside height and burn at a medium low setting. can get to all parts of it and covered in early spring to The whiteness of the bricks and the cleanliness of the be ready for burning that fall.
  • Page 22: Flash Fire

    7. MAINTENANCE The correct setting is always based on experience and the main door. Shovel some ashes out through the door into a metal the current local conditions. C. Overfilling your appliance. Go by the following container with a tight fitting lid. Leave an ash bed 13.
  • Page 23: Chimney Cleaning

    DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO and cleaned at least once a year. NOT OPERATE APPLIANCE WITH GLASS REMOVED, All Spartherm modules are supplied with Robax glass IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FUR- For serious wood burners, chimney cleaning must be CRACKED, BROKEN OR SCRATCHED.
  • Page 24: Exploded View

    • Not enough air? Ensure air control is fully open. Also ensure that the air opening is not obstructed. Spartherm Feuerungstechnik GmbH gives a 5-year Wood burns • Air control may need to be adjusted down. warranty on: too fast.
  • Page 25: Requirement Of Effectiveness For The Warranty

    Your specialist dealer/contractor will gladly advise and assist you in matters not covered by our warranty If such proof is not produced Spartherm Feuerung- terms and conditions and undertakings. We particu- stechnik GmbH shall not be obliged to honour the larly advise you to have your wood stove module/ warranty.
  • Page 26: For Your Information

    10.6 FOR YOUR INFORMATION...
  • Page 27: Service History

    11. SERVICE HISTORY Appliance Service History This heater must be serviced annually depending on usage. Date Dealer Name Service Technician Name Service Performed Special Concerns...
  • Page 28 SPARTHERM THE GLOBAL BRAND FOR YOUR LIVING ROOM Your specialist dealer Spartherm Feuerungstechnik GmbH · Maschweg 38 · 49324 Melle Phone +49 5422 9441-0 · Fax +49 5422 9441-14 · www.spartherm.com...
