Smarthome ControLinc Maxi 4071 Quick Start Manual

Quick-Start Guide
X10 TABLETOP CONTROLLER
ControLinc Maxi (#4071)
TM
The ControLinc Maxi is a simple yet powerful controller for your X10 system.
N N e e e e d d H H e e l l p p ? ? F F o o r r a a s s s s i i s s t t a a n n c c e e c c a a l l l l y y o o u u r r f f r r i i e e n n d d l l y y s s u u p p p p o o r r t t
p p e e r r s s o o n n @ @ 8 8 0 0 0 0 -S S M M A A R R T T H H O O M M E E ( ( 8 8 0 0 0 0 -7 7 6 6 2 2 -7 7 8 8 4 4 6 6 ) )

Set Up Your ControLinc Maxi to Control an X10 Address Remotely

S S t t e e p p 1 1 . .
Plug the ControLinc Maxi into an unswitched wall outlet.
S S t t e e p p 2 2 . .
Choose the X10 addresses you would like to control (e.g. A1).
S S t t e e p p 3 3 . .
With the cover closed, press and hold the DIM and ON buttons for 3 seconds, until the sounder is heard
and the Status LED begins blinking.
Your ControLinc Maxi is now in Setup Mode; you have 30 seconds to complete Step 6.
S S t t e e p p 4 4 . .
On your ControLinc Maxi, press the ON button of the channel to be programmed.
S S t t e e p p 5 5 . .
Open the cover and select a House Code (Buttons A through P).
S S t t e e p p 6 6 . .
Select a Unit Code (Buttons 1 through 16).
The ControLinc Maxi will beep, and the Status LED will stop blinking.
S S t t e e p p 7 7 . .
Test the address by closing the cover and press the ON and OFF buttons several times to make sure
everything is working properly.
S S t t e e p p 8 8 . .
Repeat for the other channels as desired.
Congratulations! You Can Now Remotely Control Your X10 Device.

Using your ControLinc Maxi - Closed Cover

Five sets of ON/OFF buttons are used to control your devices.
Press the ON button to turn your lamp or appliance on.
Press the OFF button to turn your lamp or appliance off.
Press and hold the ON button to brighten your lamp.
Press and hold the OFF button to dim your lamp.
Main ON and OFF buttons control all of your lamps assigned to the 5 channels above.
Press the Main ON button to send ON commands for all five channels.
Press the Main OFF button to send OFF commands for all five channels.
BRIGHT and DIM buttons control the brightness of your lamps (affects the last X10 address controlled).
Press and hold the BRIGHT button to brighten your lamps.
Press and hold the DIM button to dim your lamps.
Smarthome Limited Warranty
Smarthome warrants to the original consumer of this product that, for a period of two years from the date of purchase, this product will be free from defects in material and workmanship and will perform
in substantial conformity to the description of the product in the owner's manual. This warranty shall not apply to defects or errors caused by misuse or neglect.
© Copyright 2005 Smarthome, 16542 Millikan Ave., Irvine, CA 92606-5 5 027
800.SMART.HOME - 949.221.9200 - www.smarthome.com

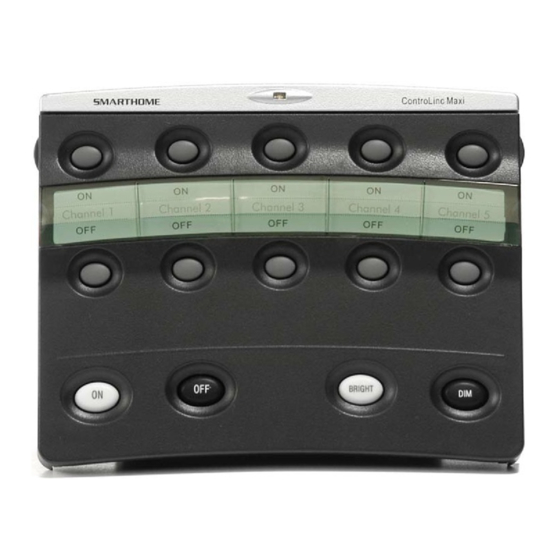

Status LED
Main ON/ OFF Buttons
ON/OFF
Buttons
BRIGHT/DIM
Buttons
