Install the AWG-HD into a system
4
1. Connect the AWGSYNC01 and AWG70001s.
2. Refer to the instructions in the AWGSYNC01 Safety and Installation Manual
to configure the Master and Slave units.
3. Connect the AWG-HD, DPO70000, and needed adapters and other equipment,
depending on your use case. (See Figure 1.) and (See Figure 2.)
4. Check that all instruments are on the same network switch to ensure proper
operation.
5. Identify all instruments through your VISA resource manager as follows
before discovering the instruments using TekExpress.

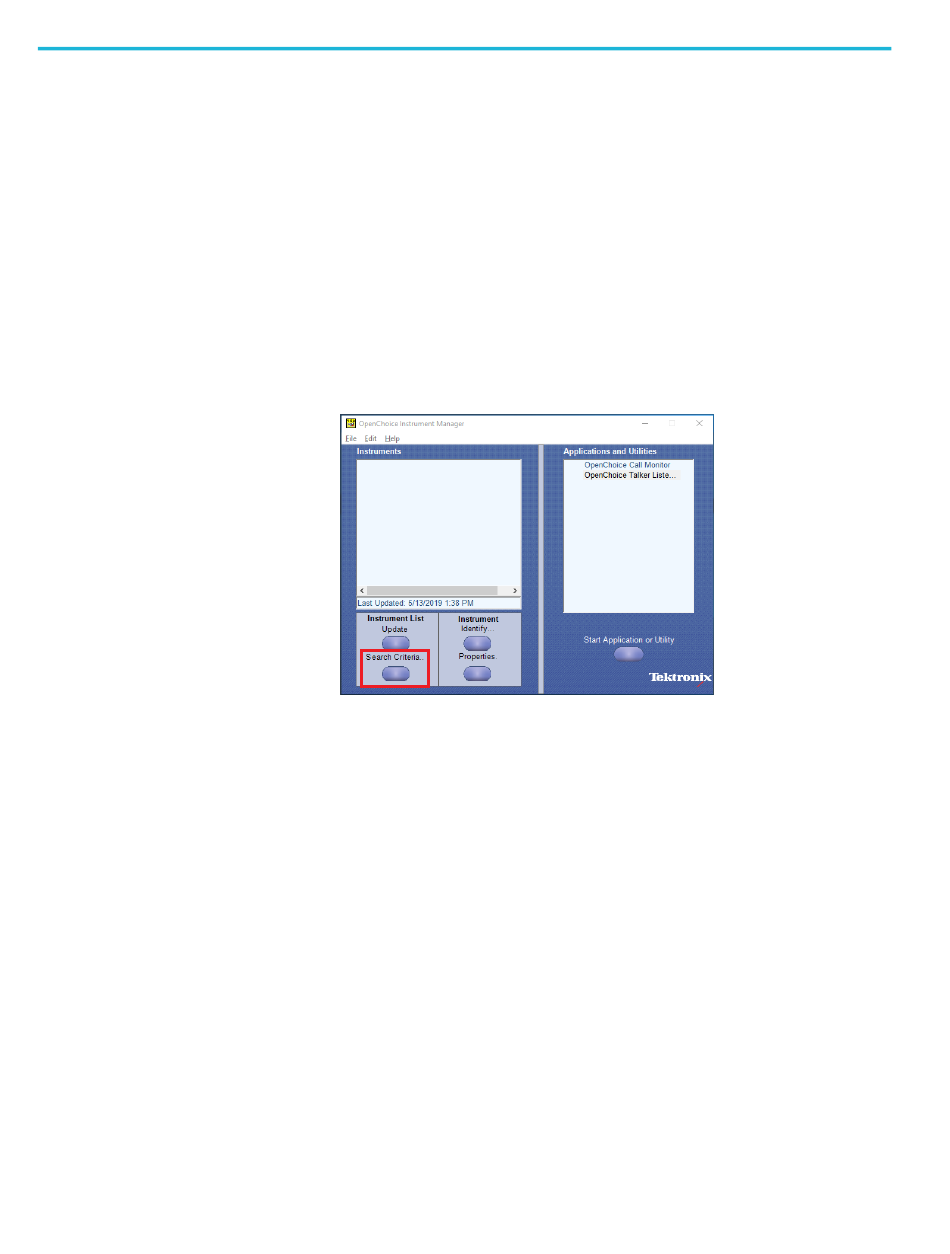

a. Launch TekVISA OpenChoice Instrument Manager and click the Search
Criteria button.
