Tuning Stability Starts Here
Thank you for choosing the Hipshot® Tuner Upgrade Kit
for your guitar. The Hipshot® Universal Mounting
Plate™ system makes installation a breeze and keeps your
guitar in vintage condition so its value doesn't diminish.
Happy playing!
1
Remove your old tuners
and bushings. Clean o your
headstock with a soft cloth.
2

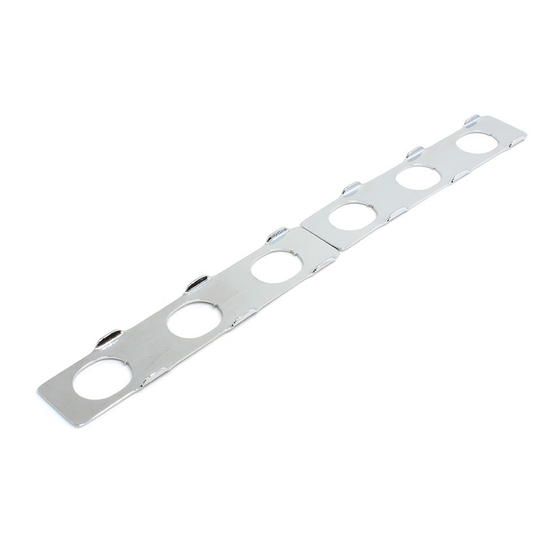

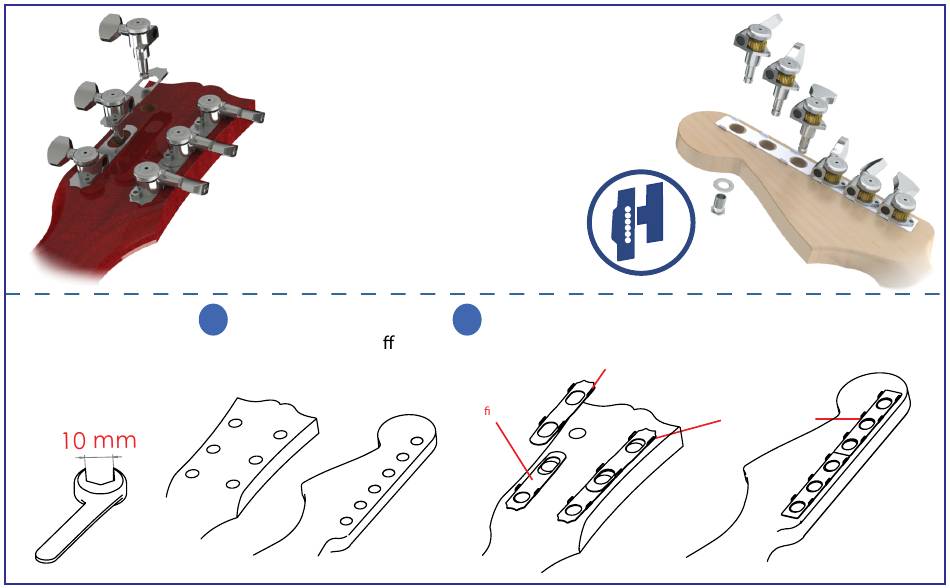

Arrange the Universal Mount Plates on your headstock
as shown.
Big plates have
2 sets of tabs.
Small plates have
Place them over
1 set of tabs.
the small plates.
Place them
down rst.
3+3 Headstock
®
Position the plates
so that the tabs are
above the holes
as shown.
6 Inline Headstock
