Hipshot KickAss Quick Manual

The New Tradition Starts Here
®

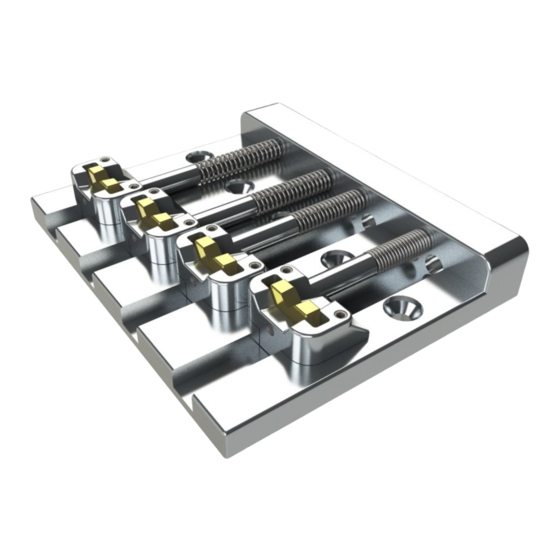

Thank you for choosing the Hipshot® KickAss™
for your bass. Designed with unprecedented
adjustibility and customization of tone, it will
bring new dimensions to your playing.
B

Required Tools:

• #2 phillips screwdriver
• .050" hex key (included)

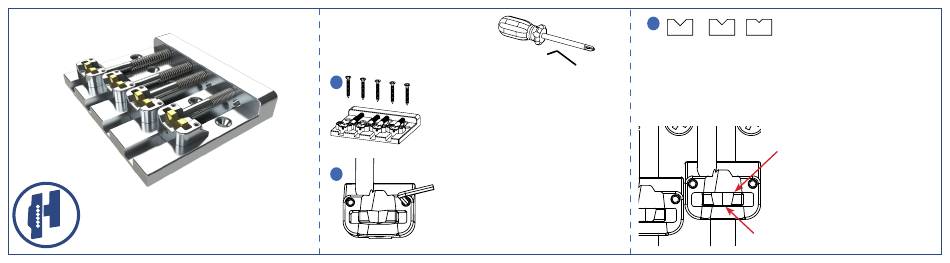

Install the bridge on your bass using
1
the supplied screws.
Note: The hole pattern of the KickAss™ is designed
to retrofit a traditional 5 hole mount. Please
compare your bass to the dimensional drawing at
www.HipshotProducts.com.
A String up your bass then adjust
2
your string height by turning the
height adjust screws with the
