Hipshot Kickass 4 Instructions

The New Tradition Starts Here
KickAss™ 5
Mounting Hole Style I
KickAss™ 4
(Classic)

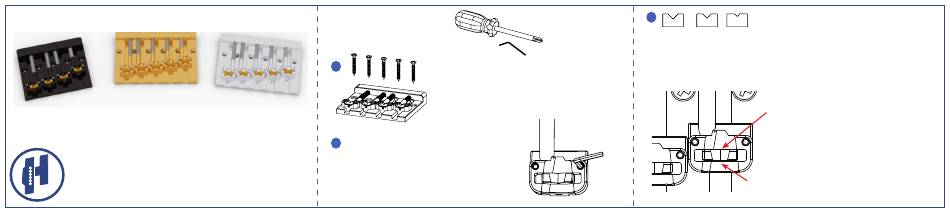

® Thank you for choosing the Hipshot®KickAss™ for your
bass. Designed with unprecedented adjustability and
customization of tone, it will bring new dimensions to
your playing.
B

Required Tools:

• #2 phillips screwdriver
• .050" hex key (supplied)
1
KickAss™ 5
Mounting Hole Style II
(Squier®* Retrofit)
String up your bass and then adjust
2
A your string height by turning the
height adjust screws. Be sure to
adjust both screws the same amount.
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
NEXT ASSY USED ON
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
APPLICATION
Install the bridge on your bass using the
supplied screws.
Note: Please compare your bass to the dimensional
drawings at www.HipshotProducts.com to check for
proper fit before installing.
UNLESS OTHERWISE SPECIFIED:
NAME DATE
DRAWN
DIMENSIONS ARE IN INCHES
TOLERANCES: TITLE:
CHECKED
FRACTIONAL
ANGULAR: MACH BEND
ENG APPR.
TWO PLACE DECIMAL
THREE PLACE DECIMAL
MFG APPR.
INTERPRET GEOMETRIC Q.A.
TOLERANCING PER:
COMMENTS:
MATERIAL SIZE DWG. NO.
A #2 screw driver
FINISH
B
There are 3 different inserts included
3
with the KickAss™. Low inserts have red
Low Med Tall
spots and are installed on the 3rd & 4th
(red spot) (blue spot) (no spot)
strings. Med inserts have blue spots and
are installed on the 1st & 2nd. Tall inserts are also included to give
greater range of height adjustment.
Back side of
groove is wide
The insert groove has a slight
downward angle for string relief.
When installed correctly, the
A
saddle groove should flare out in
the back (as shown).
Front side of
REV
groove is narrow
