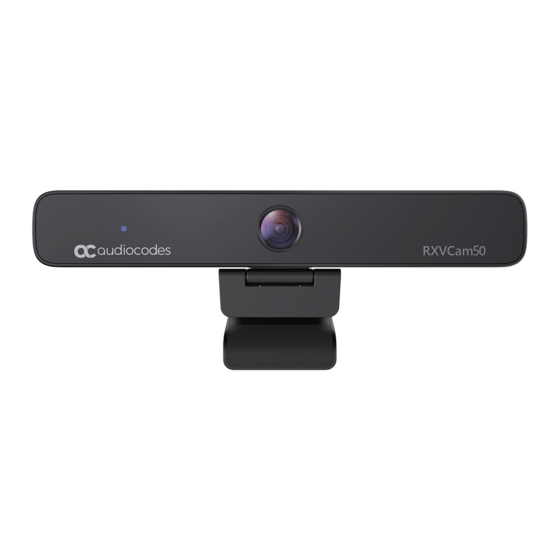

AudioCodes RXVCam50 User Manual
Ai 4k uhd video conference camera
Hide thumbs
Also See for RXVCam50:
- Deployment manual (34 pages) ,
- User manual (16 pages) ,
- Deployment manual (45 pages)
Subscribe to Our Youtube Channel
Related Manuals for AudioCodes RXVCam50
Summary of Contents for AudioCodes RXVCam50

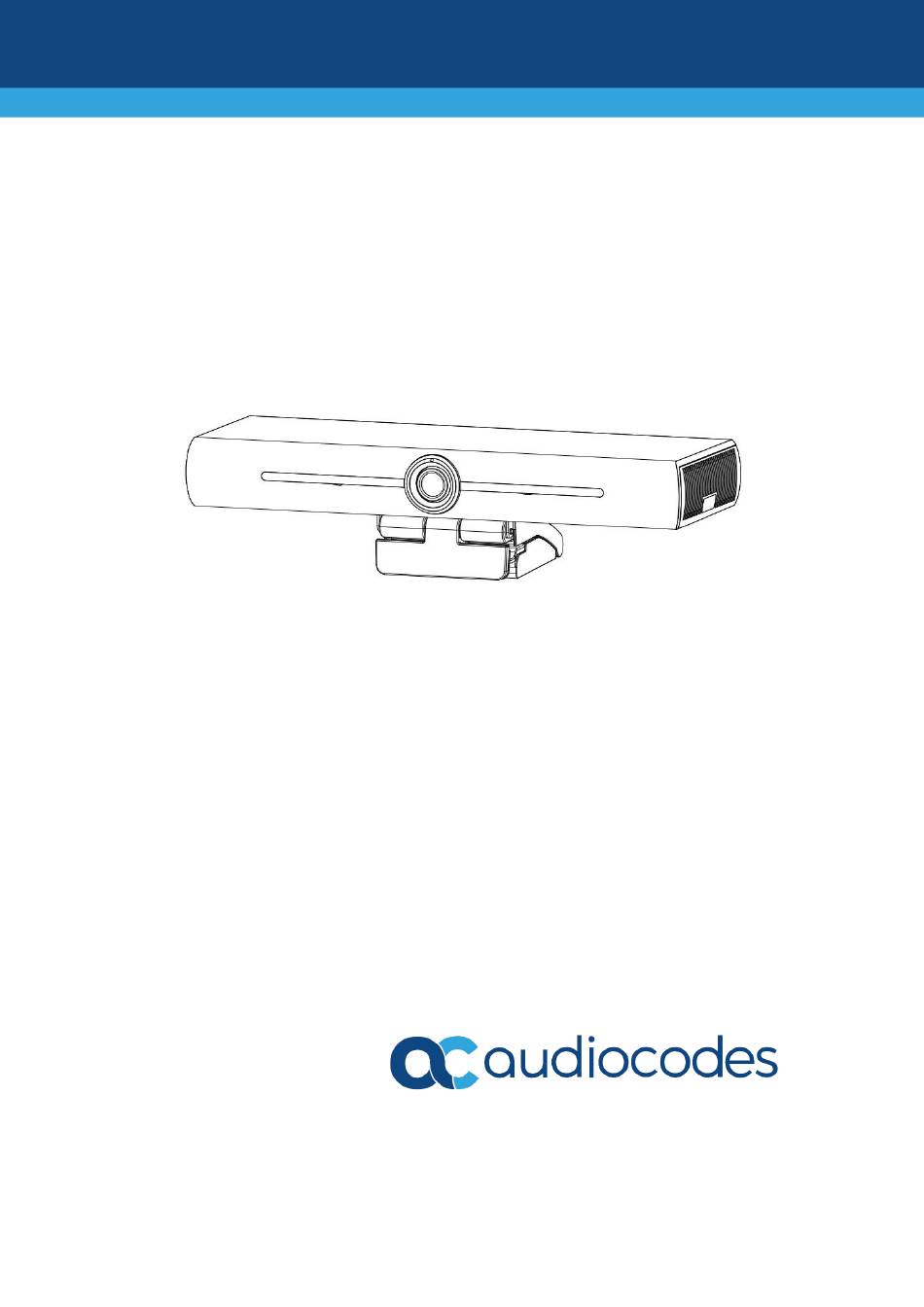

- Page 1 AI 4K UHD Video Conference Camera RXVCam50 User Manual This guide provides a brief introduction to the AI 4K UHD Video Conference Camera functions, installation and operations. P a g e...
-
Page 2: Safety Precautions
This product should be placed on a stable desktop or other horizontal surface. Do not Safety Precautions install the product obliquely, otherwise it may display an inclined image. This manual introduces functions, installation and If the camera is installed on TV or operations for the camera in details. -
Page 3: Quick Installation Instructions
Quick Installation Instructions The figure below illustrates the camera interface. Camera Interface Camera lens Bracket Tripod fixing hole Positioning hole USB 3.0 output interface Camera Operation Product Installation: Fix the device on an LCD screen, on top of a computer; place it on a desk top, or on a tripod mounting. -
Page 4: Product Overview
Product Overview Product Model: RXVCam50 Camera Dimensions: Accessories: User Manual Wireless remote controller USB3.0 Type-A to Type-B, 10FT cable 2 * AAA batteries P a g e... -
Page 5: Main Features
Main Features This product is a new 4K UHD ePTZ video conference camera includes built-in AI functions which can automatically centrally frame all people in a meeting. It also includes perfect functionality and high performance with advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. -
Page 6: Specifications
Specifications Parameter Description Camera Image Sensor 1/2.5-Inch-High Quality 4K CMOS Sensor Effective Pixels 8.28MP 16:9 Video output port 1* USB3.0, Type B, support audio output over USB3.0 View Angle 126°(D)/120°(H)/85°(V) Video Format Main stream: 3840×2160@30fps、1920×1080P@30fps/25fps、 1280×720P@30fps/25fps, etc. Sub-stream:1280×720P@30fps/25fps 、640×480P@30fps/25fps； ... - Page 7 Parameter Description communication UVC, UAC protocol PTZ control Support EPTZ Hardware 2.4 GHz Intel@ Core 2 Duo processor or higher requirement 2GB RAM or more USB 2.0/USB3.0 port (USB 3.0 is needed for 4K video) Other Parameters Input Voltage Input Current 1A(Max.) Power...
-
Page 8: External Interface
Interface External Interface The external interface connections are displayed in the figure below: Interface Diagram P a g e... -
Page 9: Wireless Remote Controller
head will automatically point to the specified preset 0 position. Application Camera Address Selection: Selects the camera addresses 【1】 【2】 【3】and Wireless Remote Controller 【4】(for this camera, only 【1】is used). Number keys: Set or call 0-9 presets. Focus Control key: 【FOCUS +】: Focus In ... -
Page 10: Basic Operations
Not in Use. Camera Selection: Select the camera address to control. Not in Use. Key Combination Functions: 【#】+【#】+【#】: Clears all presets Pan/Tilt Control 【*】+【#】+【6】: Restores factory defaults Basic Operations Pairing the Wireless Remote Controller with Camera press Connect the camera to PC using USB3.0 Type- Down: press... -
Page 11: Exposure Settings
Zoom Control: MENU Press【ZOOM +】: Zoom In ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Press【ZOOM -】: Zoom Out English Language Press and hold one of these keys; the camera Image Style Default zooms in or out and stops zooming as soon as （Exposure） one of the keys is released. （Color）... -
Page 12: Color Settings
EV: On/Off (only available in auto mode) Color Settings Compensation Level: -7~7 (only available in In the Menu, move the pointer to COLOR, click the auto mode when EV is ON) 【HOME】and enter the (COLOR SET) as follows: BLC: ON/OFF for options (only available in ... - Page 13 Image Settings FOCUS In the Menu, move the pointer to IMAGE, click 【HOME】and enter the (IMAGE) as follows: ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone Center IMAGE AF-Sensitivity ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Focus Mode: Auto, manual, one-push Sharpness AF-Zone: Up, middle, down, overall ...
-
Page 14: Restore Default
Auto Framing Settings Restore Default In the Menu, move the pointer to AUTO RESTORE DEFAULT FRAMING, click 【← →】keys to set ON/OFF. ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Auto Framing ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ [↑↓]Select [← →]Change Value [↑↓]Select [← →]Change Value In the Main Menu, move the pointer to RESTORE DEFAULT, click 【HOME】... -
Page 15: Maintenance And Troubleshooting
Remote Controller does not work Maintenance and Set the camera address to 1 (the camera Troubleshooting address is restored to 1 after restoring default settings). This section describes maintenance and Repeat the pairing procedure between the troubleshooting. Wireless Remote Controller and the camera. Maintenance Replace the AAA batteries. -
Page 16: Customer Support
Website: https://www.audiocodes.com/ Copyright Statement ©2021 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your All the contents in this manual and its copyright Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, are owned by the company.
