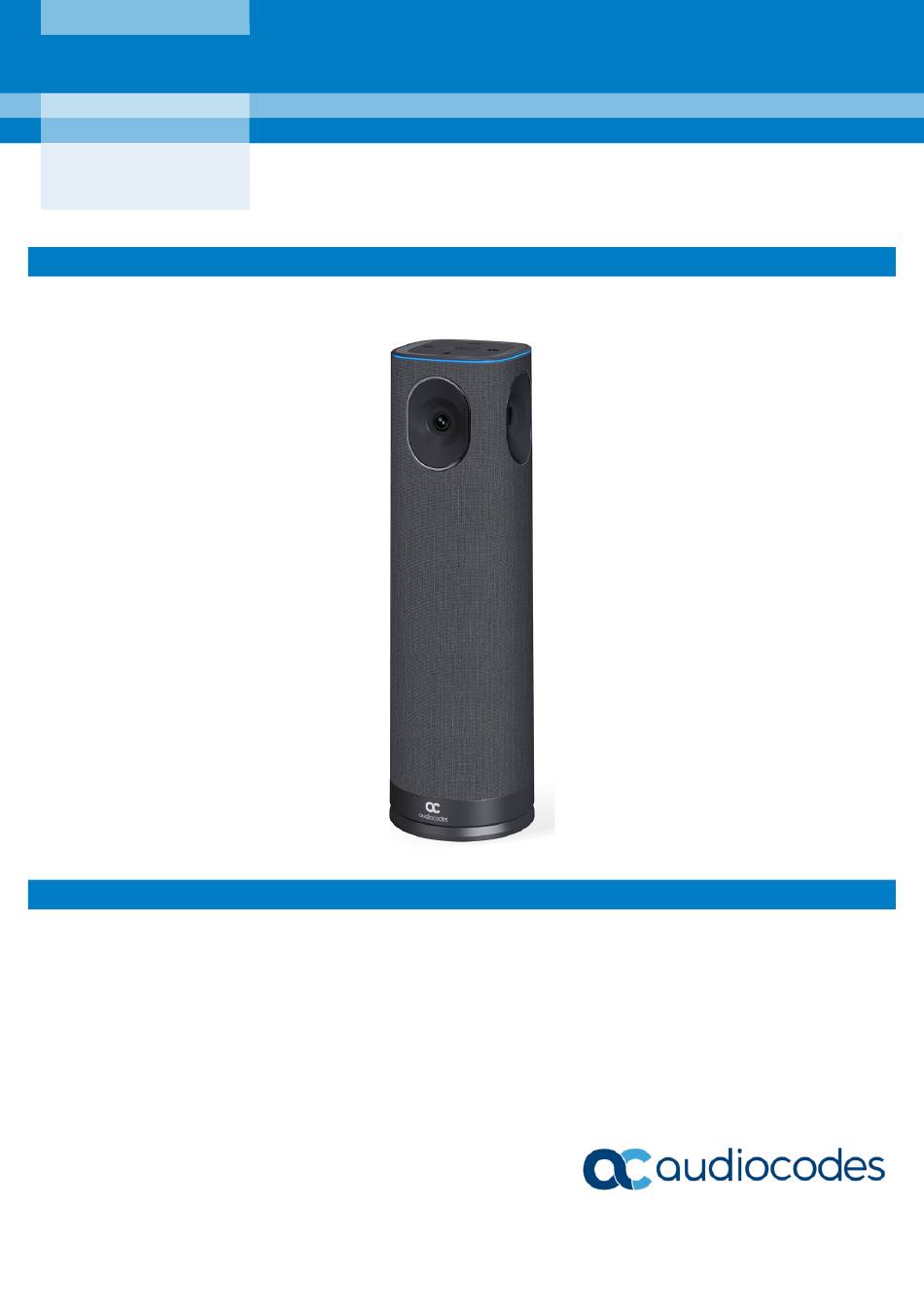

AudioCodes RXVCam360 Video Conferencing Camera
Welcome
Congratulations on purchasing your AudioCodes RXVCam360° Video Conferencing Camera!
Checking Package Contents
Before installing your RXVCam360, make sure these items are included in your shipped box:
USB Cable×1
Remote Control (RC)×1
Power Adapter×1
Power Adapter Plug×5
Quick Guide
P a g e
| 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RXVCam360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes RXVCam360

Summary of Contents for AudioCodes RXVCam360

  • Page 1 AudioCodes RXVCam360 Video Conferencing Camera Quick Guide Welcome Congratulations on purchasing your AudioCodes RXVCam360° Video Conferencing Camera! Checking Package Contents Before installing your RXVCam360, make sure these items are included in your shipped box: USB Cable×1   Remote Control (RC)×1 ...
  • Page 2  To connect RXVCam360 to RXV200 + RX-PAD: nnect the power adapter to RXVCam360 and then press the power button to switch on the device; the ring light lights up and the running light indicates the device is booting up. A prompt tone is played when boot-up is complete.
  • Page 3 You can alternatively select camera mode using RXVCam360’s Device button -OR- the RC’s Mode Switching button. Connecting RXVCam360 to PC/Laptop Connect RXVCam360 to PC/laptop using the figure below as reference: P a g e...
  • Page 4  To connect RXVCam360 to PC/laptop: nnect the power adapter to the RXVCam360 camera and then press the power button to switch on the device; the ring light lights up and the running light indicates the device is booting up. A prompt tone is played when boot-up is complete.
  • Page 5 Use the following table as reference to the preceding figure. Item Description Power button Turn on/off the camera Discussion mode button Mode switching (Panoramic/Close-Up/Speaker Tracking/Discussion/Smart Gallery mode) Smart Gallery mode button Up arrow key Adjust upward Down arrow key Adjust downward Left arrow key Adjust leftward Right arrow key...
  • Page 6 Choosing Operational Mode Choose one of five available Operational Modes. Use the table below as reference. Recommended  Automatically identifies 1-8 people  Puts each in a dedicated frame  Maximum: 8 frames  Smart Gallery When a person moves, the camera automatically tracks and keeps their ...
  • Page 7 360° panoramic high-definition view  This mode does not have AI functions  Panoramic Mode RXVCam360 follows the active speaker and automatically switches from the previous speaker to the next speaker within three seconds. Speaker Tracking Mode P a g e...
  • Page 8 This function is available due to direction-of-arrival (DOA) sound sourcing positioning recognition, and displays the person speaking in full screen. The speaker will be changed with the current speaker within three seconds automatically. Voice Tracking Mode The lowermost panel displays a 360° panoramic view. ...
  • Page 9 Select an area to focus on  Use the RC to zoom in and out (five levels) and move up, down, left and  right to select a focused area. The selected area has a fixed 16:9 aspect ratio.  Manual Mode* This mode does not have AI functions.
  • Page 10 Monitoring Camera Status Status Description Light ring [Boot-up] After the white lights fully lights up, a blue running light appears until boot-up is complete. [Shut-down] The blue light gradually goes off after all of them light [Volume adjustment] The blue lights indicate the volume level. [DOA] The direction indicator shows the blue light.

  • Page 11: Configuring Camera Settings

    Status Description Mode switch Short-press for the white light to flash and switch between modes.  Wireless [RC wireless connection] Press and hold the RC’s wireless connection connection button for eight seconds and the RC’s wireless connection button for three seconds to enter RC pairing mode; the white light flashes fast;...
  • Page 12 Website: https://www.audiocodes.com/ ©2024 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
