Summary of Contents for Arec LS-860

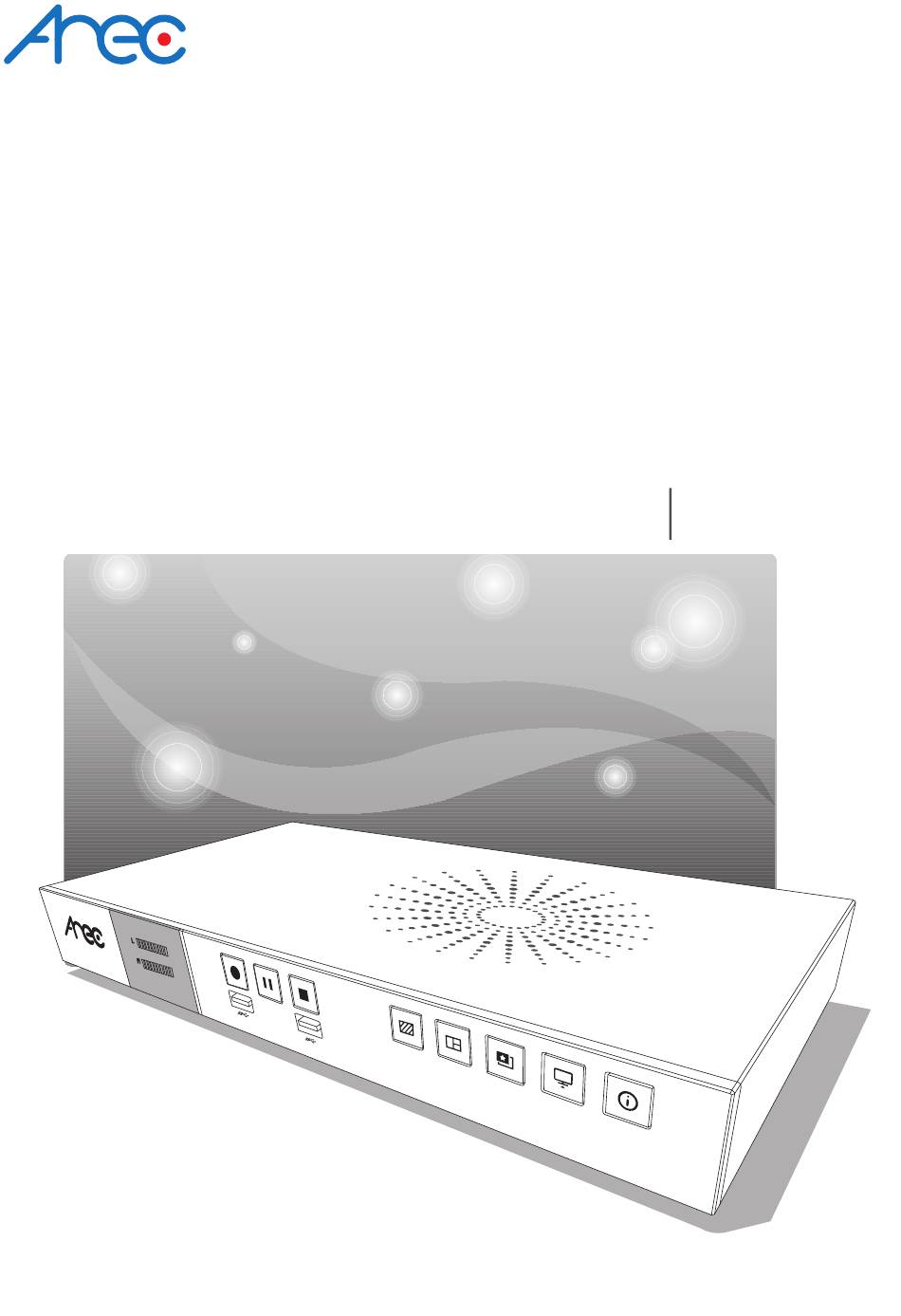

- Page 1 LS-860 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary...
- Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 3 LS-860 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications
LS-860 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC LS-860 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution. -
Page 5: Product Appearance
Control the Record, Pause, Stop function Front USB port 1 For external USB storage device NOTE: The LS-860 can detect and record to USB storage devices using FAT32, NTFS, Ext3, Ext4, exFAT file systems. Front USB port 2 Connect mouse, keyboard... - Page 6 LS-860 Quick Installation Guide Connection USB mouse microphone USB Keyboard AREC amplifier USB Storage Speaker Network Camera Line / Mic audio input Audio output RS-232 Power RS-232 HDMI video input HDMI video output External Control Systems notebook document cam network...
-
Page 7: Getting Start
Connect PC to LS-860, your device is added the segment and the segment is consistent with the IP address of the LS-860. Get IP address from About option in Setup item of the host output interface main menu and input it in the Browser page. - Page 8 LS-860 Quick Installation Guide Setup Step 1: Set up video input name, video source, PTZ control in [ Video inputs ] of [ Media I/O The Capture source can be the video port [ ] and [ ] with HDMI.
- Page 9 LS-860 Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System Getting start a recording Start a recording from the front panel Select the layout/ background before getting start.
- Page 10 LS-860 Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [System Administration] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
- Page 11 LS-860 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
- Page 12 AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2020.5.1 Version : 5.2...
