Arec LS-300 Quick Installation Manual

Media station
Hide thumbs Also See for LS-300:

Advertisement

Quick Links

Download this manual See also: User Manual

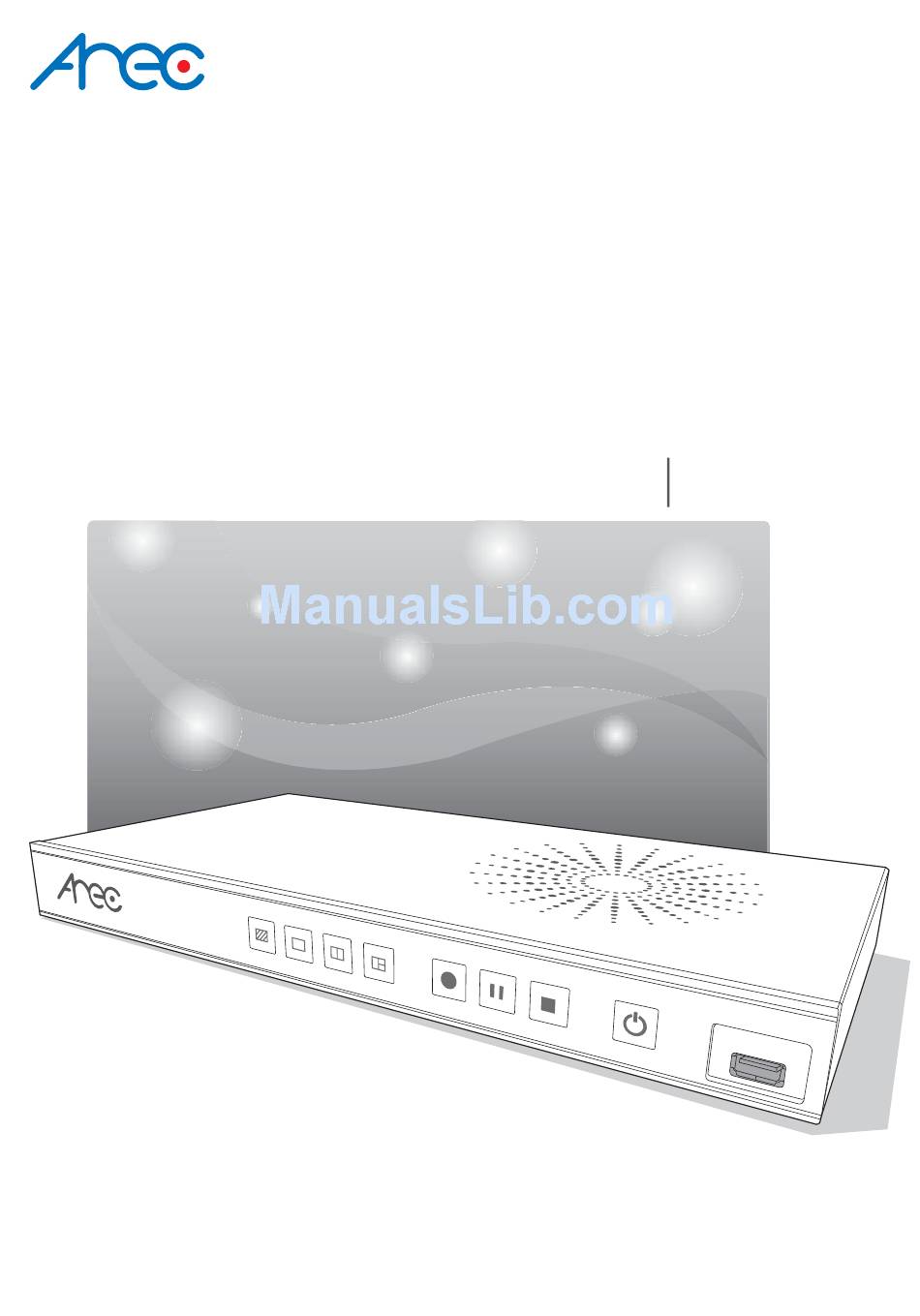

LS-300
Media Station
Quick Installation Guide
ENGLISH
AREC Inc.© All Rights Reserved 2017. l www.arec.com
All information contained in this document is Proprietary

Advertisement

loading
Need help?

Need help?

Do you have a question about the LS-300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arec LS-300

Summary of Contents for Arec LS-300

  • Page 1 LS-300 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2017. l www.arec.com All information contained in this document is Proprietary...
  • Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 3 LS-300 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...

  • Page 4: Specifications

    LS-300 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC LS-300 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution.

  • Page 5: Product Appearance

    RJ-45 Ethernet connector for device configuration and control RS-232 Captive screw connector for control over RS-232 Reset button Restoring devices to its factory default state NOTE: The LS-300 can detect and record to USB storage devices using FAT32, NTFS file systems.
  • Page 6 LS-300 Quick Installation Guide Connection projector Setting PC AREC Speaker Network Camera Power Video output VGA / HDMI Audio output RS-232 Audio input Video input VGA / HDMI RS-232 amplifier microphone USB drive notebook document cam network...
  • Page 7 LS-300 Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator with default username admin and password admin, then entering System Administration webpages.
  • Page 8 LS-300 Quick Installation Guide Setup Step 1: Set up video input name, video source, PTZ control in [ Video inputs ] of [ Media I/O The Capture source can be the video port [ ] and [ ] with option VGA or HDMI. If only one of the latter is connected, the system would detect and automatically switch to source of signal.
  • Page 9 LS-300 Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System Getting start a recording Start a recording from the front panel Select the layout/ background before getting start.
  • Page 10 LS-300 Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [System Administration] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
  • Page 11 LS-300 Quick Installation Guide Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use. 2.There are no switches or adjustment buttons required for operation inside this product, so...
  • Page 12 AREC Inc.© All Rights Reserved 2017. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2017...
