VECTOR DOCK
D E V I C E I G N I T I O N & D O C K B E H A V I O U R
• The Vector Dock is designed to improve
efficiency of use in the field
• Turning the dock on with devices connected
enables device ignition mode
• Device data download is enabled in
Ignition mode
• Devices will start recording when removed from
the dock
• When devices are re-connected to the dock,
they will stop recording and return to
Ignition mode
• Device data download is enabled in
Ignition mode
• When dock is turned off, devices will also
turn off
• Dock will shutdown automatically after a period
of inactivity to conserve battery power
• Full dock functionality can be used on mains or
battery power
V E C T O R U S E R G U I D E
I N D I C A T O R S
Power Status
• On Battery Power - Green > 30min remaining,
Red - Low power < 30min remaining
• On Mains Power - Red - Charging,
Green - Fully Charged
Data Connection
• Green (slow flash) - Dock connected to
PC and communicating
• Green (fast flash) - Dock connected to
PC and transferring data
9
1
2
3
4
5
6

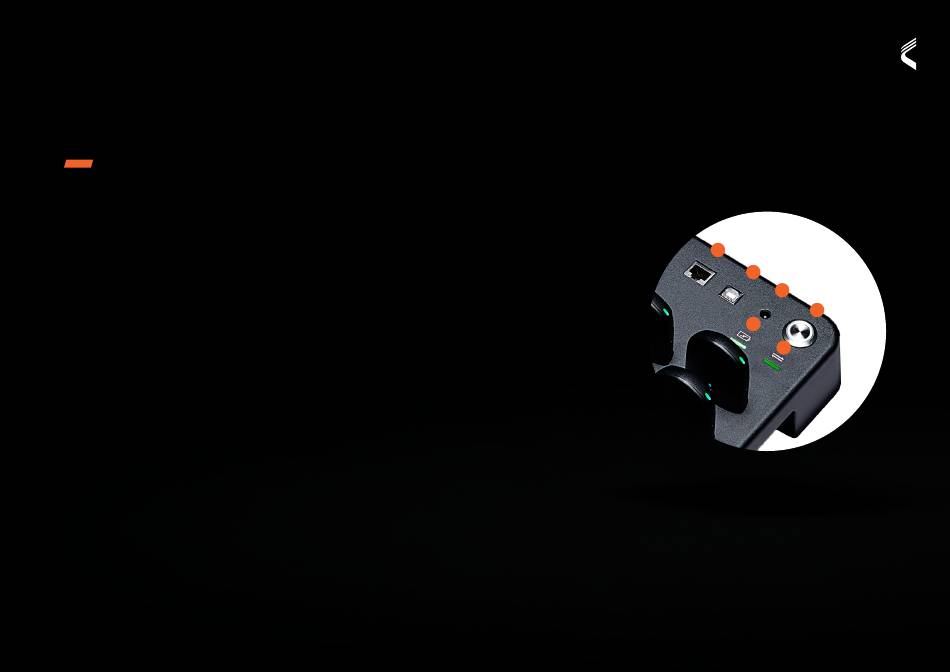

1 . E T H E R N E T
2 . U S B
3 . P O W E R I N P U T
4 . P O W E R B U T T O N
5 . B A T T E R Y
6 . N E T W O R K
