Summary of Contents for Catapult Vector

  • Page 1 F O L I O N A M E LOREM IPSUM USER GUIDE...
  • Page 2 V E C T O R CONTENTS H A R D W A R E V E C T O R R E C E I V E R V E C T O R I P A D I N S T A L L A T I O N & S E T U P V E C T O R M O B I L E S O F T W A R E &...
  • Page 3 V E C T O R R E C E I V E R The Vector Receiver is the hub for live data capture. In addition to a standalone receiver, Vector can be used with a multiple receiver setup for total field coverage and an improved live experience.
  • Page 4 Prepare athlete data - manage drills, player participation etc. • Analyse high frequency athlete data, including velocity & heart rate traces OpenField Cloud is the Catapult web platform Key functions • Analyse session data & generate reports • Analyse longitudinal data & individual athlete data •...
  • Page 5 Vector Receiver via WiFi, enabling access to live data for the entire team without a computer. Vector for iPad can be downloaded from the App store. V E C T O R S M A R T P H O N E A P P...

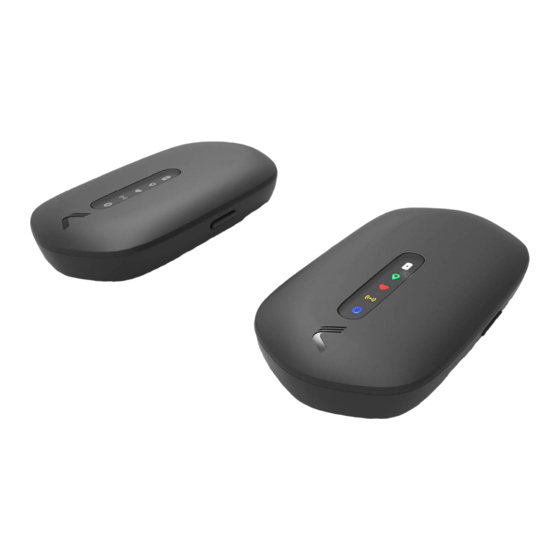

  • Page 6 V E C T O R VECTOR DEVICE F U N C T I O N S • Power ON & OFF - Press & hold power button for 2 & 5 seconds respectively • Sensors - GPS, LPS, Inertial & Heart Rate •...
  • Page 7 U S I N G T H E V E C T O R D E V I C E • Ensure Vector devices are charged prior to use • Place all Vector Devices in Vector Dock and press the dock Ignition button to turn devices on • The GPS indicator on the device will illuminate white indicating ready to use •...
  • Page 8 F O L I O N A M E V E C T O R VECTOR DOCK F U N C T I O N S • Power On/Off - Press power button. Light indicates status • Device Ignition - Devices can be turned on & off by the Dock when they are connected •...
  • Page 9 D E V I C E I G N I T I O N & D O C K B E H A V I O U R I N D I C A T O R S • The Vector Dock is designed to improve Power Status efficiency of use in the field •...
  • Page 10 ~90 minutes • Connectivity - Wireless and wired connections can be used • Device Data Capture - Vector Receiver uses Ultra Wideband frequencies for device data capture • Single & Multiple Receiver Systems - Greater field coverage for live streaming...
  • Page 11 S I N G L E R E C E I V E R S E T U P Wired Connection • Vector Receiver should be mounted on the tripod at maximum height • Connect USB C cable into Vector Receiver port •...
  • Page 12 M U L T I - R E C E I V E R S Y S T E M S • The Vector system can use multiple receivers to improve field coverage for live tracking. This improves live data quality •...

  • Page 13: Installation And Setup

    Open the OpenField desktop software and enter your password. OpenField will perform an initial synchronisation with OpenField cloud, and once complete you are ready to begin using Vector OpenField comes with recommended settings ■ TIP: relevant to the chosen sport. To customize visit the ‘settings’...
  • Page 14 Vector session, connect your devices to OpenField download Vector sessions. You will find a unique device to complete device setup and configuration. ID number on the back of each Vector Device that will • Insert Vector Devices into Vector Dock be entered into the OpenField desktop software.
  • Page 15 Vector Devices, Dock and Receiver. to OpenField button Turn on Vector Devices and wait for the GPS Click the Live Play button to start data collection. Click the Live Pause Button button Connected devices will appear in the Active...
  • Page 16 POST SESSION Once the session is complete, download the Vector data to the OpenField computer Return the Vector devices to the Vector Dock and power on the dock Connect the Vector Dock to your OpenField PC using the USB cable provided From the OpenField home screen, click the Data Transfer tile.
  • Page 17 • Review and export post activity data • Synchronize activities, periods and data to See in app help for full Vector iPad user guide OpenField cloud for analysis • Optimized for outdoor use in a range of lighting conditions You can start your Vector iPad activity before ■...
  • Page 18 Vector Smartphone app Vector Smartwatch app This app uses bluetooth to capture data and is This is a companion to the Vector Smartphone app. It uses bluetooth technology and has been optimised optimized for tracking small groups at short range.
  • Page 19 Ultra-wideband & Bluetooth 5 WIRELESS RANGE Up to 300m (UWB) CAPACITY 100 athletes HEART RATE ECG Derived (Vector S7, G7) & Polar 5.5kHz Compatible (all models) ACCELEROMETER 3D +/- 16G. Sampled at 1kHz, Provided at 100Hz GYROSCOPE 3D 2000 degrees/second @ 100Hz MAGNETOMETER 3D ±4900 µT @100Hz...
  • Page 20 V E C T O R GARMENT SIZING Catapult garments are measured by chest size. To find the correct size, measure around the fullest part of the chest, keeping the measuring tape horizontal. When an athlete is on the boarder between two sizes, it is always recommended that you order the smaller size for a tighter fit.
  • Page 21 V E C T O R GARMENT CARE Catapult garments are manufactured to the highest standards and from quality materials. Some garments contain conductive materials, polymers and adhesives that are sensitive to heat and chemical exposure. Please ensure care instructions are followed in all instances.
