Catapult Clearsky T6 FCC Document
Contents
1. OUTLINE ...................................................................................................................Pg. 2
2. CLEARSKY T6 TAG ..............................................................................................Pg. 2 - 4
3. SYSTEM LOGIN ........................................................................................................Pg. 4 - 5
4. COLLECTING DATA ..................................................................................................Pg. 6 - 7
5. DOWNLOADING DATA ...........................................................................................Pg. 7 - 8
6. SOFTWARE USER GUIDE LINKS .............................................................................Pg. 8
7. CLEARSKY ANCHOR & CLEARSKY DOCK ...............................................................Pg. 9 - 10
9. REGULATORY NOTICES ......................................................................................... Pg. 10 - 11
1
Advertisement
Related Manuals for Catapult Clearsky T6
Summary of Contents for Catapult Clearsky T6
-
Page 1: Table Of Contents
Catapult Clearsky T6 FCC Document Contents 1. OUTLINE …………………………………………………………………………………………………….Pg. 2 2. CLEARSKY T6 TAG ………………………………………………………………………………….Pg. 2 ‐ 4 3. SYSTEM LOGIN …………………………………………………………………………………………..Pg. 4 ‐ 5 4. COLLECTING DATA ……………………………………………………………………………………..Pg. 6 ‐ 7 5. DOWNLOADING DATA ……………………………………………………………………………….Pg. 7 ‐ 8 6. SOFTWARE USER GUIDE LINKS …………………………………………………………………..Pg. 8 7. CLEARSKY ANCHOR & CLEARSKY DOCK ………………………………………………………Pg. 9 ‐ 10 8. SUPPORT & HELP ……………………………………………………………………………………… Pg. 10 9. REGULATORY NOTICES …………………………………………………………………………….. Pg. 10 ‐ 11 1 ... -
Page 2: Outline

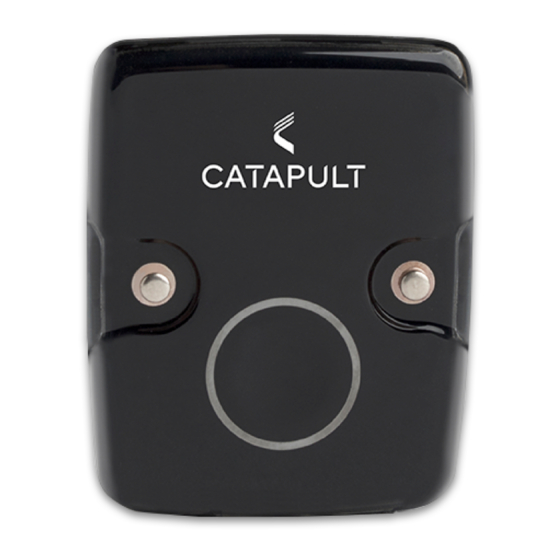

2. CLEARSKY T6 TAG The Clearsky T6 tag is a wearable LPS tag with embedded microsensors that is used to measure the performance of elite athletes, in both real‐time and post session. The Clearsky T6 tag contains the following measurement sensors and components: ... - Page 3 4. Starting a live session: Connect the Clearsky Anchor via Ethernet. In the software from the main screen, press the ‘quick start’ icon to start a live session. Clearsky T6 tags will show in ‘active players’ once they connect to the anchor and data transmission will begin. You can check if data are being received by checking the orange and black bar in the top right corner of the interface.
-
Page 4: System Login
The software components of the Clearsky system consist of a cloud account and a downloadable console. 1) Each user will receive a unique username and password from a Catapult representative to log into their OpenField Cloud account. Each user can login to the cloud Account through one of the following URLs depending on their geographical location: ... -
Page 5: Collecting Data
3) Once the Open Field console is downloaded, click the desktop Icon to open the console. Log into the console with the same account credentials used to log into the cloud. 4. COLLECTING DATA COLLECTING LIVE DATA A Live Activity is an Activity being analysed in real time whilst the Tags are being used; this is achieved via Data being collected through the Clearsky LPS anchor (s). - Page 6 4. From the main user interface in the console, select Start to begin a new Live Activity. 5. Create a New Activity via the Activity Timeline by right clicking in the timeline area and selecting New Activity. From the new activity menu, fill in all of the details for the session such as Name, tag type, venue, teams, ect.
-
Page 7: Downloading Data
5. DOWNLOADING DATA Data are recorded on the Tag in a 'Raw File', which is created every time the Tag is turned on; up to 31 Raw Files can be stored on a Tag at once. Downloading Data from the Tags is an important step in getting the most out of the metrics recorded on the Tag. It is necessary to apply Sport Specific Algorithms (GK Dives, QB Throws etc.), for IMA metrics to be calculated and more. 1. After a session is completed, collect all the tags from athletes, turn them off and connect the tags to the PC through the Clearsky charging case. 2. Open up the OpenField console and select ‘Data Transfer’ from the Console Tile Screen. 3. The units connected to the PC will automatically begin downloading (beginning with the most recent file, moving back) when the 'Data Transfer' tile is selected. OR ... -
Page 8: Software User Guide Links
4. Select 'Begin Transfer' to start downloading the tags. 6. SOFTWARE USER GUIDE LINKS 1. How to create a new widget ‐ Console Widgets Know live vs replay widget options ‐ Console Widgets 3. How to create a new dashboard on the cloud ‐ Cloud Dashboards 4. - Page 9 7. Clearsky Anchor & Clearsky Charging Case CLEARSKY ANCHOR Anchor Specification: Ethernet UWB Antenna (3774.0 MHz to 4243.2 MHz) The water‐resistant wireless anchor design is built to pick up tags for player data capture in a ~350meter range by using ultra‐wide band communication (4.0 GHz). The ultra‐wide bandwidth provides more robust communication between tags and anchors(s) and improves immunity to third‐party environmental interference, such as Wi‐Fi.
- Page 10 CLEARSKY CHARGING CASE Case Specification: USB Connectivity (type‐B USB 2.0 transmission) The Clearsky charging case consists of 28 individual tag slots, a USB port and a power supply port. The USB port connects the tags to the PC via a USB cord to enable tag configuration and downloading of the raw files on the tags.
-
Page 11: Support & Help
8. SUPPORT & HELP Any questions or requests for help with the OpenField software system or the CLEARSKY tags should be sent by email. The support email required is dependent on the user’s geographical location: APAC: apac_support@catapultsports.com EMEA: emea_support@catapultsports.com AMERICAS: us_support@catapultsports.com LATAM: latam_support@catapultsports.com... - Page 12 (2) this tag must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement (Clearsky T6 Tag) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and must not be co‐located or operating in conjunction with any other antenna or transmitter.
- Page 13 This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. 13 ...
