- Page 1 KBTKO User Manual...
- Page 2 Kinesis Corporation 22030 20th Avenue SE, Suite 102 Bothell, Washington 98021 USA www.KinesisGaming.com Keyboard models covered by this manual: KBTKO-KBW • KBTKO-KBB • KBTKO-KBR • Version 1.0.0 (October 1, 2020) This manual covers features included through firmware version 1.0.0 unless otherwise indicated. To download the latest firmware and to access all support resources visit the TKO Support page: www.KinesisGaming.com/tko-support ©...
-
Page 3: Table Of Contents
Table of Contents Read Me First………………………………………………………………………………………………………………………. 4 Get to Know Your Keyboard Introduction…………………………………………………………………………………………………………………………. 6 RGB Backlighting…...……..……………………………………………………………………………………………….. 6 Dual Layer Layouts (Embedded Fn Layer)……………………………………………………………………………… 6 HyperSpace Triple Space Bar Multimedia Actions…………………………………………………………………………………………………………. 7 Adjustable Front-Back Tilting……………………………………………………………………………………………. 7 Adjustable Left-Right Tenting……………………………………………………………………………………………. 7 Hot-swappable Key Switches………………………………………………………………….. Installing the Full-Size Space Bar……………………………………………………………………………………….. -
Page 4: Read Me First
1.0 Read Me First Health and Safety Warning Continuous use of any keyboard may cause aches, pains or more serious cumulative trauma disorders such as tendinitis and carpal tunnel syndrome, or other repetitive strain disorders. Exercise good judgement in placing reasonable limits on your keyboarding time every day. •... - Page 5 2.0 Keyboard Overview Specifications • Programmable 60% RGB Mechanical Keyboard • 1 year limited warranty • Dimensions: 295mm wide x 114mm deep x 33mm tall • Weight: 19.0oz Features Anodized Aluminum Plate • Premium PBT Double-shot Keycaps • Premium Kailh Box mechanical switches •...
-
Page 6: Get To Know Your Keyboard

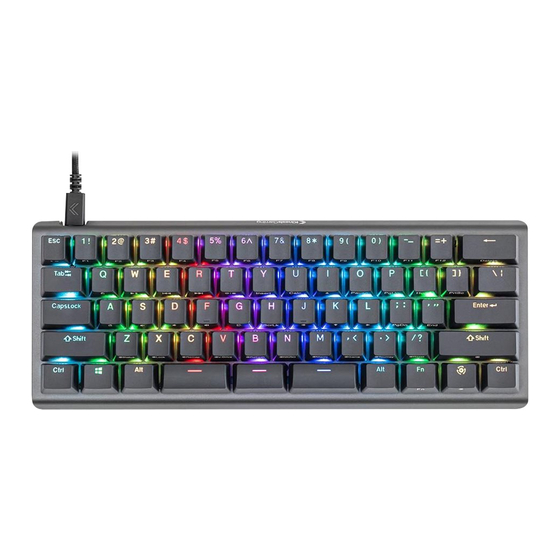

3.0 Introduction 3.1 RGB Backlighting The TKO keyboard is equipped with fully-customizable dual-layer, dual-zone RGB lighting. Each of the nine PROFILES is pre-configured with a unique lighting effect. Profile 1 is the default, but you can load any of the other eight PROFILES with a simple onboard shortcut to obtain a different effect (see Section 4.1). -
Page 7: Multimedia Actions
Note: If you prefer the conventional space bar, skip to Section 3.7 for instructions on how to remove the two extra key switches and install the full-size stabilizer and keycap, and the two dust covers. 3.4 Multimedia Actions The six standard multimedia actions are located in the embedded FN LAYER. Change your audio on the fly by pressing and holding FN key, and then tapping S/D/F for volume control or W/E/R for playback control. -
Page 8: Hotswappable Key Switches
Note: Do not tent the keyboard if you plan to have both hands on the keyboard. If you would like to type in a tented configuration, Kinesis recommends our Freestyle Edge RGB split keyboard and Lift Kit accessory which supports up to 20 inches of separation between the modules and 3 adjustable tent settings. Learn More: KinesisGaming.com/ergonomics 3.7 Hotswappable Key Switches The TKO keyboard uses hotswappable switches which allow you to install any conventional full-travel, plate... -
Page 9: Indicator Lights
3.9 Indicator Lights Unlike most 60% keyboards, the TKO features two indicator lights between the Hyperspace keys. These lights are used to indicate Caps Lock, and Game Mode, as well as provide feedback for certain onboard programming shortcuts. Note: These lights may be difficult to see if you have installed the full-size spacebar. 4.0 SmartSet Onboard Programming The SmartSet Programming Engine allows you to custom program the keyboard without installing any software or special drivers on the computer by using a series of convenient onboard shortcuts. -
Page 10: Remapping Keys
will be recorded, so if you make a mistake we recommend starting over, or editing your macro with the SmartSet App rather than using backspace key. To stop recording and save your macro, simply tap the SMARTSET key. Note: Macro Record Mode will end automatically when you hit the max length of 300 keystrokes. Only Keystrokes Recorded: The speed at which you type the macro and the pauses between strokes are not recorded. -
Page 11: Connect/Disconnect V-Drive
Note: Make sure you have a text editing program (e.g., Notepad, Word) selected as the active window before running a Status Report. Profile> The Active Profile loaded to the keyboard (1-9) and Lighting Effect • • Remaps> Number of remapped keys in the Active Profile Macros>... -
Page 12: Nkro Mode
4.14 Update Keyboard Firmware (SmartSet + Right Shift + U) Periodically Kinesis Gaming will release new versions of firmware with new features, bug fixes, and/or lighting effects. Installing new firmware is quick and easy, just download the latest firmware files from the TKO Support page and follow the online installation instructions. -
Page 13: Smartset Programming App (Windows & Mac)
5.0 SmartSet Programming App (Windows & macOS) The SmartSet App lets you design custom layouts, build powerful macros, customize the lighting for each of the 9 Profiles, and configure Global Keyboard Settings with a simple-to-use graphical interface. The App works in conjunction with onboard programming but has a number of additional “power user” tools & features. Note: The SmartSet App works differently than all other keyboard software so please read these instructions carefully before using. -
Page 14: Profile Selec On
5.3 Profile Selection The SmartSet App will automatically load the Active Profile. If you would like to customize one of the other 8 Profiles, simply use the Profile drop-down menu in the upper left. Note: Loading a Profile to the App does not load it to the keyboard. To load a Profile to the keyboard use the onboard shortcut (see Section 4.2). -
Page 15: Backligh Ng Editor
• Common Shortcuts: Use this menu to select from a list of popular pre-programmed macros. Timing Delays: To perfect the playback of your macro, it may be necessary to insert brief delays in • between certain keystrokes. Select a delay from 1ms to 999ms, or chose a random delay (up to 1000ms) so that playback is constantly variable. -
Page 16: App Tools
Check for Updates: Check for new Keyboard Firmware, a Lighting Expansion Pack, or a new version of • the SmartSet App. • Run Diagnostics for Kinesis Gaming Tech Support: Generate a diagnostics file that can be shared with Kinesis for faster tech support. Help: Request tech support or to watch a tutorial video. •...
