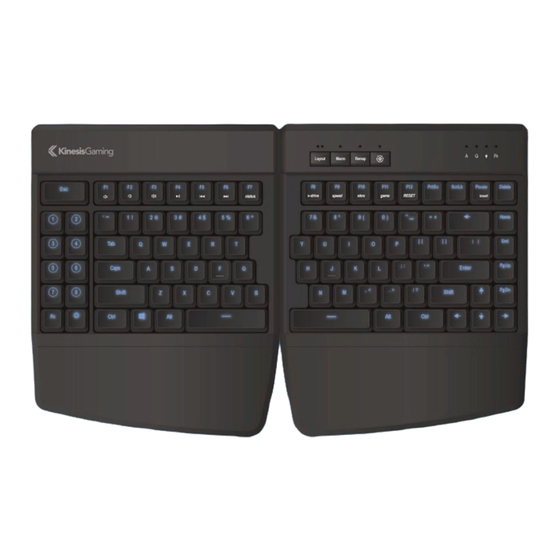

Kinesis Gaming FREESTYLE EDGE Quick Start Manual

Kinesis Gaming FREESTYLE EDGE Quick Start Manual

Advertisement

Quick Links

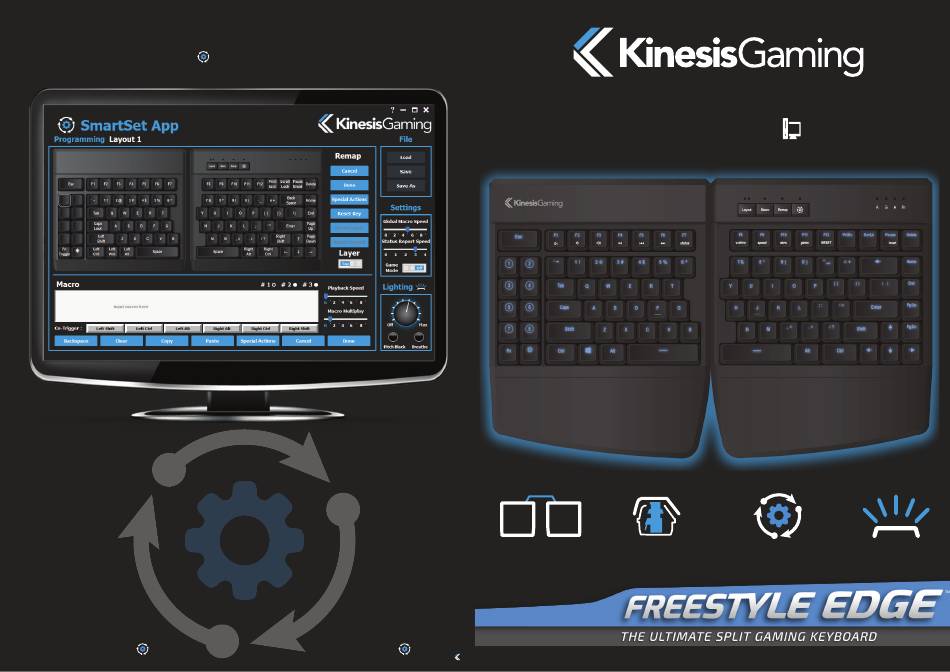

Programming with the SmartSet App
Customize keyboard layouts and settings with the convenient SmartSet Programming App.
To Launch the App: 1) open the v-Drive (
+ F8), 2) locate the "FS EDGE" removable drive in
Windows File Explorer, then 3) double-click the SmartSet App icon (10-15 seconds to load).
Quick Start Guide
KinesisGaming.com
Layouts: The active layout will load automatically, but any of the other 8 layouts can be loaded
manually using the Load button. The keyboard image shows the action assigned to each key
position for a given layout. To customize the layout, click any key position to designate the active
KB950
key (white outline). Use the Layer toggle-switch to navigate between the top layer and the Fn layer.
Remapping: Designate an active key, then use the Edge to input the new key action, or select a
Special Action from the menu at right. Remapped keys are displayed in blue font.
Macros: Designate an active key, then click the macro text box and type your macro (edit with the
Backspace and Clear buttons). Up to 3 macros can be assigned to each trigger key by selecting
one of the 3 radio buttons and then choosing one of the 6 modifier keys as a "co-trigger". Use the
20" ADJUSTABLE
CHERRY MECHANICAL
SMARTSET™
BLUE LED
sliders to set a custom playback speed (use "G" for the global speed) or to program the macro to
SPLIT
SWITCHES
PROGRAMMING ENGINE
BACKLIGHTING
playback a fixed number of times (use "R" to repeat when held). Macro trigger keys are displayed
with a blue outline in the diagram. A maximum of 24 macros can be assigned to each layout.
Settings and Lighting: Use the App to adjust basic keyboard settings and set the custom lighting
mode (Note: Settings and Lighting are not layout-specific).
Implementing Changes: The App does not dynamically update the keyboard or reflect onboard
changes since launch. To implement your changes, first click Save or Save As. Then use the
Refresh onboard shortcut (
+ Layout), or close the App and then close the v-Drive (
+ F8).
4
Copyright © 2017. Kinesis Corporation. All rights reserved. Version 6/27/2017.
