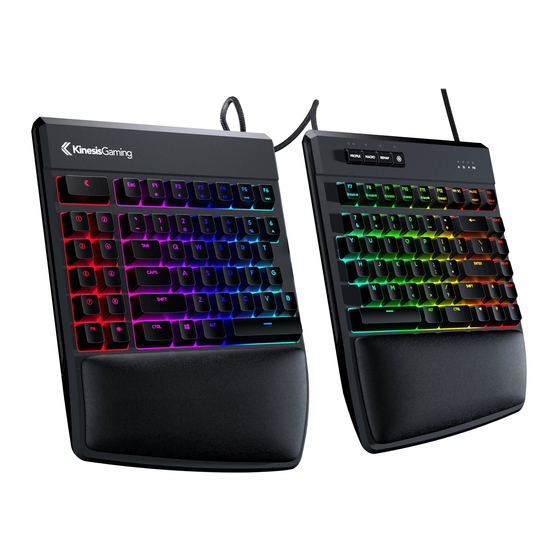

Kinesis Gaming KB975 Series User Manual
Split mechanical gaming keyboard
Hide thumbs
Also See for KB975 Series:
- Quick start manual ,
- User manual (23 pages) ,
- Programming manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Kinesis Gaming KB975 Series
Summary of Contents for Kinesis Gaming KB975 Series

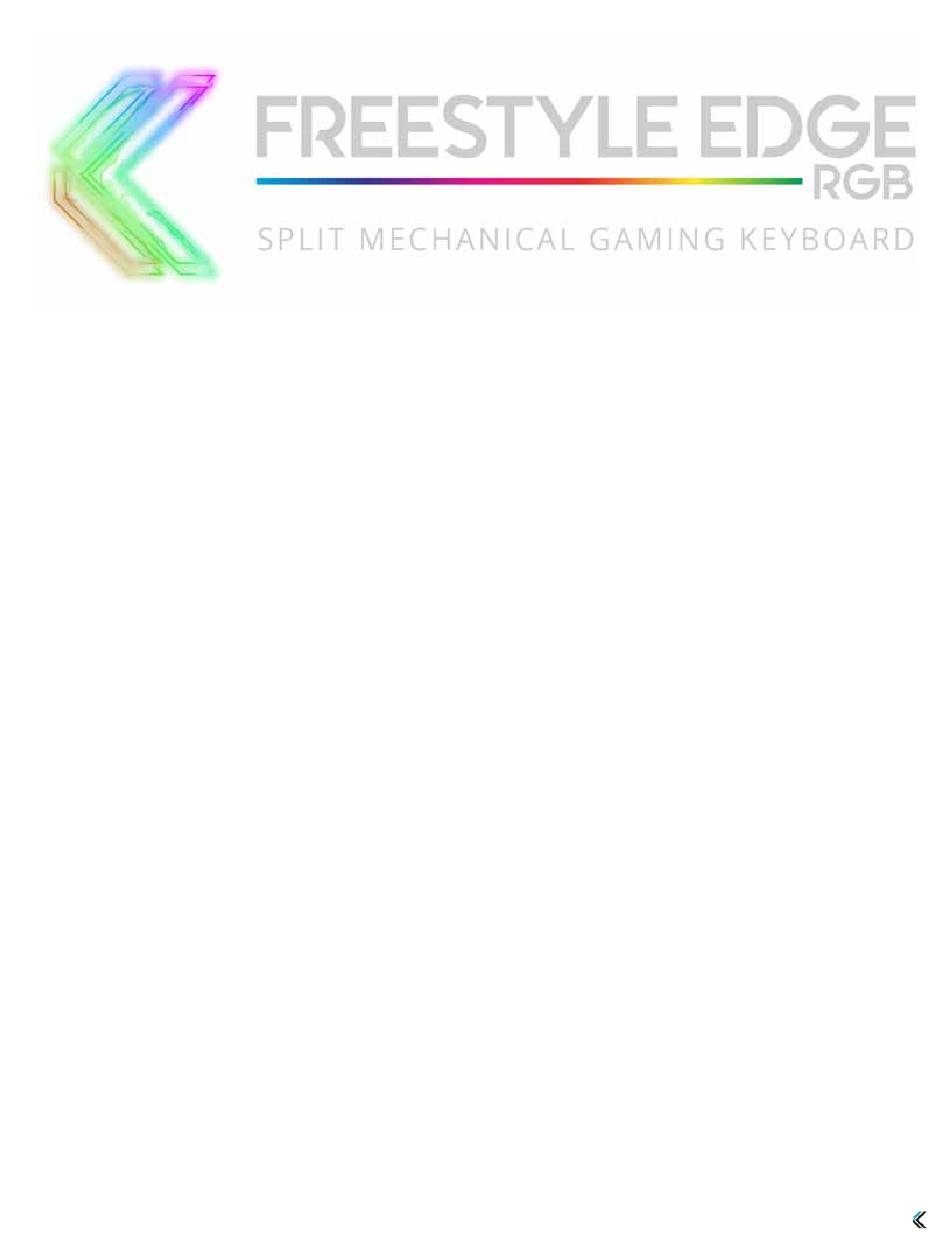

- Page 1 KB975 User Manual...
- Page 2 Kinesis Corporation 22030 20th Avenue SE, Suite 102 Bothell, Washington 98021 USA Keyboard models covered by this manual: www.KinesisGaming.com • KB975-BLU KB975-RED • KB975-BRN • • KB975-SIL Version 1.0.0 (May 30, 2019) This manual covers features included through firmware version 1.0.0. To download the latest firmware and to access all support resources visit: www.KinesisGaming.com/Support.
-
Page 3: Table Of Contents
Table of Contents Read Me First………………………………………………………………………………………………………………………. 4 Keyboard Overview………………………………………………………………………………………………………………... 5 Introduction…………………………………………………………………………………………………………………………. 6 RGB Backlighting…...……..……………………………………………………………………………………………….. 6 Dual Layer Layouts (Embedded Fn Layer)……………………………………………………………………………… 6 Multimedia Actions…………………………………………………………………………………………………………. 6 Programming Cluster………………………………………………………………………………………………………. 6 Removable Cushioned Palm Supports………………………………………………………………………………….. 6 SmartSet Programming Engine- Onboard Shortcuts………………………………………………………………….. 7 Adjustable Linking Cable………………………………………………………………………………………………….. 7 Game Bank…………………………………………………………………………………………………………………. -
Page 4: Read Me First
1.0 Read Me First Health and Safety Warning Continuous use of any keyboard may cause aches, pains or more serious cumulative trauma disorders such as tendinitis and carpal tunnel syndrome, or other repetitive strain disorders. Exercise good judgement in placing reasonable limits on your keyboarding time every day. •... -
Page 5: Keyboard Overview
2.0 Keyboard Overview Specifications • Compact tenkeyless design with standard US ANSI key layout 6’ USB cable and 20” adjustable linking cable • 2 year limited warranty • • Dimensions: 1.25” tall x 15.5” wide x 10.25” deep (Without Palm Supports: 7.25” deep) Weight: 2.8 lbs •... -
Page 6: Introduction
3.0 Introduction 3.1 RGB Backlighting The Freestyle Edge is equipped with vibrant per-key RGB backlighting. Tap the LED key to quickly toggle the backlighting On and Off. Each of the nine Profiles is pre-configured with a unique lighting effect. Additional, more exotic effects, can be assigned to each of the 9 Profiles via the SmartSet App. -
Page 7: Smartset Programming Engine- Onboard Shortcuts
3.6 SmartSet Programming Engine- Onboard Shortcuts The SmartSet key is used in conjunction with the F7-F12 keys to activate onboard shortcuts. Onboard shortcuts are legended with the SmartSet icon to differentiate them from embedded Fn layer actions. To trigger an onboard shortcut, hold the SmartSet Key and then tap F7-F11 . To prevent against accidentally resetting the keyboard, you must also hold the Shift key along with the SmartSet Key before tapping F12 . -
Page 8: Recording Macros
4.2 Recording Macros A macro is string of characters or key actions that is triggered by a single key press or key combo. Macros are powerful tools that allow you to quickly produce multiple in-game actions in rapid succession. Macros are assigned to the active layout at the time of recording but can be easily copied using the SmartSet App. -
Page 9: Run Status Report
Remapping Tips and Tricks Remapping is a one-way process, it creates a duplicate key action but it does not “swap” two keys. To • “swap” two keys you must perform two separate remap programming commands. • Remapping only operates on one layer at a time. To remap the same key in both layers you must perform two separate remap commands, one for each layer. -
Page 10: Adjust Global Macro Speed
Keep the v-Drive disconnected when not in use: For best results, keep the v-Drive closed when not using the SmartSet App. Note: The keyboard’s multimedia actions, mouse clicks, and onboard programming shortcuts are disabled while the v-Drive is connected. Always Eject v-Drive before closing: Before disconnecting the v-Drive, it is important to always Eject the “FS EDGE RGB”... -
Page 11: Hard Reset
4.13 Update Firmware (SmartSet + SHIFT+ U) Periodically Kinesis Gaming will release new versions of firmware with new features, new lighting expansion packs, and bug fixes. Installing new firmware is quick and easy, just download the latest firmware files and follow the online installation instructions KinesisGaming.com/fs-edge-rgb-support/#firmware... -
Page 12: Smartset Programming App (Windows & Mac)
5.0 SmartSet Programming App (Windows & Mac OS X) The SmartSet App lets you design custom layouts, build powerful macros, customize the lighting for each of the 9 Profiles, and configure global keyboard settings with a simple-to-use graphical interface. The App works in conjunction with onboard programming, but it has number of additional tools and features for power users. -
Page 13: Profile Selec On
5.3 Profile Selection The SmartSet App will automatically load the active Profile for customizing its Layout and Lighting. If you would like to customize one of the other 8 Profiles, simply use the Profile drop -down menu in the upper left. Note: Loading a Profile to the App does not load it to the keyboard. - Page 14 Macro Editor: Click “Macro” in the Actions Menu to launch the Macro Editor to create new macros, edit existing macros, or copy and paste existing macros to new keys or Profiles. Note: Keys with macros are displayed with a blue outline in the keyboard image. Programming / Editing a Macro: First designate the primary trigger key by clicking the keyboard image above.
-
Page 15: Ligh Ng Editor
Check for Updates: Check for new Keyboard Firmware, a Lighting Expansion Pack, or a new version of • the SmartSet App. Run Diagnostics for Kinesis Gaming Tech Support: Generate a diagnostics file that can be shared • with Kinesis. •... -
Page 16: Maintenance
6.0 Maintenance To keep your Freestyle Edge RGB performing at its peak, we recommend periodically spraying canned air between the keycaps to remove any loose debris and wiping it clean with a damp, soft cloth (no soap). 7.0 Technical Support, Repairs, and Returns For Downloads, FAQs, troubleshooting tips, other resources visit and to submit a support ticket visit the link below.
