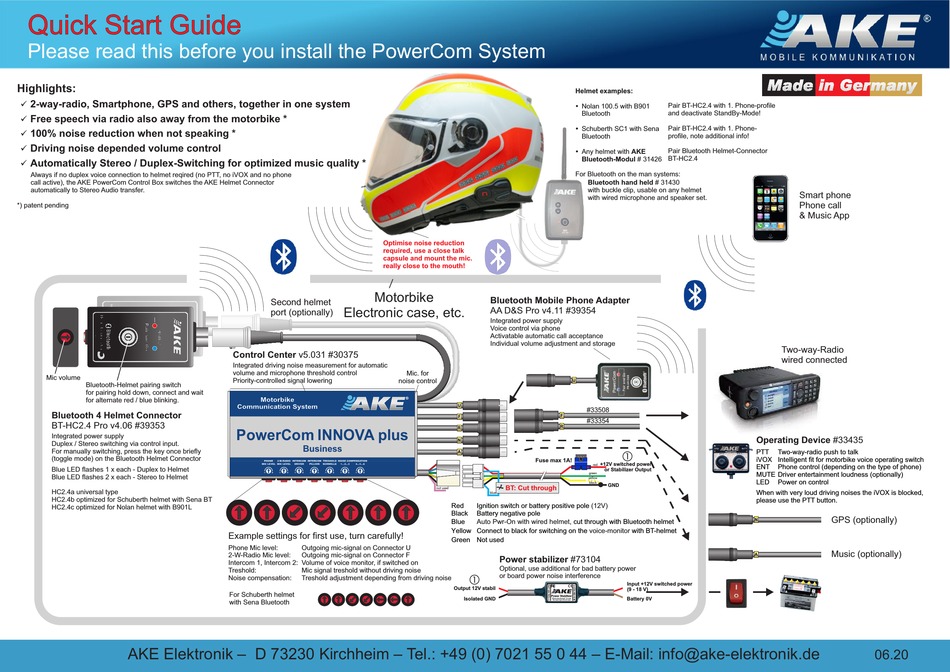

AKE PowerCom INNOVA Plus Business Quick Start Manual

Quick Start Guide
Please read this before you install the PowerCom System
Highlights:
ü 2-way-radio, Smartphone, GPS and others, together in one system
Free speech via radio also away from the motorbike *
ü
100% noise reduction when not speaking *
ü
Driving noise depended volume control
ü
ü Automatically Stereo / Duplex-Switching for optimized music quality *
Always if no duplex voice connection to helmet reqired (no PTT, no iVOX and no phone
call active), the AKE PowerCom Control Box switches the AKE Helmet Connector
automatically to Stereo Audio transfer.
*) patent pending
Mic volume
Bluetooth-Helmet pairing switch
for pairing hold down, connect and wait
for alternate red / blue blinking.
Bluetooth 4 Helmet Connector
BT-HC2.4 Pro v4.06 #39353
Integrated power supply
Duplex / Stereo switching via control input.
For manually switching, press the key once briefly
(toggle mode) on the Bluetooth Helmet Connector
Blue LED flashes 1 x each - Duplex to Helmet
Blue LED flashes 2 x each - Stereo to Helmet
HC2.4a universal type
HC2.4b optimized for Schuberth helmet with Sena BT
HC2.4c optimized for Nolan helmet with B901L
AKE Elektronik
Optimise noise reduction
required, use a close talk
capsule and mount the mic.
really close to the mouth!
Motorbike
Second helmet
Electronic case, etc.
port (optionally)
Control Center v5.031 #30375
Integrated driving noise measurement for automatic
volume and microphone threshold control Mic. for
Priority-controlled signal lowering
noise control
®
PowerCom INNOVA plus
Business
Example settings for first use, turn carefully!
Phone Mic level: Outgoing mic-signal on Connector U
2-W-Radio Mic level: Outgoing mic-signal on Connector F
Intercom 1, Intercom 2: Volume of voice monitor, if switched on
Treshold: Mic signal treshold without driving noise
Noise compensation: Treshold adjustment depending from driving noise
For Schuberth helmet
with Sena Bluetooth
– D 73230 Kirchheim – Tel.: +49 (0) 7021 55 0 44
Helmet examples:
ŸNolan 100.5 with B901
Bluetooth
ŸSchuberth SC1 with Sena
Bluetooth
ŸAny helmet with AKE
Bluetooth-Modul # 31426
For Bluetooth on the man systems:
Bluetooth hand held # 31430
with buckle clip, usable on any helmet
with wired microphone and speaker set.
Bluetooth Mobile Phone Adapter
AA D&S Pro v4.11 #39354
Integrated power supply
Voice control via phone
Activatable automatic call acceptance
Individual volume adjustment and storage
U
U
#33508
F
F
#33354
R
R
N
A
Fuse max 1A!
+12V switched power
red
or Stabilizer Output
green
yellow
black
GND
BT: Cut through
not used
blue
Red Ignition switch or battery positive pole (12V)
Black Battery negative pole
Blue Auto Pwr-On with wired helmet, cut through with Bluetooth helmet
Yellow Connect to black for switching on the voice-monitor
Green Not used
Power stabilizer #73104
Optional, use additional for bad battery power
or board power noise interference

Output 12V stabil
Isolated GND
– E-Mail: info@ake-elektronik.de
Pair BT-HC2.4 with 1. Phone-profile
and deactivate StandBy-Mode!
Pair BT-HC2.4 with 1. Phone-
profile, note additional info!
Pair Bluetooth Helmet-Connector
BT-HC2.4
Smart phone
Phone call
& Music App
Two-way-Radio
wired connected
Operating Device #33435
PTT Two-way-radio push to talk

iVOX Intelligent fit for motorbike voice operating switch
ENT Phone control (depending on the type of phone)
MUTE Driver entertainment loudness (optionally)
LED Power on control
When with very loud driving noises the iVOX is blocked,
please use the PTT button.
N
with BT-helmet
A
Input +12V switched power
(9 - 18 V)
Battery 0V
GPS (optionally)
Music (optionally)
06.20
