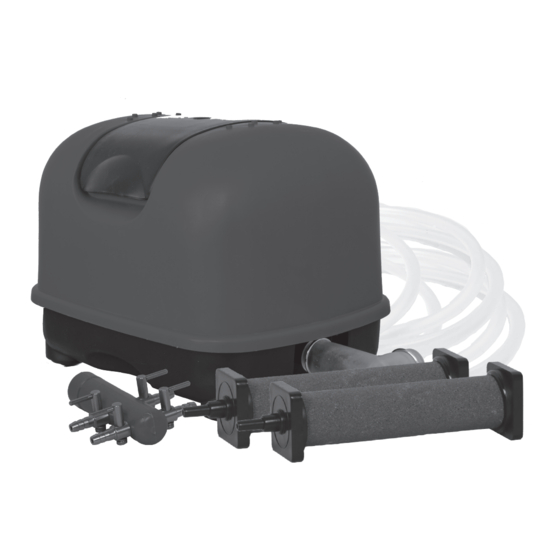

- Page 1 XA SERIES Teton Aeration Pump INSTRUCTION MANUAL...
-
Page 2: Technical Specifications
TETON AERATION PUMP XAP20-XAP160 VERSION May 2020 www.tetonus.com 800.752.0399 info@tetonus.com WELCOME TO THE WORLD OF TETON, BEFORE USING THIS PRODUCT, PLEASE READ NATURAL RELIABILTY! THESE INSTRUCTIONS CAREFULLY AND FAMILIARIZE YOURSELF WITH THE UNIT. PLEASE You Made The Right Choice Investing In This Quality KEEP THESE INSTRUCTIONS IN A SAFE PLACE Product. -
Page 3: Design Highlights
DESIGN HIGHLIGHTS: BENEFITS INCLUDE • Weatherproof casing design for outdoor use. The Teton Aeration Pump has been manufactured with advanced technology to provide you with the • Quiet operation - Outer industrial plastic casing best quality aeration for your pond, aquarium or and air baffle, and extra buffer chamber on outlet aquaculture application. -
Page 4: Installation And Maintenance
PRODUCT SPECIFIC SAFEGUARDS • The air pump is designed to be used in garden • The air pump air filter needs to be cleaned reg- pond or aquarium applications. It is not to be ularly to prevent the pump becoming clogged used in any other manner or purpose. - Page 5 Changing the Diaphragm FIGURE A If the air flow on the pump has decreased or if there is a “ticking” sound coming from the unit, the unit Filter Cover must be turned off immediately. This is typically a symptom of the rubber diaphragms wearing out Casing Block and needing to be replaced.
-
Page 6: Parts Breakdown
PARTS BREAKDOWN Electronic Magnet Permanent Magnet (3) Frame Exhaust Diaphragm Support Assembly Screw Casing Block (4) Diaphragm(1) Exhaust Valve U-Nut Inhalation Valve Load AVAILABLE REPLACEMENT PARTS FOR MODEL NO. XAP20 XAP40 XAP60 XAP80 XAP120 XAP160 Diaphragm (1) 870020 870046 870046 870080 870126 870126... -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION PUMP NOT WORKING No power Check that the plug on power cable is connected to power and confirm that power point is working. Bad motor Replace the air pump (if applicable). Damaged cable Inspect the entire length of the air pump cable and look for cuts or damage resulting in exposed cop- per wire. -
Page 8: Warranty
WARRANTY limited warranties, including the warranties of • This product is warranted to the initial purchaser to be free of defects in materials and manufac- merchantability and fitness for particular pur- ture workmanship at the time of initial purchase pose, shall have no greater duration than the duration period of the express written warranty and for a period of 2 years after.
