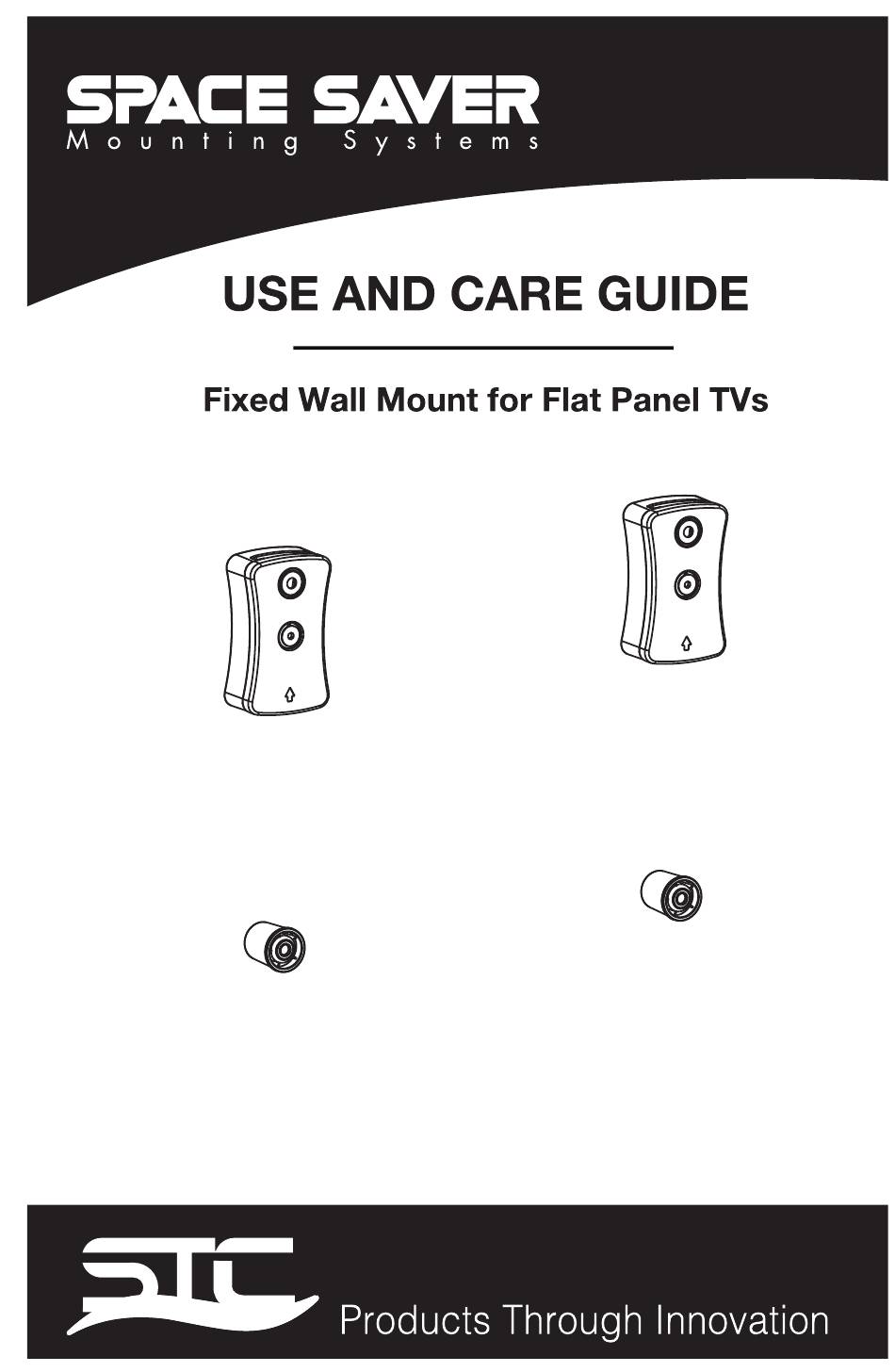

- Page 1 Model: 90100 (Fits most TV sizes weighing up to 150 lbs) Questions, problems, missing parts? Before returning to the store, call STC Customer Service 9 a.m. - 5 p.m., Monday to Friday Toll Free 1-833-GOSTCNY (1-833-467-8269) STCNY.COM...
- Page 2 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. This wall mount is intended for use only with the maximum weights indicated.
- Page 3 SPACE SAVER Mounting Systems VESA Standard Ruler Wall plate TV bracket Standoff Mounting template Level NOTE: The hardware included is suitable for mounting to walls made of brick, solid concrete using (AA BB and CC) and unique (GG) anchors for mounting on plasterboard walls. If your mounting situation is different, please consult a qualified installer or contact customer service at: 1-833-467-8269...
- Page 4 To ensure proper mounting of the brackets to your TV, this mounting system includes several sizes (M4, M5, M6, and M8) of screws (DD). Select the screw diameter to use by inserting the various sized screws (M4, M5, M6, and M8) into the mounting holes in the back of your TV to identify the right size.
- Page 5 Attaching the mounting brackets to the TV Attach the bubble level into the mounting template. SPACE SAVER Mounting Systems SPACE SAVER Mounting Systems VESA Standard Ruler VESA Standard Ruler Before attaching the mounting brackets to the TV, Measure the distance from the left insert to the right insert on the back of your TV using the included VESA standard ruler or a Tape Measure.
- Page 6 PLANNING WALL PLACEMENT For Plasterboard/ Sheetrock walls mount directly on the board, no stud is required.
- Page 7 Installing the wall plates (concrete/brick wall) Use the mounting template (D) to mark the installation holes. Use a level to ensure the plates are level. Use 1/4 in (6mm) drill bit to drill a pilot holes and then use a 3/8 in (10 mm) masonry drill bit to slowly drill 2.4 in (60 mm) holes.
- Page 8 Installing the wall plate (drywall/sheetrock/plaster wall) Use the mounting template (D) to mark the installation holes. Use a level to ensure the Plates are leveled. Use a 3/8 in. (10 mm) drill bit to slowly drill pilot holes. Remove the screws from the 4 Drywall Anchors (GG). Insert the BODY ONLY of the Drywall Anchors (GG) into the four pilot holes previously drilled.
- Page 9 TVs > 600 VESA OR OVERSIZED TVs For TVs with VESA larger than 600 or for oversized or Non VESA TVs, Use a Tape Measure ,a level and a pencil to mark a straight line on the wall from left to right (the distance from the left insert to the right insert on the back of your TV) to determine the location for drilling the holes for the 2 wall plates.
- Page 10 Mounting the TV to the wall plate Hang the TV HEAVY! You will need assistance with this step. Removing the TV from the wall To remove the TV from the wall, gently lift the TV upwards to remove it from the wall with both hands. For larger televisions, use two people.
