Model: 90200
Tilting Wall Mount for Flat Panel TVs
(Fits most TV up to 90" with max weight of 150 lbs)
Questions, problems, missing parts? Before returning to the store,
call STC Customer Service
9 a.m. - 5 p.m., Monday to Friday
Toll Free 1-833-GOSTCNY (1-833-467-8269)
STCNY.COM
Advertisement
Related Manuals for STC Space Saver 90200
Summary of Contents for STC Space Saver 90200

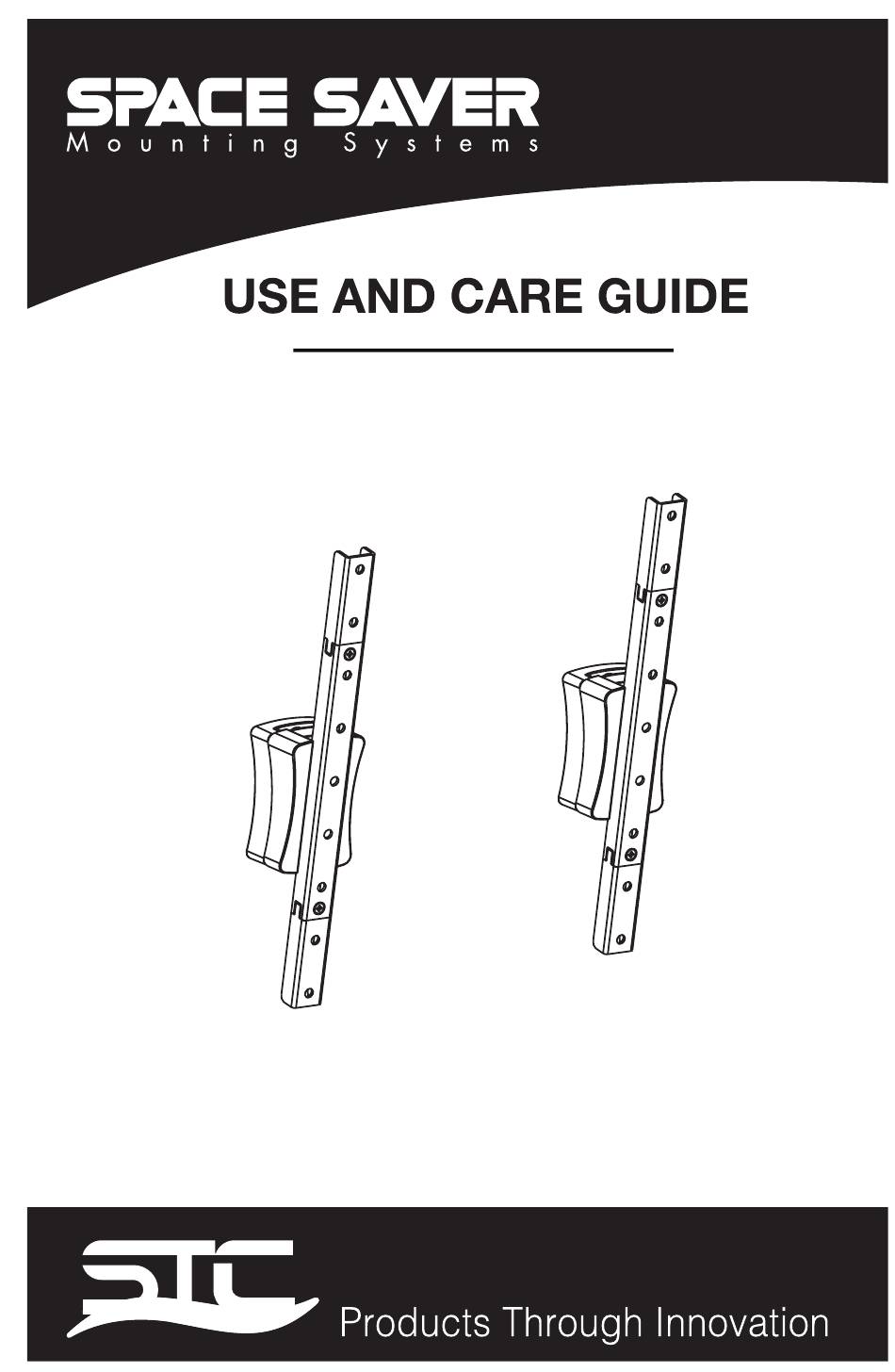

- Page 1 Tilting Wall Mount for Flat Panel TVs (Fits most TV up to 90" with max weight of 150 lbs) Questions, problems, missing parts? Before returning to the store, call STC Customer Service 9 a.m. - 5 p.m., Monday to Friday Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 2 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. This wall mount is intended for use only with the maximum weights indicated.
- Page 3 SPACE SAVER Mounting Systems VESA Standard Ruler Wall plate TV bracket Bracket extension Screw Mounting template Level NOTE: The hardware included is suitable for mounting to walls made of brick, solid concrete using (AA BB and CC) and unique (GG) anchors for mounting on plasterboard walls.
- Page 4 To ensure proper mounting of the brackets to your TV, this mounting system includes several sizes (M4, M5, M6, and M8) of screws (DD). Select the screw diameter to use by inserting the various sized screws (M4, M5, M6, and M8) into the mounting holes in the back of your TV to identify the right size.
- Page 5 Attaching the mounting brackets to the TV Attach the bubble level into the mounting template. SPACE SAVER Mounting Systems SPACE SAVER Mounting Systems VESA Standard Ruler VESA Standard Ruler Before attaching the mounting brackets to the TV, Measure the distance from the left insert to the right insert on the back of your TV using the included VESA standard ruler or a Tape Measure.
- Page 6 TVs > 200 VESA If The VESA is 300 or 400 up to bottom you need to add the bracket extensions (C) as shown in the drawing below. Attach the bracket extensions (C) to TV bracket with screws. CAUTION: Tighten the screws so the brackets are firmly attached.
- Page 7 PLANNING WALL PLACEMENT For Plasterboard/ Sheetrock walls mount directly on the board, no stud is required. Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 8 Installing the wall plates (concrete/brick wall) Use the mounting template (E) to mark the installation holes. Use a level to ensure the plates are level. Use 1/4 in (6mm) drill bit to drill a pilot holes and then use a 3/8 in (10 mm) masonry drill bit to slowly drill 2.4 in (60 mm) holes.
- Page 9 Installing the wall plate (drywall/sheetrock/plaster wall) Use the mounting template (E) to mark the installation holes. Use a level to ensure the Plates are leveled. Use a 3/8 in. (10 mm) drill bit to slowly drill pilot holes. Remove the screws from the 4 Drywall Anchors (GG). Insert the BODY ONLY of the Drywall Anchors (GG) into the four pilot holes previously drilled.
- Page 10 Mounting the TV to the wall Plates Hang the TV HEAVY! You will need assistance with this step. Adjusting the TV to the desired position To tilt the TV, gently lift the TV with both hands, one on the top and one on the bottom. To tilt larger televisions, use two people.
- Page 11 Removing the TV from the wall To remove the TV from the wall, gently lift the TV upwards to remove it from the wall with both hands. For larger televisions, use two people. HEAVY! You will need assistance with this step. To remove the TV from the wall, gently grasp the TV on both sides.
- Page 12 Questions, problems, missing parts? Before returning to the store, call STC Customer Service 9 a.m. - 5 p.m., Monday to Friday Toll Free 1-833-GOSTCNY (1-833-467-8269) STCNY.COM...
