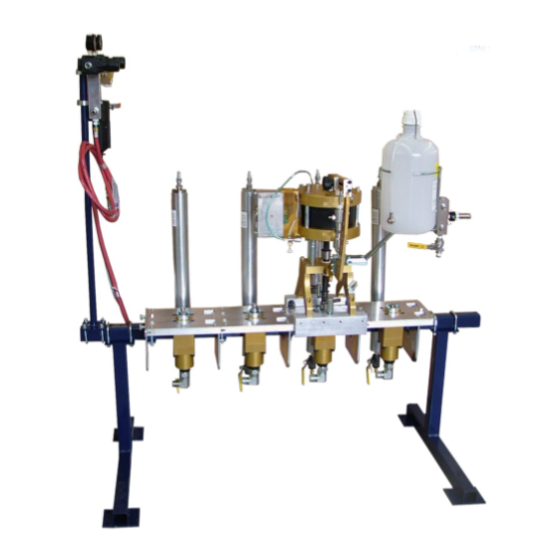

MVP Patriot MVE-PAT-1500-x Operation Manual

Multi-color gelcoater
Hide thumbs Also See for Patriot MVE-PAT-1500-x:

Advertisement

Quick Links

Download this manual

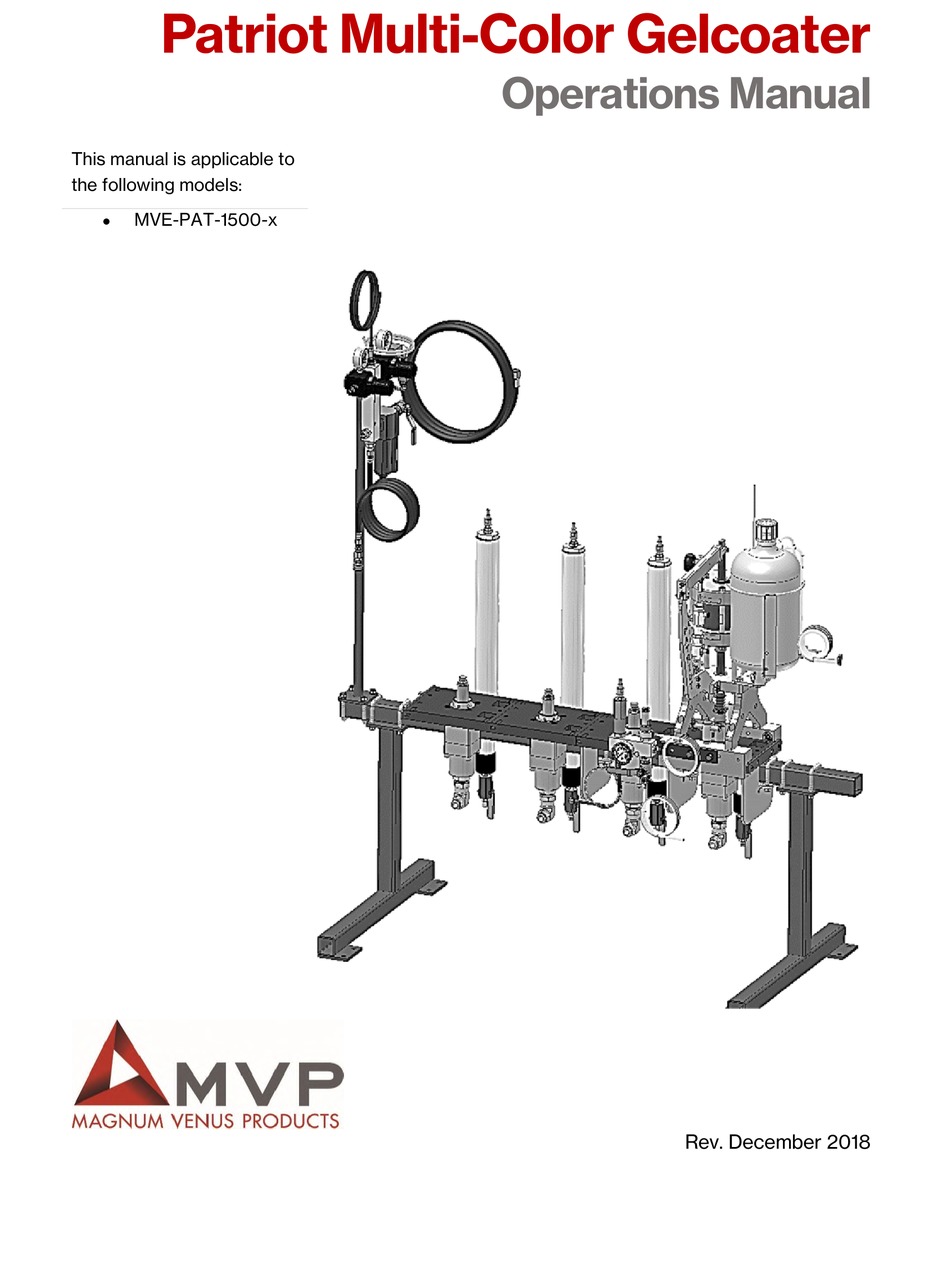

Patriot Multi-Color Gelcoater
Operations Manual
This manual is applicable to
the following models:
MVE-PAT-1500-x
Rev. December 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the Patriot MVE-PAT-1500-x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MVP Patriot MVE-PAT-1500-x

Summary of Contents for MVP Patriot MVE-PAT-1500-x

  • Page 1 Patriot Multi-Color Gelcoater Operations Manual This manual is applicable to the following models:  MVE-PAT-1500-x Rev. December 2018...
  • Page 2 1862 Ives Ave, Kent, WA 98032 · USA · Tel (253) 854-2660 · Fax (253) 854-1666 E-mail: info@mvpind.com For a list of international distributors, visit our website at : www.mvpind.com/mvp-international Use of this product confirms that Magnum Venus Products, Inc.’s standard terms and conditions of sale apply. Page | 2...

  • Page 3: Table Of Contents

    Patriot Multi-Color Gelcoater Operations Manual Table of Contents Section Page  Table of Contents  Safety & Warning Information  Introduction  Getting Started  Charging Accumulators  Changing Colors  Priming the Unit  Performing Daily Tasks Page | 3...

  • Page 4: Safety & Warning Information

    MVP assumes no responsibility for loss, damage, expense or claims for bodily injury or property damage, direct or consequential, arising from the use of such chemical components.
  • Page 5 Patriot Multi-Color Gelcoater Operations Manual Safety Precautions  Avoid skin contact and inhalation of all chemicals.  Review Material Safety Data Sheet (MSDS) to promote the safe handling of chemicals in use.  Restrict the use of all chemicals to designated areas with good ventilation. ...
  • Page 6 An improperly loaded drum may lead to an imbalance, causing a unit to tip over Personal Protective Equipment (PPE)  MVP recommends the use of personal safety equipment with all products in our catalog.  Wear safety goggles, hearing protection, a respirator, and chemical resistant gloves.
  • Page 7 Patriot Multi-Color Gelcoater Operations Manual Symbol Definitions Indicates the risk of Indicates the risk of contact with chemicals contact with voltage / that are hazardous, which amperage that may lead may lead to injury or to serious injury or death death.
  • Page 8 Patriot Multi-Color Gelcoater Operations Manual Polymer Matrix Materials: Advanced Composites Potential health hazards associated with the use of advanced composites can be controlled through the implementation of an effective industrial hygiene and safety program. https://www.osha.gov/dts/osta/otm/otm_iii/otm_iii_1.html#t iii:1_1 Resins Composite Component Organ System Target Known (Possible) Health Effect (Possible Target) Contact and allergic dermatitis,...
  • Page 9 Patriot Multi-Color Gelcoater Operations Manual Catalyst - Methyl Ethyl Ketone Peroxide (MEKP) MEKP is among the more hazardous materials found in commercial channels. The safe handling of the “unstable (reactive)” chemicals presents a definite challenge to the plastics industry. The highly reactive property which makes MEKP valuable to the plastics industry in producing the curing reaction of polyester resins also produces the hazards which require great care and caution in its storage, transportation, handling, processing and disposal.
  • Page 10 Patriot Multi-Color Gelcoater Operations Manual  Never add MEKP to anything that is hot, since explosive decomposition may result.  Avoid contact with skin, eyes, and clothing. Protective equipment should be worn at all times. During clean-up of spilled MEKP, personal safety equipment, gloves, and eye protection must be worn.
  • Page 11 Patriot Multi-Color Gelcoater Operations Manual  The reaction is unpredictable. Prior use of an HHC solvent without incident (corrosion or explosion) does NOT mean that such use is safe. These solvents can be dangerous alone (as a clean-up or flushing agent) or when used as a component or a coating material. There is no known inhibitor that is effective under all circumstances.
  • Page 12 Patriot Multi-Color Gelcoater Operations Manual Catalyst Diluents Magnum Venus Products spray-up and gel-coat systems currently produced are designed so that catalyst diluents are not required. Magnum Venus Products therefore recommends that diluents not be used to avoid possible contamination which could lead to an explosion due to the handling and mixing of MEKP and diluents.
  • Page 13 Patriot Multi-Color Gelcoater Operations Manual Toxicity of Chemicals  Magnum Venus Products recommends that you consult OSHA Sections 1910.94, 1910.106, 1910.107 and NFPA No.33, Chapter 14, and NFPA No.91.  Contact your chemical supplier(s) and determine the toxicity of the various chemicals used as well as the best methods to prevent injury, irritation and danger to personnel.
  • Page 14 Patriot Multi-Color Gelcoater Operations Manual Precautions include: 1. Know precisely what chemicals you are using and obtain information from your chemical supplier on what to do in the event the chemical gets onto your skin or into the eyes, or if swallowed.

  • Page 15: Introduction

    “Recommended Practice on Static Electrical”. Refer especially to section 7-7 titled “Spray Application of Flammable and Combustible Materials”. Introduction This manual provides information for the operation, maintenance, and simple repair of the MVP Patriot Multi-Color Gelcoater. The following procedures are included: ...
  • Page 16 Patriot Multi-Color Gelcoater Operations Manual Air Requirements 1. The system requires a supply of air (30 cfm) and at least 100 psi (7 bar). 2. The unit requires a ½ inch (12 - 13 mm) inside diameter air hose minimum (use caution when using quick disconnects;...
  • Page 17 Patriot Multi-Color Gelcoater Operations Manual Overview of Controls Main Air (Upper) Manifold Priming Button Pump Pressure Recirculation Gauge & Regulator Valve Ram Extraction Gauge & Regulator Filter/Water Trap Main Air Inlet and Ball Valve Catalyst (Lower) Manifold Catalyst Pump Pressure Gauge Recirculation Valve Page | 17...

  • Page 18: Getting Started

    Patriot Multi-Color Gelcoater Operations Manual Getting Started Installation and Set Up 1. Unpack the unit and all components. 2. Assemble the frame work as needed. Note 3 mounting brackets are provided with the standard frame (enough for 2 colors). Additional mounting brackets and hardware can be ordered for each additional color and will need to be installed.
  • Page 19 Patriot Multi-Color Gelcoater Operations Manual For high fluid pressure applications, it may be required to charge the accumulators to between 280 and 300 psi. These are applications using filled resins or spray putties. To charge the accumulators, you will need a charging pump or similar device or a high-pressure tank and regulators.
  • Page 20 Patriot Multi-Color Gelcoater Operations Manual 13. Attach the charging pump by connecting the black charging hose to the charging valve on top of the resin accumulator. Note Do not overtighten the charging pump hose. 14. Pull the charging pump handle all the way out and connect the air hose to the male quick disconnect on the charging pump.

  • Page 21: Changing Colors

    Patriot Multi-Color Gelcoater Operations Manual 24. Attach the charging system to the resin accumulator by connecting the black charging hose to the charging valve on top of the resin accumulator. Note Do not overtighten the charging pump hose. 25. Open the main regulator on top of the tank. 26.

  • Page 22: Priming The Unit

    Patriot Multi-Color Gelcoater Operations Manual 7. Rotate the ball valve on the catalyst manifold to the open position to relieve catalyst pressure to the supply jug. 8. Close the ball valve at the quick disconnect end of the resin hose assembly. 9.
  • Page 23 Patriot Multi-Color Gelcoater Operations Manual 5. Push the flush valve on the side of the gun block to test solvent flush. Select Gelcoat Pump Color 6. Connect the carriage assembly to the desired gelcoat fluid section as described in the Changing Colors section.
  • Page 24 Patriot Multi-Color Gelcoater Operations Manual 22. Allow pump to run until a steady stream of gelcoat is being dispensed. 23. Close the gun and clean as follows:  For external mix system: Brush the front of the gun head clean with solvent. ...

  • Page 25: Performing Daily Tasks

    Patriot Multi-Color Gelcoater Operations Manual 38. Install the catalyst tip over the spray tip. Note Use caution not to damage the O-rings on the front of the gun block. 39. Install the retainer to secure the catalyst tip and spray tip in place. 40.
  • Page 26 Patriot Multi-Color Gelcoater Operations Manual 10. Replace the pivot pin into the catalyst pump drive. 11. Check atomizing air pressure and adjust as necessary. 12. Lubricate the nozzle O-rings, stud O-rings, and gun front threads. 13. Install the nozzle, catalyst tip, and retaining ring onto the front of the gun. Daily Start Up –...
  • Page 27 Patriot Multi-Color Gelcoater Operations Manual Daily Shut Down – Internal Mix 36. Flush the mix housing and air assist with solvent. 37. Wipe the face of the air-assist nozzle after flushing. 38. Turn off the main air ball valve at the air manifold. 39.
