Brainstorm Electronics DXD-8 Operation Manual

Universal clock
Hide thumbs Also See for DXD-8:
Table of Contents

Advertisement

Quick Links

Download this manual

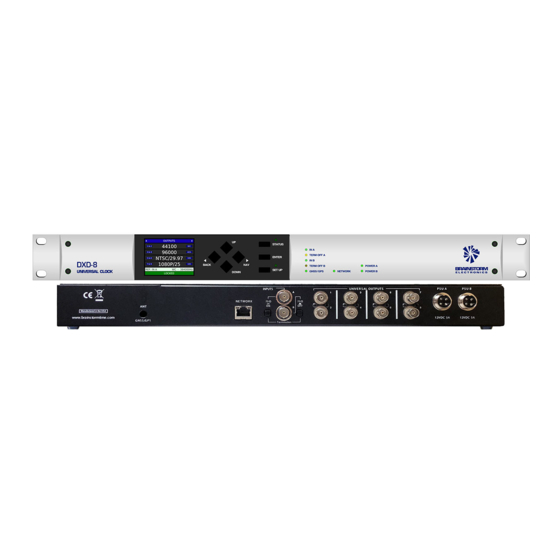

DXD-8
Universal Clock
Operations manual
Version 2.10
January 2021
All materials herein © Brainstorm Electronics, Inc.
Brainstorm Electronics reserves the right to change or modify the contents of this manual at any time.
Brainstorm Electronics, Inc.
www.brainstormtime.com

Advertisement

Table of Contents
loading

Related Manuals for Brainstorm Electronics DXD-8

Summary of Contents for Brainstorm Electronics DXD-8

  • Page 1 DXD-8 Universal Clock Operations manual Version 2.10 January 2021 All materials herein © Brainstorm Electronics, Inc. Brainstorm Electronics reserves the right to change or modify the contents of this manual at any time. Brainstorm Electronics, Inc. www.brainstormtime.com...

  • Page 2: Table Of Contents

    Page 2 DXD-8 User Manual (rev 2.10) Table of Content 1. Introduction ..........................2. Installation ..........................2.1 UNPACKING ....................2.2 INSTALLING THE DXD-8 ................. 3. Quick Start ..........................4. I/O’s Description and Cable Requirements ................. 4.1 ANTENNA (OPTION) ..................4.2 ETHERNET .....................
  • Page 3 DXD-8 User Manual (rev 2.10) Page 3 7.4 Network ........................7.4.1 IP ADDRESS (MENU 4.1) ................7.5 PTP ..........................7.6 GPS .......................... 7.7 Time .......................... 7.7.1 TIME STANDARDS (MENU 7.1) ..............7.7.2 REAL TIME CLOCK (MENU 7.2) ..............7.7.3 TIME & DATE DISPLAY (MENU 7.3) .............

  • Page 4: Introduction

    Rev 2 firmware brings some new functions to the DXD-8, mainly the possibility to install the optional PTP firmware and GPS hardware. Time and date are now part of the DXD-8. Rev 2 includes new menus 7.1 to 7.4, a new Main Rotation TIME & DATE display page and a new TIME status display.

  • Page 5: Installation

    You should read this manual to familiarize yourself with the DXD-8 features. The following simple steps are only provided to get you started right away. Connect the power supply to the Power A jack and plug the IEC cable into a wall outlet. The DXD-8 will turn on as soon as power is connected.

  • Page 6: I/O's Description And Cable Requirements

    4.5 DC POWER The DXD-8 requires 12VDC @ 18W. Acceptable range is 12VDC +/-15%. The external supply provided with the DXD-8 accepts 100 to 240 VAC input at 50 - 60 Hz so it is suitable for use anywhere in the world.

  • Page 7: Front Panel Display & Led's

    5.1 FRONT PANEL DISPLAY The DXD-8 front panel has a large full color display giving access to all the unit’s parameters and settings. In the normal operating mode, information is presented on the display in multiple pages referred to as the ‘Main Rotation’...

  • Page 8: Display

    Page 8 DXD-8 User Manual (rev 2.10) 6. Display 6.1 Main Rotation In the standard operating mode, with neither the Status mode nor the Set Up mode activated, information is presented on the display in multiple pages referred to as the ‘Main Rotation’.

  • Page 9: Status Mode

    DXD-8 User Manual (rev 2.10) Page 9 6.2 Status Mode Additional information pages are available in the Status Mode. To enter the Status Mode, press the [ ] button. When in STATUS Status mode, the Status LED is on. 6.2.1 STATUS INFORMATION PAGES LAYOUT Status pages are formatted similarly to the Main Rotation pages, with a green header but no footer.

  • Page 10: Set Up Mode

    Page 10 DXD-8 User Manual (rev 2.10) 6.3 Set Up Mode In Set Up mode, all parameters are accessible and can be changed by the user via the front panel. To enter the Set Up mode, press the [ ] button. The Set Up LED lights up. To exit the Set Up mode, press the [ ] key again and confirm that the...

  • Page 11: Menu Groups

    DXD-8 User Manual (rev 2.10) Page 11 6.3.4 MENU GROUPS In the current firmware revision, menus are organized in 10 separate groups: • 1. REFERENCE & SYNC • 1.1 Reference • 1.2 Sync Parameters • 2. BNC INPUT • 2.1 BNC Input A Set Up •...

  • Page 12: Menus Description

    For more on Alternate Reference, see chapter 11. Note that, if there is no alternate reference, the DXD-8 will always revert to INTERNAL if the reference disappears. There are no additional fields when the reference source is ‘INTERNAL’.

  • Page 13: Bnc Outputs

    7.3 BNC Outputs The DXD-8 generates 4 different reference signals simultaneously, each of them sent to one of the four BNC output pairs, as described below. Each of these universal output groups can output WC, AES, Video Sync or 10MHz.

  • Page 14: Audio Base Rate B (Menu 3.6)

    Page 14 DXD-8 User Manual (rev 2.10) used for musical applications, the speed adjustment is measured in cents (semi tone/100). The VSO range is +/- 200 cents, i.e. 2 whole tones (+12.2562% to -10.9101%). NOTES: When adjusting the VSO cents value in the menu, the changes take effect immediately. There is no need to press [ ] for every speed change.

  • Page 15: Network

    7.7 Time Without PTP or GPS, the base DXD-8 deals with references that do not include time and date such as video sync or word clock. However, the generated outputs are always referenced to the PTP epoch. For that reason, when no Time Of Day source is available to the DXD-8, the internal Real Time Clock will provide Time and Date.

  • Page 16: Real Time Clock (Menu 7.2)

    To purchase please contact your Brainstorm dealer. Feature Keys are unique for each serial number. The DXD/LTC is a firmware upgrade for the DXD-8. Please refer to the DXD/LTC manual for details on the Time Code menus. 7.9 Presets Ten different user settings configurations can be stored for quick recall. The 10 memory locations are labeled Preset 1 through Preset 10.

  • Page 17: Utility

    8. Time of Day Although PTP is optional on the DXD-8, it is PTP ready and Time of Day is an essential part of its design. In a PTP network, the devices all need to know the Time of Day, i.e. year, month, day, hour and seconds, even nanoseconds, to achieve frequency and phase synchronization.

  • Page 18: Rtc (Real Time Clock)

    BNC inputs is set as the reference). Current choices for external sources are PTP and GPS, both optional on the DXD-8. During a Time Jam, the DXD-8’s TOD will reset to the time of that source of time before locking to the BNC input.

  • Page 19: Off Speed Reference

    10. External Reference Failover (BNC) In the event of failure of the external reference, the DXD-8 has 2 different scenarios to insure that the Sync outputs remain safely uninterrupted.

  • Page 20: Lock Status

    12. Output Deviation Indication: The DXD-8 continuously monitors each output group and looks for timing deviations. The length of each frame is compared to the previous one and, if a deviation is found, it is reported on the OUTPUTS page of the main rotation display by changing the color of the blue boxes on the left side where the output groups are identified.

  • Page 21: Firmware Updates

    Page 21 13. Firmware Updates Firmware updates are done via Ethernet. Connect the Ethernet port of your DXD-8 to your network and point your browser to the DXD-8’s IP address. A simple firmware loader page will appear. 13.1 FIRMWARE LOADER PAGE Click on the [ ] button and select the firmware file on your hard disk.

  • Page 22: Firmware File Naming Convention

    SET UP mode. Only 3 menus are available while in the Uploader mode: Network, Brightness and Reboot. Note that settings from the Uploader are not saved, only the main application will do that. Point your browser to the IP address of your DXD-8. A page similar to the regular Firmware Loader page described above will appear.

  • Page 23: Non-Volatile Storage

    16. Power Two different 12VDC power sources can be connected to the DXD-8. Either one can be used to power the unit. Two front panel LED’s indicate if power is connected to the corresponding connector, A or B.

  • Page 24: Appendix

    ”PAL-” stands for slow PAL. 18.2 APPENDIX B: AUDIO BASE RATES The DXD-8 has 2 different audio base rates, defined in menus 3.7 and 3.8. Those are used to generate the audio signals, WC and AES. The table below shows the different rates available, based on 3 different sampling frequencies: 32KHz, 44.1KHz and 48KHz.

  • Page 25: Appendix D: Multiplier Rates

    Page 25 18.4 APPENDIX D: MULTIPLIER RATES With the 2 base rates properly set, multiples of those can be generated. Below is a table showing the different audio rates that can be generated by the DXD-8. Coefficient Base Rate 32000 none 32,000.000 Hz...

  • Page 26: Appendix F: Menus, Messages & Display

    Page 26 DXD-8 User Manual (rev 2.10) DXD-8 MENUS & DISPLAYS - Nov 17, 2020 18.6 APPENDIX F: MENUS, MESSAGES & DISPLAY PAGES Below is a graphical representation of most of the menus, messages and pages (main rotation & status mode) that appear on the DXD-8 front panel display.
