Veinlite PEDI Quick Start Manual

VEINLITE PEDI
Intended Use/Indications
• Examining the skin
surface, finding
veins and assisting
in vein access
in neonates and
newborns
• Easier visualization of veins in dark
skinned patients
Contraindications
• When used for internal examination
• When used without the disposable
plastic cover
BATERRY INSTRUCTIONS
Installing or Replacing Batteries
To install or replace the battery, press firmly on
the battery cap [3] and slide it off. Remove the
used battery. Install a new CR2 battery, oriented
as indicated by the markings inside the battery
compartment then slide the battery cover back
into place.
Attaching a Lanyard
A lanyard can be attached to the Veinlite PEDI,
via the hole at the bottom of the unit [4]. Use a
thin cord for this purpose.
Warranty Information
The Veinlite PEDI has a one year parts and labor
warranty. Please provide the serial number located
under the battery or the outside of the box when
you contact Translite LLC for any warranty issues.
The warranty is valid only if the Veinlite PEDI is
used according to the manufacturer's instructions.
Before returning the Veinlite PEDI to TransLite for
repair, you must call or e-mail TransLite to obtain a
return authorization code and shipping information
before sending your device. No refunds will be
given for unauthorized shipping.
Explanation of Symbols
SYMBOL EXPLANATION
REF Model Number
SN Serial Number
Manufacturer
EC Representative (EU Only)
EC REP
Do not dispose as unsorted
municipal waste.
EC REP
Healthcare & Education Centre Tel: +44 1704 544 944
The Church, Portland Street Fax: +44 1704 544 050
Southport, PR81HU, UK
This product is covered by Patents. Patent Numbers:
7,874,698; 7,841,751; 8,032,205; 8,177,808
VPEDI DFU Rev 6 1116
Manufacturer, TransLite LLC
Tel: (281) 240 3111 www.veinlite.com
Fax: (281) 240 3122 info@veinlite.com
Copyright 2016 © TransLite, LLC. All rights reserved. These instructions
or any part thereof may not be reproduced by any means, without prior
permission of TransLite, LLC.
Veinlite PEDI

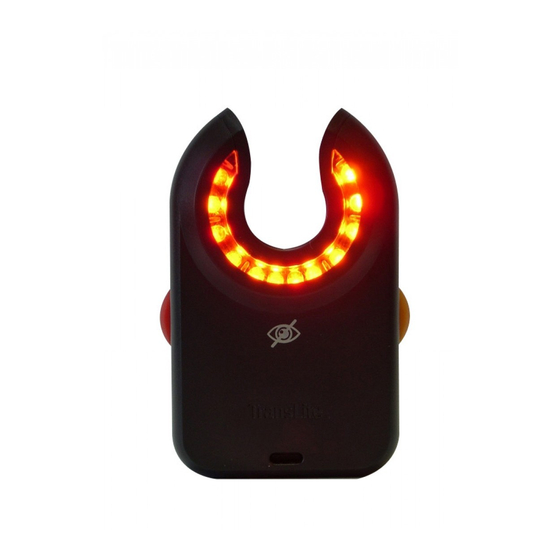

Figure 1. Veinlite PEDI
[1] Clear Window
[2] On/Off Button
[3] Battery Cap
[4] Lanyard Hole
DIRECTIONS FOR USE
Description
The TransLite Veinlite PEDI is a hand-held
battery powered transillumination device for
visualizing veins and superficial blood vessels
in neonates (0-24 mo). It utilizes the patented*
transillumination technique known
as side-transillumination, which enables the
Veinlite PEDI to uniformly illuminate a small
FM 633388
region of skin and subcutaneous tissue,
anywhere on the body, without any areas of
shadow. The shadow-free side-transillumination
technique allows better visualization of veins
than any other transillumination method.
®
[1]
[2]
[4]
[3]
