Veinlite LED+ Manual

Attachments
Two patented*** attachments are included with the Veinlite LED+:
A. A snap-on light shield to reduce interference from bright overhead lighting.
B. A snap-on pediatric adapter to reduce the size of the viewing area for use with infants.
The diagrams below indicate how to attach the light shield and neonatal adapter.
A. Veinlite LED+ Light Shield
Warnings
• Veinlite LED+ is designed for external examination only.
• To avoid contamination of the device, Veinlite LED+ must be used with the
disposable plastic cover.
• To avoid the spread of infection, always change the disposable plastic cover
between patients and wipe the new cover with a germicidal wipe.
• These devices are intended for use only by clinicians trained in performing
vascular access, or under the supervision of a clinician.
• Do not look directly into the LEDs while on.
Warranty Information
The Veinlite LED+ has a one year parts and labor warranty. Please provide the serial
number located under the battery or the outside of the box when you contact Translite
LLC for any warranty issues. The warranty is valid only if the Veinlite LED+ is used
according to the manufacturer's instructions. Before returning the Veinlite LED+ to
TransLite for repair, you must call or e-mail TransLite to obtain a return authorization
code and shipping information before sending your device. No refunds will be given for
unauthorized shipping.
Explanation of Symbols
SYMBOL EXPLANATION
REF Model Number
SN Serial Number
Manufacturer
EC Representative (EU Only)
EC REP
Do not dispose as unsorted
municipal waste.
Manufacturer Tel: (281) 240 3111
TransLite LLC Fax: (281) 240 3122
Copyright 2016 © TransLite, LLC. All rights reserved. These instructions or any part thereof may not be reproduced by
any means, without prior permission of TransLite, LLC.
B. Veinlite LED+ Pediatric Adapter
EC REP
Healthcare & Education Centre
The Church, Portland Street
Southport, PR81HU, UK
Tel: +44 1704 544 944
Fax: +44 1704 544 050
This product is covered by Patents.
Patent Numbers: 7,874,698; 7,841,751;
8,032,205; 8,177,808
VLEDP DFU 1 1016
www.veinlite.com
info@veinlite.com
FM 633388
4
Veinlite LED+
[1]
[2]

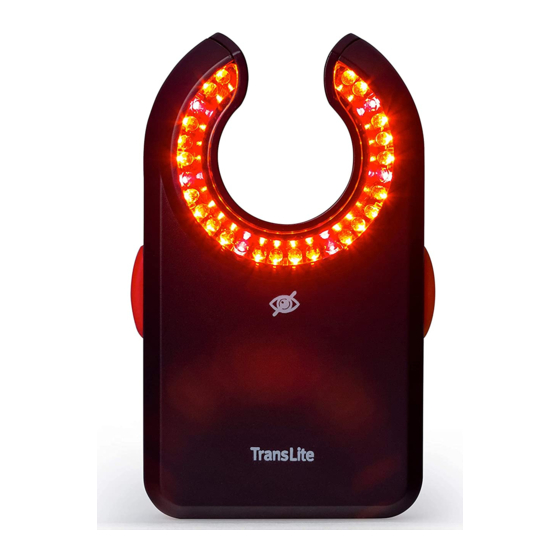

Figure 1. Veinlite LED+
[1] Clear Window
[2] On/Off Button
[3] Battery Cap
[4] Charging Socket
DIRECTIONS FOR USE
Description
The Veinlite LED+ is a hand-held battery powered transillumination device for visualizing
®
veins and superficial blood vessels. Veinlite utilizes the patented* transillumination technique
known as side-transillumination, which uniformly illuminates a small region of skin and
subcutaneous tissue without any shadow areas. The shadow-free side-transillumination
technique allows better visualization of veins than any other transillumination method.
The LEDs emit light with the optimal wavelength for highlighting the contrast between
the venous blood vessels and surrounding tissue.
Intended Use/Indications
• Venous access in children/adult
patients
• Patients with a history of difficult
venous access
• Improved visualization of veins
in patients with different
pigmented skin types
• Improved visualization of veins
in geriatric patients
®
[3]
[4]
Contraindications
• When used for internal
examination
• When used without the
disposable plastic cover
1
