Crest Audio CSBM Manual page 2

BEFORE BEGINNING
INSTALLATION:
WARNING: The Crest Company holds no
responsibility for incorrectly installed
TV Sound Bar Mounts.
Consider the below points to determine
appropriate usage of the product and its
components
- TV dimension
- TV wall mount dimension and pattern
- Sound bar dimension and holes positioning

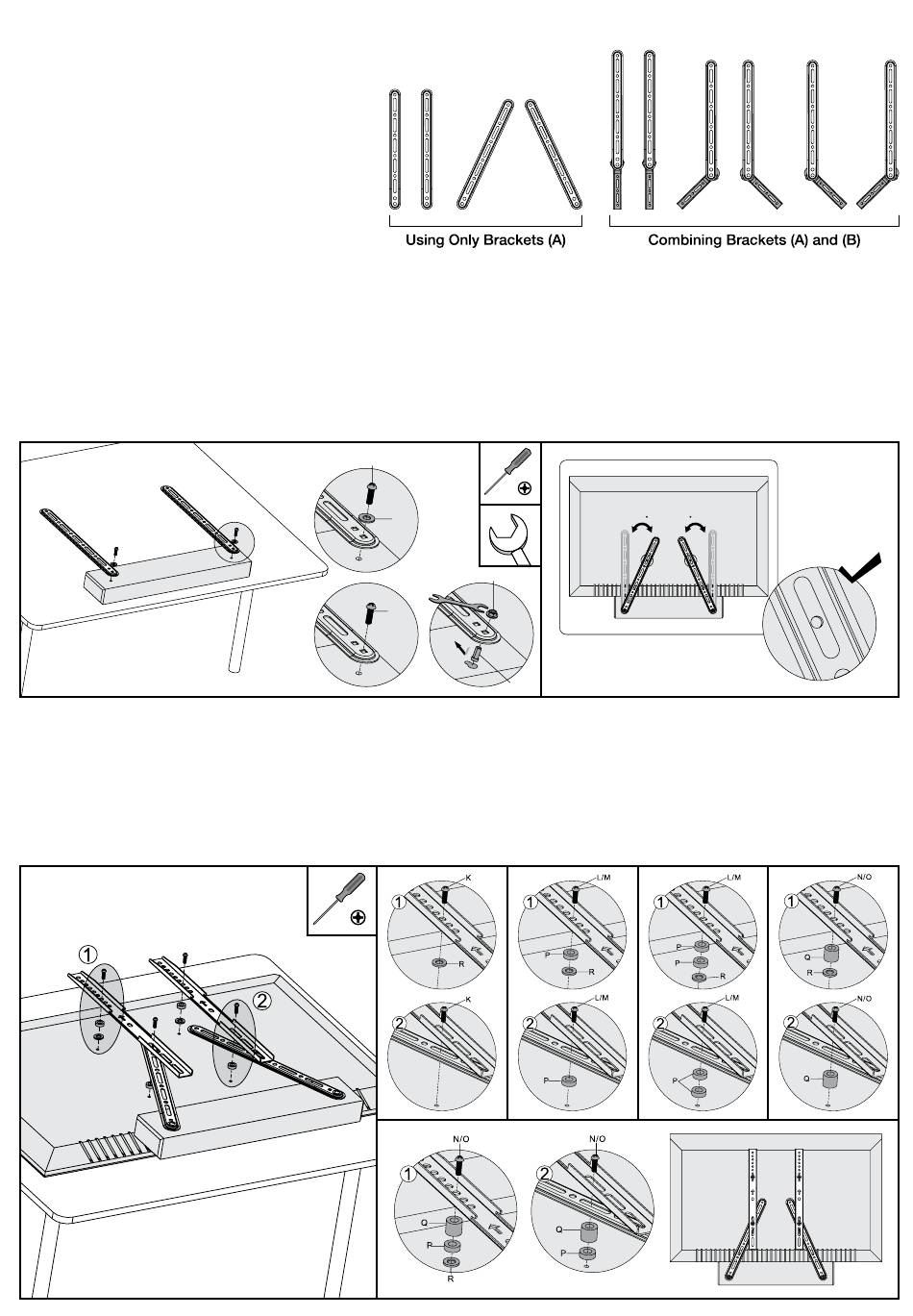

Option A: Using only Brackets (A)
STEP 1: ATTACH BRACKETS TO BACK OF SOUND BAR
1. Sort through the provided bolts and fastening mechanisms (E-J) until you find the correct size that fits.
2. Using a Phillips head screwdriver or adjustable spanner, fix brackets (A) to back of sound bar ensuring not to over tighten.
3. Place brackets (A) and sound bar, fixed together, onto back of TV to determine the best mounting layout for your TV and
sound bar combination.
STEP 2: FIX SOUND BAR ONTO BACK OF TV
1. Place TV wall mount brackets (not included) on top of brackets (A).
2. Sort through the provided bolts (K-O) until you find the correct size that easily fits through brackets and into the back of your
TV and fits snugly. If you feel resistance stop immediately and select a smaller bolt. Once you have selected the right bolt size
use the spacers and washers as shown in the drawings. If no bolts fit you will need to go to your local hardware supplier to
find the correct parts that fit. Option A: Using only Brackets (A)
POSSIBLE SOUND BAR MOUNT LAYOUTS:
E/ F
H
J
G
I
