MFP5FM
TV Wall Mount
Full Motion
This TV Wall Mount allows you to move
your TV at all angles and extends out
up to 41cm from your wall
Compatible TV Size
This TV Wall Mount fits 25-55"
25-55"
(63-140cm) TV Screens
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 400x400mm (WxH)
400x400
mm
Maximum TV Weight
HOLDS
This TV Wall Mount supports TVs
35
kg
weighing up to 35kg

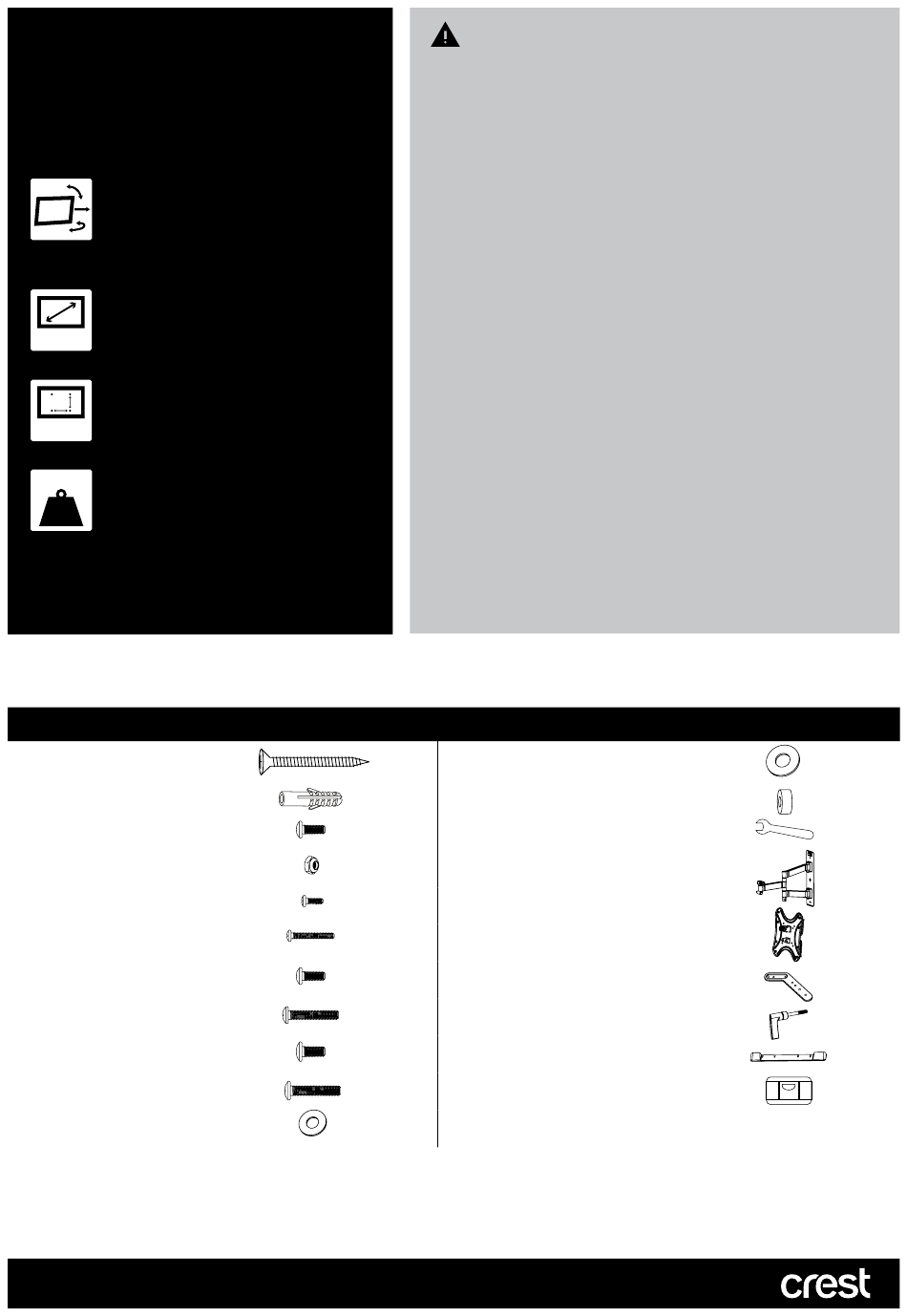

Hardware Kit Contents
ITEM DESCRIPTION
A
Screw
B
Concrete Anchor
C
M6 x 12mm Bolt
D
M6 Locknut
E
M4 x 12mm Bolt
F
M4 x 20mm Bolt
G
M6 x 12mm Bolt
H
M6 x 30mm Bolt
I
M8 x 12mm Bolt
J
M8 x 30mm Bolt
K
M6 Washer
SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
10.
Please retain these instructions for future reference.
QTY
ITEM
DESCRIPTION
L
M8 Washer
3
M
3
Spacer
8
N
S10 Wrench
8
O
Wall Plate
4
4
P
Display Plate
4
Q
Display Plate Adaptors
4
R
Tilt Adjustment Knob
4
S
Plastic Cover
4
T
Spirit Level (included)
4
QTY
4
8
1
1
1
4
1
2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crest Audio MFP5FM
Summary of Contents for Crest Audio MFP5FM
- Page 1 SAFETY FIRST MFP5FM 1. Installation of this TV Wall Mount will be easier with two people. TV Wall Mount 2. Some images in this guide may vary slightly from the actual components supplied. 3. Ensure this instruction manual is completely read and understood before attempting installation.
-
Page 2: Tools Required
Tools Required DRYWALL INSTALLATION (TIMBER SUPPORTS): MASONRY INSTALLATION: • Adjustable spanner/socket set • Adjustable spanner/socket set • Philips head screwdriver • Philips head screwdriver • Power drill • Power drill with hammer function • High speed 3mm drill bit • 8mm Masonry drill bit •... - Page 3 Figure 3 Figure 2 Step 3: Attach Display Plate 1. Using a second person for assistance, lay your TV face down on something soft so as not to scratch the TV screen. 2. Check the back of your TV to find the appropriate mounting pattern. If the mounting pattern is spaced more than 200mm x 200mm apart, you will need to attach the Display Plate Adaptors (Q) to the Display Plate (P).
- Page 4 Step 4: Final Assembly 1. With the help of another person, place the Display Plate with your TV attached into the Wall Plate. Carefully lift and hook the front part of the mount onto the back part of the mount. Do not release the display until the mount is securely connected.
