Dutton-Lainson Strongarm TW4000 Owner's Manual

TW4000, TW4015, TW9000 & TW9015
ELECTRIC WINCH RATING
3500
3000
2500
2000
1500
1000
500
0
10
LENGTH OF STRAP ON REEL (FT.)
GUIDE TO ROLLING LOAD CAPACITY**
Maximum weight in pounds and kilograms rolling load.
MODEL
5% 10%
(3°) (6°)
TW4000
10,000 lbs. 7,500 lbs. 5,100 lbs. 3,900 lbs. 2,700 lbs. 2,200 lbs.
TW4015
4,536 kg 3,402 kg 2,313 kg
20,000 lbs. 15,000 lbs. 10,200 lbs. 7,700 lbs. 5,500 lbs. 4,500 lbs.
TW9000
9,072 kg 6,804 kg 4,627 kg
TW9015
(**) All capacities shown are with 2' of strap on the reel and 10% rolling friction factor.
For full reel of line adjust capacities according to graph above. Note 5% incline is
one-half foot rise in ten feet.
TW series electric winches are built for trailer loading and other horizontal pulling applications. They are not to
be used for lifting, supporting or transporting people or loads over areas where people could be present or for
any vertical lifting or lowering applications.
BEFORE ATTEMPTING TO INSTALL, OPERATE OR SERVICE
THE STRONGARM ELECTRIC WINCH. FAILURE TO COMPLY
WITH INSTRUCTIONS COULD RESULT IN SERIOUS OR FATAL
TW9000
INJURY. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
WINCH RATINGS
20 30 40
PERCENT INCLINE
20% 30% 50%
(11°) (17°) (26°)
1,769 kg 1,225 kg
3,493 kg 2,495 kg 2,041 kg
OWNER'S MANUAL
ELECTRIC
T R A I L E R
WINCHES
WARNING:
READ INSTRUCTIONS CAREFULLY

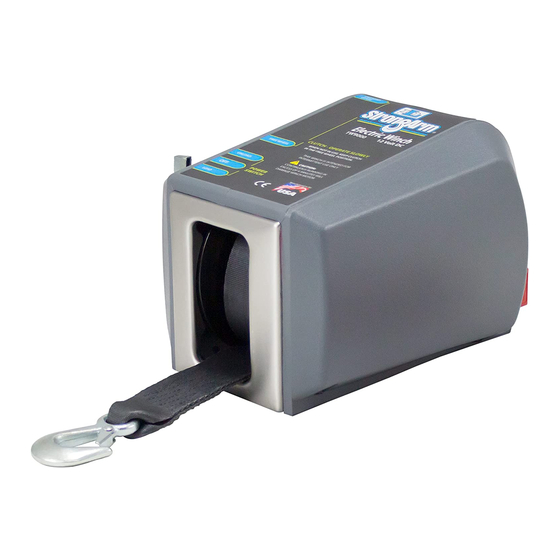

StrongArm TW electric trailer winches are manufac-
tured for loading and unloading of boats, personal
watercraft, vehicles, etc. The TW4000 & TW4015 winch
features power-in, free wheel out and 20' of 2" wide
strap. The TW9000 & TW9015 features power-in, pow-
er-out, free wheel and 20' of 2" wide strap.
Note that as strap builds up on the reel, the pulling
capacity of the winch decreases (see graph at left).
For intermittent use only. Ratings at left are based on
6' pull. For longer pulls adequate motor cooling periods
must be allowed.
TW4000 & TW4015- MAXIMUM CONTINUOUS RUN
TW9000 & TW9015- MAXIMUM CONTINUOUS RUN
CAUTION:
EXCESS OF 3 MINUTES (TW4000 & TW4015) AND
4 MINUTES (TW9000 & TW9015) WILL DAMAGE
WINCH MOTOR.
70%
LOAD
(35°) CAPACITY
1500 lbs.
998 kg 681 kg
3,000 lbs.
1,362 kg
12 Volt DC
TIME 3 MINUTES
TIME 4 MINUTES
CONTINUOUS RUNNING
APPROXIMATE LOAD SPEED
(FT./MIN.)
NO LOAD
Full Empty
Reel Reel
TW4000
22 11
TW4015
TW9000
15 9
TW9015
E
N
G
L
I
S
H
IN
FULL LOAD
Full Empty
Reel Reel
8.2 4.4
6.3 4.3
