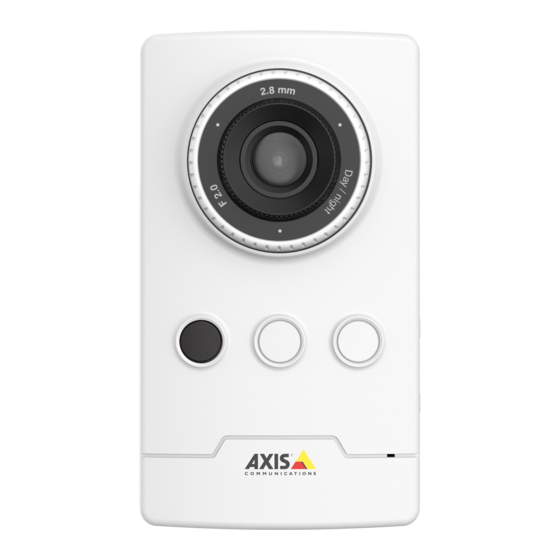

Axis M1045-LW User Manual
Hide thumbs
Also See for M1045-LW:
- Installation manual (30 pages) ,
- User manual (62 pages) ,
- Installation manual (34 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis M1045-LW
Summary of Contents for Axis M1045-LW
- Page 1 AXIS M1045-LW Network Camera User Manual...
-
Page 2: Table Of Contents
AXIS M1045-LW Network Camera Table of Contents Product overview ......... . . -
Page 3: Product Overview
AXIS M1045-LW Network Camera Product overview Product overview Focus lock ring Focus ring IR LED Status LED Control button WLAN pairing button Network connector SD card slot Power connector... -
Page 4: Get Started
If the network is set up with another security method than WPA2-PSK, see Advanced wireless settings on page 11 . Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support. -
Page 5: Access The Device
1. Open a browser and enter the IP address or host name of the Axis device. If you do not know the IP address, use AXIS IP Utility or AXIS Device Manager to find the device on the network. 2. Enter the username and password. If you access the device for the first time, you must set the root password. See Set a new password for the root account on page 5 . -
Page 6: Webpage Overview
AXIS M1045-LW Network Camera Get started Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle... - Page 7 AXIS M1045-LW Network Camera Get started Settings tabs...
-
Page 8: Additional Settings
AXIS M1045-LW Network Camera Additional settings Additional settings Adjust the image This section includes instructions about how to configure your device. If you want to learn more about how certain features function, go to Learn more on page 13. How to change the camera focus... -
Page 9: View And Record Video
2. Turn on WDR. 3. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. View and record video This section includes instructions about how to configure your device. -
Page 10: Set Up Rules And Alerts
1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active. -
Page 11: Advanced Wireless Settings
Certification Authority. The network authenticates the client using an identity and a password. To gain access to the protected network, the Axis product presents its identity and password to the network access point. If these credentials... - Page 12 AXIS M1045-LW Network Camera Additional settings Important To ensure successful certificate validation, time synchronization should be performed on all clients and servers prior to configuration. Configure the wireless settings using WPA -/WPA2-Enterprise and EAP-PEAP/MSCHAPv2 1. Go to Settings > System > Wireless 2.
-
Page 13: Learn More
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 14: Applications
Target bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to axis.com. -
Page 15: Troubleshooting
5. Use the installation and management software tools to assign an IP address, set the password, and access the video stream. The installation and management software tools are available from the support pages on axis.com/support. It is also possible to reset parameters to factory default through the web interface. Go to Settings > System > Maintenance and click Default. -
Page 16: Technical Issues, Clues And Solutions
Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the... -
Page 17: Performance Considerations
IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured). - Page 18 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
-
Page 19: Specifications
The WLAN pairing button is used for connecting to an access point through push button configuration (PBC). To find out more, go to . Connectors Network connector RJ45 Ethernet connector. Power connector This microUSB type B connector is for power only. We recommend using Axis microUSB power supply. - Page 20 User Manual Ver. M12.3 AXIS M1045-LW Network Camera Date: April 2021 © Axis Communications AB, 2016 - 2021 Part No. T10079840...
