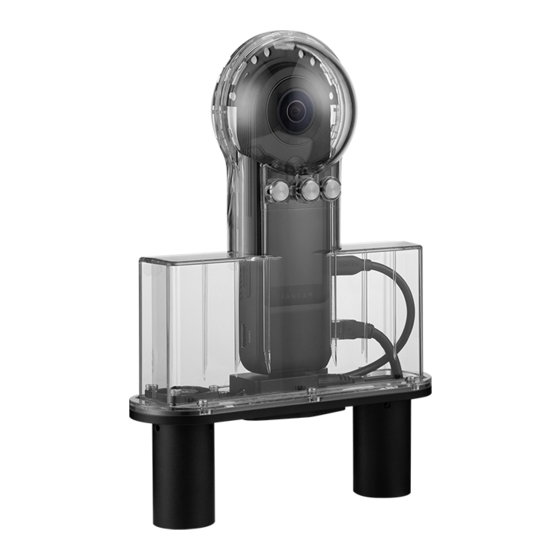

QooCam 8K Enterprise Rainproof Case
Quick Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enterprise QooCam 8K and is the answer not in the manual?

Questions and answers

Summary of Contents for KanDao Enterprise QooCam 8K

  • Page 1 QooCam 8K Enterprise Rainproof Case Quick Guide...
  • Page 2 部件介绍 Names of Parts ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ Q键 快门键 开关键 ❶ ❷ ❸ Q Button Shutter Button Power Button 三脚架安装孔 直管 U形管 ❹ ❺ ❻ Tripod Mounting Hole Straight Tube U Type Tube 长螺丝 短螺丝...
  • Page 3 安装步骤 Installation Steps ① 取出底盖 Remove the bottom cover ② 安装直管/U形管 (用短螺丝拧好固定) Install straight pipe/U-shaped pipe (fixed with short screws) ③ 拧开底盖DC线压线螺丝 (短) Unscrew the DC cable crimping screw (short) of the bottom cover ④ DC电源线从直管/弯管插入电源孔, 并拧好螺丝 (短) 固定 Insert the DC power cord into the power hole from the straight pipe/elbow, and tighten the screw (short) to fix it...
  • Page 4 安装步骤 Installation Steps ⑤ 安装相机, 并插上USB-C电源线及网线 Install the camera and plug in the USB-C power cord and network cable ⑥ 安装防雨罩, 并拧好螺丝 (长) 固定 Install the rain cover and tighten the screws (long) to fix 防雨壳正放的时候, 用直管装配。 防雨壳倒放的时候, 用弯管装配。 When the rainproof shell is installed, When the rainproof shell is inverted, assemble it with straight pipe.
