Operating Instructions
Busch-Jalousiecontrol
Pos : 2 /#N eus truktur #/Online-Dokumentation (+KN X)/Titelbl ätter/Ti mer/Titelbl att 6411 Jal ousiec ontrol II-Ei ns atz @ 30\mod_1348658450813_15.doc x @ 239241 @ @ 1
Busch-Jalousiecontrol

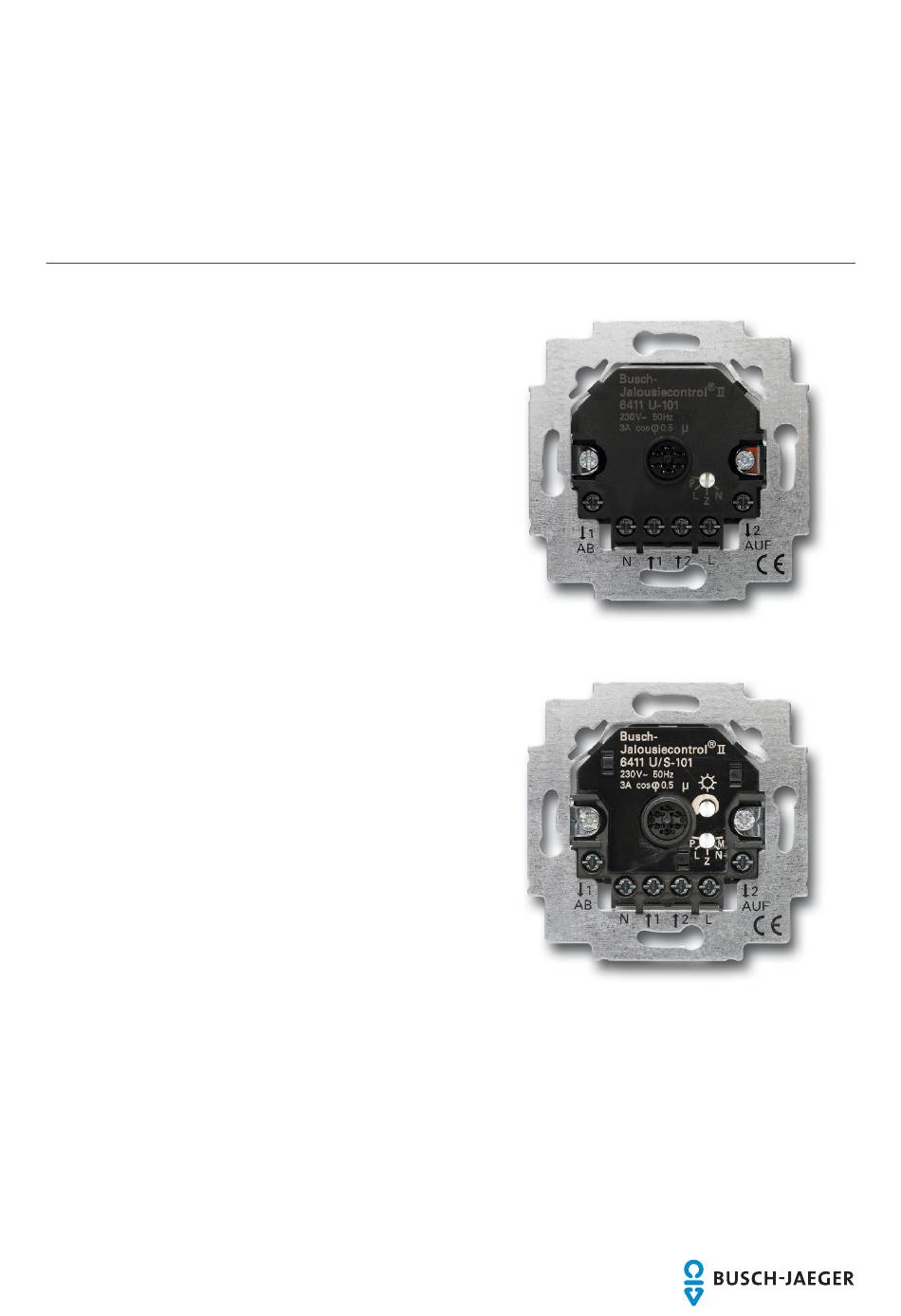

Flush-mounted inserts
6411 U-101
6411 U/S-101
=== Ende der Liste für T extmar ke Cover ===
®
II
®
II
Advertisement
Table of Contents
Related Manuals for ABB Busch-Jaeger Busch-Jalousiecontrol II Series
Summary of Contents for ABB Busch-Jaeger Busch-Jalousiecontrol II Series
- Page 1 1473-1-8162 │ Rev. 01 │ 17.12.2012 Operating Instructions ® Busch-Jalousiecontrol Pos : 2 /#N eus truktur #/Online-Dokumentation (+KN X)/Titelbl ätter/Ti mer/Titelbl att 6411 Jal ousiec ontrol II-Ei ns atz @ 30\mod_1348658450813_15.doc x @ 239241 @ @ 1 ® Busch-Jalousiecontrol Flush-mounted inserts 6411 U-101 6411 U/S-101 === Ende der Liste für T extmar ke Cover ===...
-
Page 2: Table Of Contents
Operating Instructions ® Busch-Jalousiecontrol Pos : 4 /#N eus truktur #/Online-Dokumentation (+KN X)/Inhalts verz eic hnis (--> Für alle D okumente <--)/Inhalts verz eichnis @ 19\mod_1320649044386_15.doc x @ 109653 @ @ 1 Safety ..................................3 Intended use ................................3 Environment ................................3 Setup and function .............................. -
