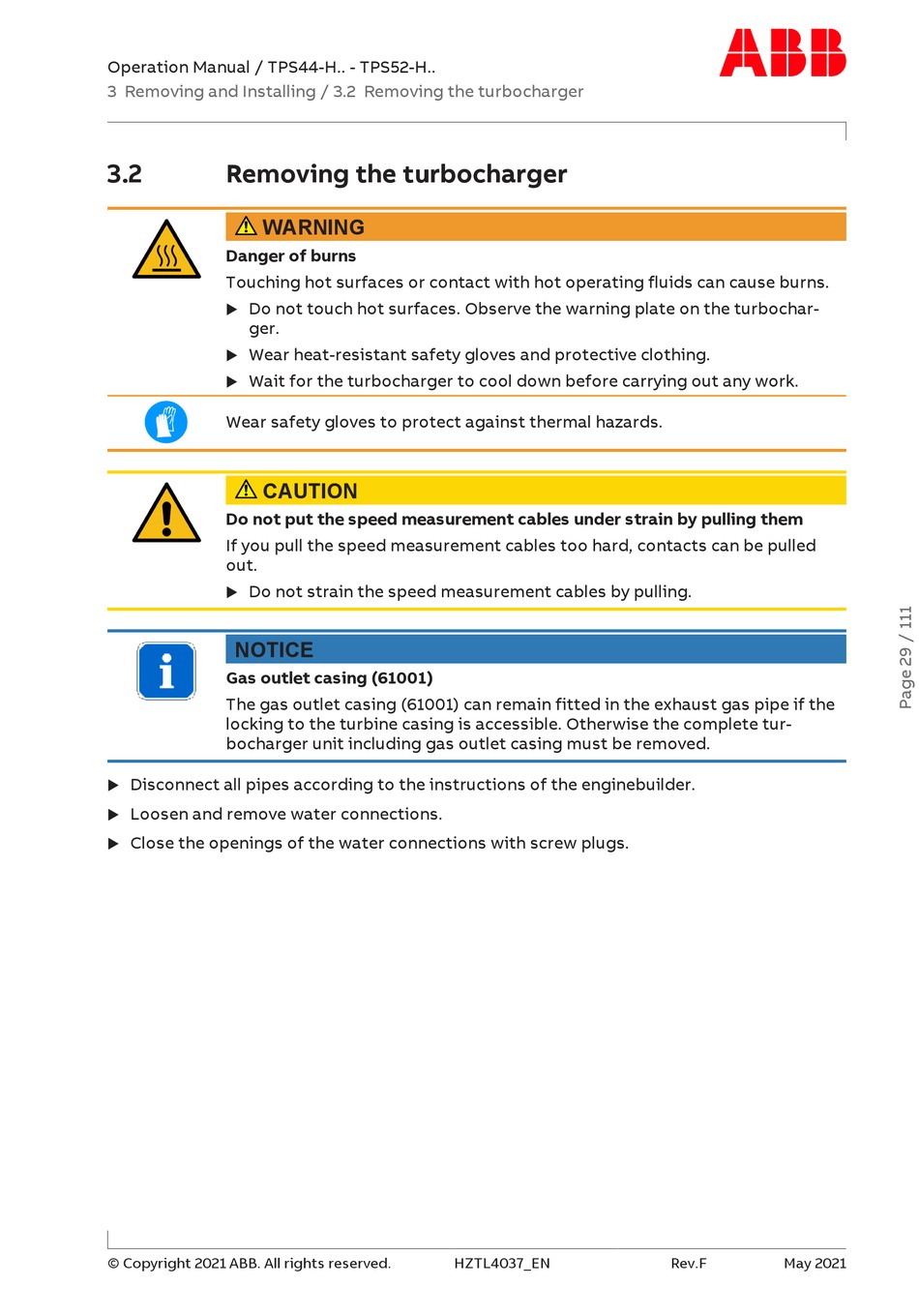

Operation Manual / TPS44-H.. - TPS52-H..
3 Removing and Installing / 3.2 Removing the turbocharger
3.2

Removing the turbocharger

WARNING
Danger of burns
Touching hot surfaces or contact with hot operating fluids can cause burns.
Do not touch hot surfaces. Observe the warning plate on the turbochar-
u
ger.
Wear heat-resistant safety gloves and protective clothing.
u
Wait for the turbocharger to cool down before carrying out any work.
u
Wear safety gloves to protect against thermal hazards.
CAUTION
Do not put the speed measurement cables under strain by pulling them
If you pull the speed measurement cables too hard, contacts can be pulled
out.
Do not strain the speed measurement cables by pulling.
u
NOTICE
Gas outlet casing (61001)
The gas outlet casing (61001) can remain fitted in the exhaust gas pipe if the
locking to the turbine casing is accessible. Otherwise the complete tur-
bocharger unit including gas outlet casing must be removed.
Disconnect all pipes according to the instructions of the enginebuilder.
u
Loosen and remove water connections.
u
Close the openings of the water connections with screw plugs.
u
