SEC 5. EXPLODED VIEWS

• Items with no part number and no description are not stocked because they are seldom required for routine service.
• The construction parts of an assembled part are indicated with a collation number in the remark column.
• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
5-1. XBR-55X805C/807C/809C/810C

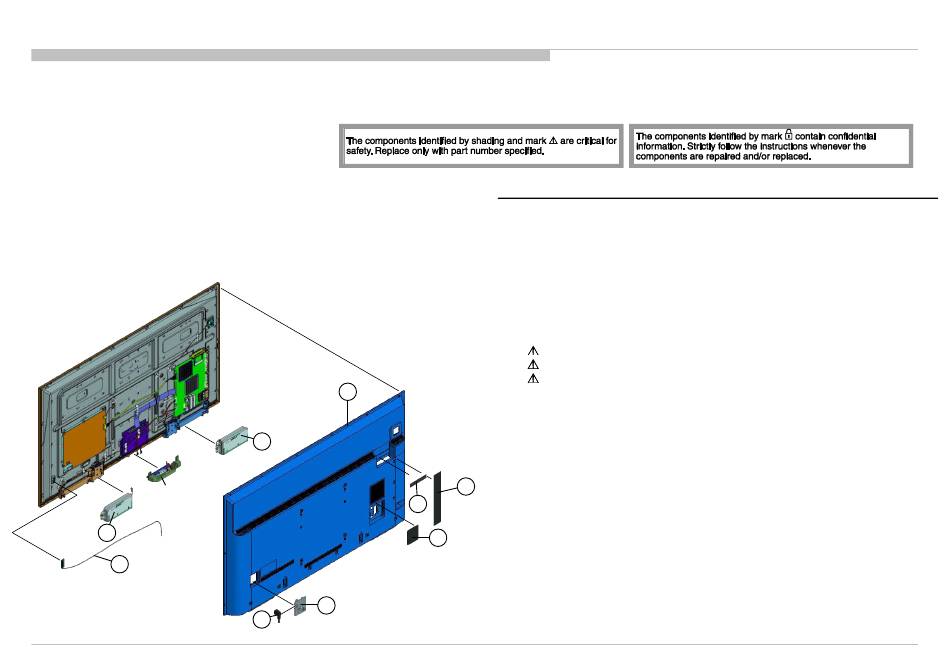

5-1-1. REAR COVER

SMART CORE
207
206
XBR-55/65X800C,805C,807C,809C,810C
201
208
209
203
204
205
REF. No. PART No. DESCRIPTION
201 4-569-944-02 COVER, REAR (L SWN) A
201 4-569-944-12 COVER, REAR (L SWN) A
202 4-563-755-01 LABEL, SIDE TERMINAL (W)
202 4-563-755-21 LABEL, SIDE TERMINAL (W)
203 4-563-764-01 LABEL, REAR TERMINAL
203 4-563-765-01 LABEL, REAR TERMINAL
204 4-299-531-01 AC COVER
205 1-839-692-12 POWER-SUPPLY CORD (WITH CONN.)
205 1-839-695-12 POWER-SUPPLY CORD (WITH CONN.)
205 1-839-696-13 POWER-SUPPLY CORD (WITH CONN.)
206 1-754-950-11 BT ANTENNA
207 1-858-963-21 SPEAKER BOX ASSY (R)
208 1-858-963-11 SPEAKER BOX ASSY (L)
209 4-567-609-01 LABEL, CI
202
MARK
CO1
UC2/ LA8/ ECU/
AR4
UC2
LA8/ CO1/ ECU/
AR4
UC2
LA8/ CO1/ ECU/
AR4
AR4
LA8/ ECU
UC2/ CO1
CO1
139
