Bestplay LUX Manual

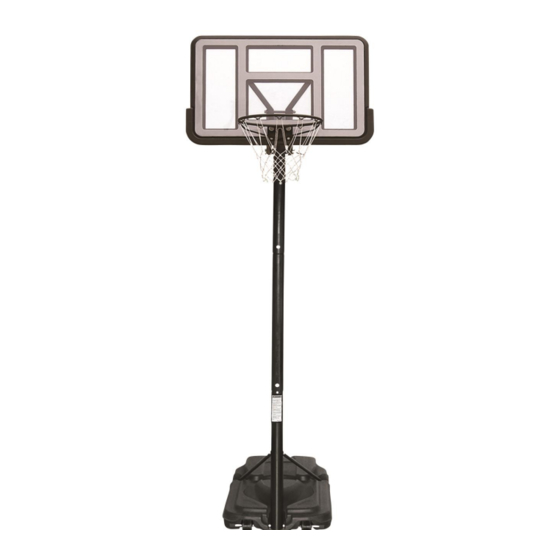

Basketball stand
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Basketballstander LUX/LUX safe
retain for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUX and is the answer not in the manual?

Questions and answers

Related Manuals for Bestplay LUX

Summary of Contents for Bestplay LUX

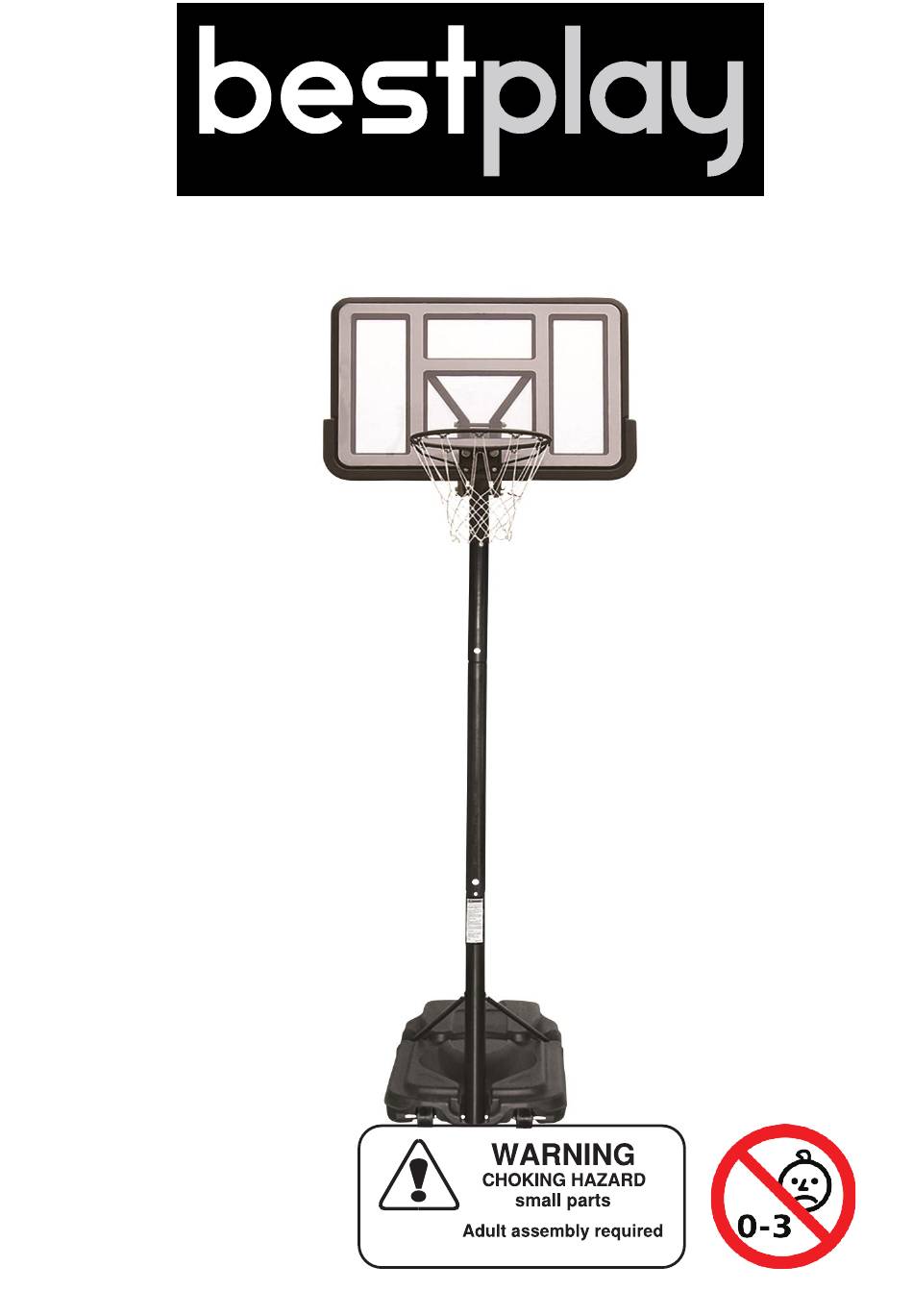

  • Page 1 Basketballstander LUX/LUX safe retain for future reference...
  • Page 2 Sikkerhedsadvarsel Læs alle instrukser og færdiggør samlingen før brug. Hvis basketballstanderen er samlet og bruges korrekt, kan den bruges til mange timers sjov og træning. Tjek basketballstanderen før hvert brug. Hvis dele er slidte, i stykker eller manglende så udskift disse. Spænd dele der måtte være løse. Hav altid opsyn af en voksen hvis børn benytter basketballstanderen.
  • Page 3 Før samling af basketballstanderen 1. Der skal være 2 personer til at opsamle basketballstanderen. 2. Lad ikke basketballstanderen stå frit, før sandbasen er påfyldt med sand. 3. Brug ikke vand da dette vil sive ud af sandbasen. 4. Denne basketballstander er ikke godkendt til at ”dunke” i. Indhold...
  • Page 5 Samling af basketballstanderen Trin 1 Før hjulaksel (J) igennem de 2 hjul (H) og det nederste rør (D) på sandbasen (C). Fastgør de 2 støttestænger (G) på det nederste rør (D) med bolte (1) og skiver (O-1). Spænd derefter den anden ende af støttestængerne (G) fast i sandbasen (C) med bolte (2), skiver (O-1) og møtrikker (N-1).
  • Page 6 Trin 2 1. Fastgør support beslaget (K) og kurven (B) på bagpladen (A) med bolte (3), skiver (O-1) og møtrikker (N-1). 2. Montér nettet (B-2) på kurvens (B-1) kroge.
  • Page 7 Trin 3 Før toprøret (F) nedefra og op igennem det midterste rør (E). Spænd de to rør sammen med en bolt (6) og møtrik (I). VIGTIGT! 1. 2. 2. Montér det øverste rør (F) på beslaget (K) og spænd med bolte (5), skiver (O-2) og møtrikker (N-2).
  • Page 8 Trin 4 1. Sæt rør (D) og rør (E) sammen og spænd med bolt (4) og møtrik (N-2). 2. Højden kan efterfølgende justeres med bolt (6) og møtrik (I).
  • Page 9 Trin 5 OBS! Der skal være 2 personer til at påfylde sand i sandbasen. Brug ikke vand da dette vil sive ud eller frostspringe. Placér basketballstanderen hvor den skal benyttes og afmonter låget til sandbasen. Justér basketballstanderen til laveste højde og tilt standeren i 45 grader. Påfyld derefter sand i sandbasen.
  • Page 10 Bestplay A/S Knullen 22 5260 Odense S Tlf. +45 70 22 72 92 Danmark SFP 19.1...
  • Page 11 Basketball stand LUX/LUX safe retain for future reference...

  • Page 12: Maintenance

    Safety warning Read all instructions and complete all assembly before using. When properly assembled and used as intended, this basketball stand is designed to provide many hours of training and playing enjoyment. Inspect the basketball stand before every use. Make sure all parts are correctly and securely positioned and attached.

  • Page 13: Before Assembling

    Before assembling 1. It is recommended to be at least two persons to assemble this product. 2. Do not leave the basketball stand without support before the sandbase has been filled with sand. 3. Do not use water, as this can leak. In cold weather water may freeze and damage the base.
  • Page 14 Boltkit 801629 Recommended tool...
  • Page 15 Assembly Step 1 Insert wheel axle (J) through the two wheels (H) and the lower main pipe (D) on the sandbase (C). Fasten the two support-bars (G) onto the lower main pipe (D) with bolts (1) and washers (O-1). Now fasten the other end of the support-bars (G) onto the sandbase (C) using bolts (2), washers (O-1) and nuts (N-1).
  • Page 16 Step 2 1. Fasten the back mounting bracket (K) by inserting bolts (3) through washers (O-1) and the holes in the basket (B) on the back-board (A). On the backside let the same bolts through the back mounting bracket (K) as well and fasten them with washers (O-1) and nuts (N-1).
  • Page 17 Step 3 1. Insert the top main pipe (F) from below and through the middle main pipe (E). Tighten the two pipes with bolts (6) and finger-nut (I). IMPORTANT! 1. 2. 2. After (F) has been put through (E), the back mounting bracket can be fastened onto top main pipe (F).
  • Page 18 Step 4 1. Now assemble the upper part with the base by putting middle main pipe (E) into lower main pipe (D). Tighten with bolts (4) and nuts (N-2). 2. The height of the basketball stand can now easily be adjusted using the bolt (6) and finger-nut (I).
  • Page 19 Step 5 Attention! It is recommended to be two persons when filling the base with sand. Do not use water, as it can leak. In cold weater the freezing may cause damage if the base is filled with water. 1. Place the basketball stand at a suitable location and unscrew the lid of the sandbase. 2.
  • Page 20 Bestplay A/S Knullen 22 5260 Odense S Tlf. +45 70 22 72 92 Denmark SFP 19.1...

This manual is also suitable for:

Lux safe
