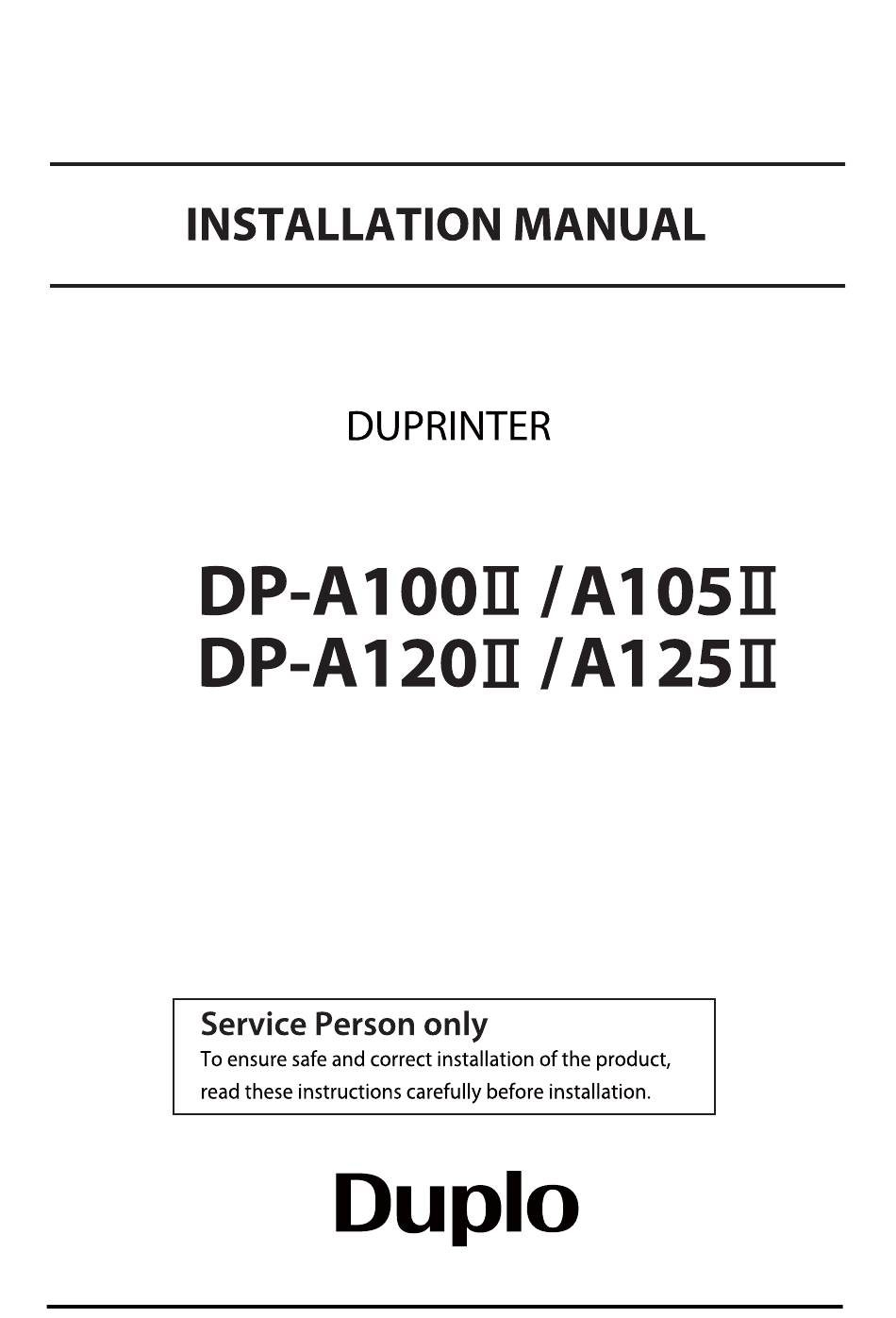

Summary of Contents for Duplo DP-A100 II
- Page 2 Safety Precautions Warning Terminology The following warning terminology is used in the this installation instructions. Indicates a high degree of potential danger. Failure to heed the warning WARNING may lead to death or serious injury. Indicates a medium degree of potential danger. Failure to heed the caution CAUTION may lead to injury or damage to property.
- Page 3 1. Unpacking Checks 1. Package for 1 complete DUPRINTER: Printer unit Model name: DP-A100 /A105 /A120 / A125 2. Unpack the package. IMPORTANT Carry out unpacking in a place that is safe for the work. 3. Check the contents. ● Printer unit package <<DP-A100 /A120 >>...
- Page 4 2. Installation 1. Place the printer unit at the installation site. CAUTION ● Lifting of the printer unit should be performed by two or more persons, not by one person alone. Otherwise, hands could get caught up or crushed. ● Place the printer unit on a fl at, level surface.
- Page 5 3. Turning the Power Switch ON 1. Make sure that the power switch is off. 220 VAC model WARNING 2. Plug the supplied power cord into the inlet on the DUPRINTER. ● Connect the DUPRINTER to an outlet providing a 50 Hz, 8 A power supply of at least 230 V.
- Page 6 4. Setting the Master Roll 1. Take out a new master roll from the bag. 5. Peel off and pull out the seal. (Make sure that the black line is on the 2. Insert the master holders deeply into both operator’s side.) ends of the master roll.
- Page 7 7. Push the master set lever (thermal head escape lever). The master will be automatically pulled in. If the master is not pulled in, gently press it as far as possible. Master set lever (Thermal head escape lever) REFERENCE ● If the master is wrinkled, turn the power OFF and pull out the master roll, and then set the master again.
- Page 8 5. Preparing the Drum 4. Grip the stay at the upper part of the drum 1. Press and hold the JOG switch until the with your other hand, and pull out the drum drum comes to a stop with a beep. unit toward you while slightly lifting near end of the drum.
- Page 9 6. Hold the drum unit level and place the drum 10. Lower the lever until it comes to a stop. guide roller onto the rail in the machine. Lever Drum guide roller Rail 11. Close the front cover. 7. Release the stay at the upper part of the drum and push the drum unit in about 10 cm while lifting up the front end slightly.
- Page 10 6. Setting the Ink Pack 1. Open the front cover. U groove of holder Front cover 5. Push the ink pack in to the set line on the ink pack. 2. Grasp the ink pack holder and pull it down. Set line Ink pack holder 6.
- Page 11 7. Replenishing Ink Replenishing Ink Adjusting Ink Amount 1. Accessing HELP mode: 1. How to adjust ink amount of the knob on the Turn the power switch on while simultaneously rear side: pressing the PRINT SPEED keys. 1.1 Lift the stopper of the drum and rotate the drum by hand so that the master clamp 2.
- Page 12 2. How to adjust ink amount of the knob on 5. When printed too dark or too light on the the operator’s side: Adjust it from the gap entire surface: Adjust the above steps 3 and between the outer frame and the drum. 4 at the same time.
