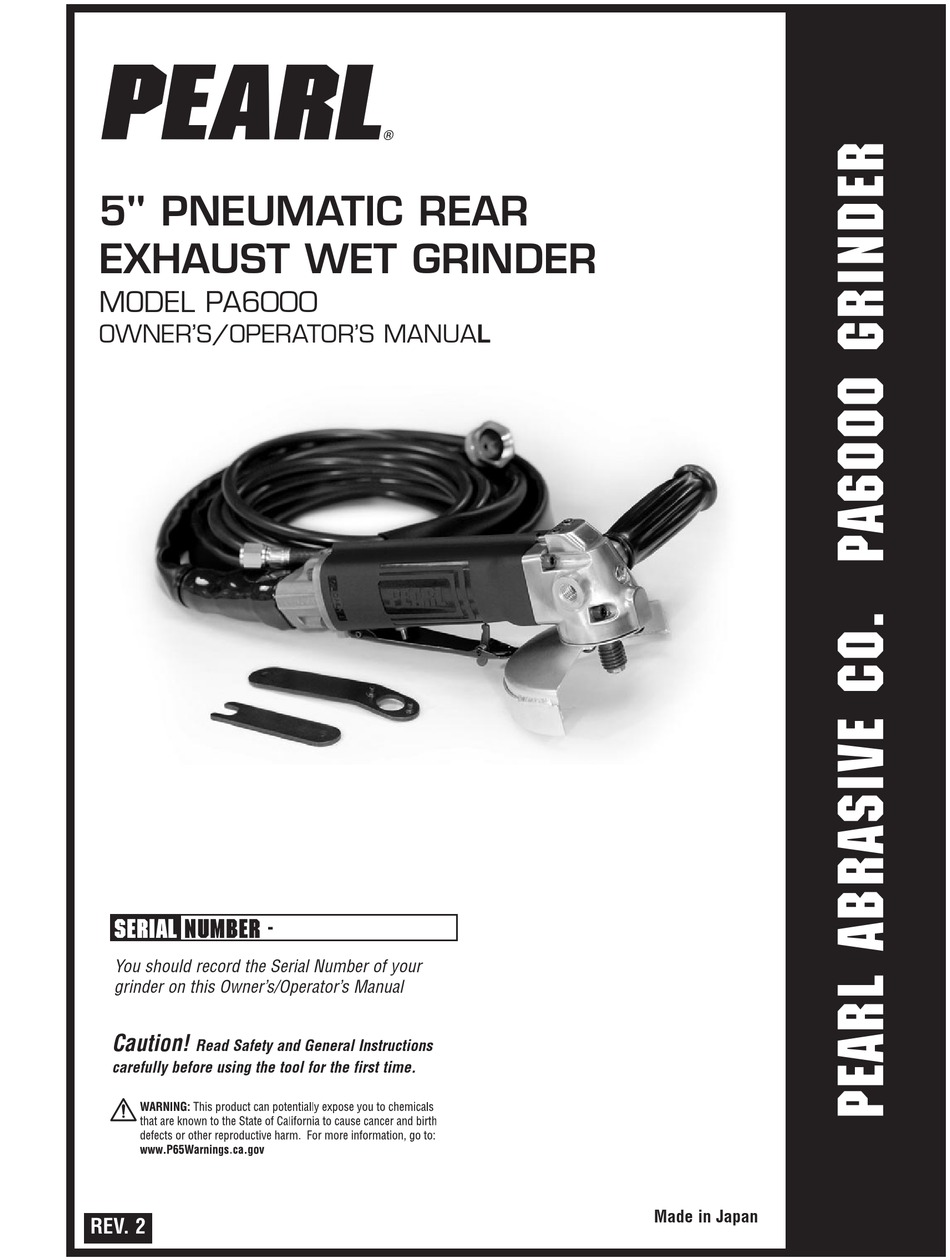

5" PNEUMATIC REAR
EXHAUST WET GRINDER
MODEL PA6000
OWNER'S/OPERATOR'S MANUAL
serial
number -
You should record the Serial Number of your
grinder on this Owner's/Operator's Manual
Caution!
Read Safety and General Instructions
carefully before using the tool for the first time.
REV. 2
Made in Japan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Pearl PA6000

Summary of Contents for Pearl PA6000

  • Page 1 5" PNEUMATIC REAR EXHAUST WET GRINDER MODEL PA6000 OWNER’S/OPERATOR’S MANUAL serial number - You should record the Serial Number of your grinder on this Owner’s/Operator’s Manual Caution! Read Safety and General Instructions carefully before using the tool for the first time.

  • Page 2: Table Of Contents

    i. TABLE OF CONTENTS PAGE GENERAL SAFETY RULES AND PRECAUTIONS ......3 iii. SILICA DUST WARNING .

  • Page 3: General Safety Rules And Precautions

    ii. GENERAL SAFETY RULES AND PRECAUTIONS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others. Keep these important operating instructions with this product.
  • Page 4 GENERAL SAFETY RULES AND PRECAUTIONS 22. Do not abuse cord. Never carry tool by cord or pull it to 40. Never place you hand or face near the rotating accessory disconnect from receptacle, Keep cord from heat, oil, and 42. Do not operate the tool continually at full throttle without a sharp edges.
  • Page 5 7. Never use solvents or other harsh chemicals to clean the and breakage or improper mounting. non-metallic parts of the tool. 81. Use the Pearl PA6000 for wet grinding only. 82. Only use a Backing pad rated for 5000 RPM or higher. – 5 –...
  • Page 6 GENERAL SAFETY RULES AND PRECAUTIONS 8. Before use each day place 2-3 drop of pneumatic tool oil 12. Do not submerge the tool in water. This will expose the in the air inlet of the tool. Run tool for 2-3 seconds to inner moving parts to moisture that will shorten the life allow moving parts to become lubricated.

  • Page 7: Silica Dust Warning

    • 15' water hose and 5' air hose • Handle and wrenches included • 90-day limited warranty v. SPECIFICATIONS Air Pressure 90 PSI PA6000 10,000 (no load) Grinder Shaft Thread 5/8"-11 Air Inlet 1/4" NPT Length 9 in. Air Consumption...

  • Page 8: Unpacking, Assembly & Operation Procedures

    UNPACKING, ASSEMBLY & OPERATION PROCEDURES UNPACKING Your PA6000 Wet Grinder has been shipped from the factory thoroughly inspected. Only minimal assembly is required. Check the content for the following items before discarding any packaging: PA6000 Air, Water & Exhaust Hoses...
  • Page 9 ASSEMBLY 1. Insert the Hose Nipple into 2. Thread the air hose to the 3. Tighten the air hose nut. the Water Hose. grinder air hose fitting. 4. Thread the water hose to 5. Tighten the water hose nut. 6. Slide the exhaust hose over the water hose fitting.
  • Page 10 OPERATION PROCEDURES 1. Place wrench on bottom of 2. Screw on cup wheel and tighten. spindle. 3. Turn the water on to desired 4. Use the lever to control air flow. water volume. Begin grinding. – 10 –...

  • Page 11: Specific Caution For Air Supply

    vii. SPECIFIC CAUTION FOR AIR SUPPLY 1. Use a clean lubricated air supply that will give 4. Use safety shuttle valves so air flow can be a measured pressure at the tool of 90 PSI/6 bar stopped in case of a line break. (0.6 MPa) 5.

  • Page 12: Maintenance & Troubleshooting

    viii. MAINTENANCE & TROUBLESHOOTING MAINTENANCE WARNING! Use 3-4 drops of spindle/machine oil in the air • Make sure to install the handle and the pad intake valve. The grinder must be oiled daily. so as not to loosen. • Use the cup wheels specific and adequate to this machine.
  • Page 13 TROUBLESHOOTING Note: IN CASE OF NO OPERATION AND Do not submerge the grinderer in water. Water WRONG OPERATION and moisture will harm and rust the inner parts 1. Check if the sufficient air is supplied with of the grinder. adequate pressure. Remove backer pads after each use and use a 2.

  • Page 14: Replacement Parts List

    969-5561. In Canada, call 1-800-387-0008. There is a $25.00 or improvements to products previously manufactured or sold. minimum order. Pearl reserves the right to discontinue products at any time without Return Policy: Return goods for credit or exchange on the basis of notice.

  • Page 15: Customer Service

    PART NAME QTY. PART NUMBER PART NAME QTY. PART NUMBER Inlet Bushing 670265 Roll Pin(2.5φ-6mm) 670304 Hose Nipple 670201 Roll Pin(2.5φ-4mm) 670219 Hose Adaptor 670202 Front Plate 670306 Cap Screw 670268 Ball Bearing 670307 Washer 670269 Pinion Gear 670308 Outer Pipe 670270 Gasket 670309...
  • Page 16 4900 ZAMBRANO ST., COMMERCE, CA 90040 FAX 562-927-5561 / 562-928-3857 PHONE 800-969-5561 www.pearlabrasive.com GEORGIA • USA ONTARIO • CANADA 3950 STEVE REYNOLDS BLVD., 375-2 PIDO ROAD NORCROSS GA 30093 PETERBOROUGH, ONTARIO K9J-6X7 ©2020 PEARL ABRASIVE CO., COMMERCE CA 90040 • 09/20...
