MOTORIZATION CONNECTION

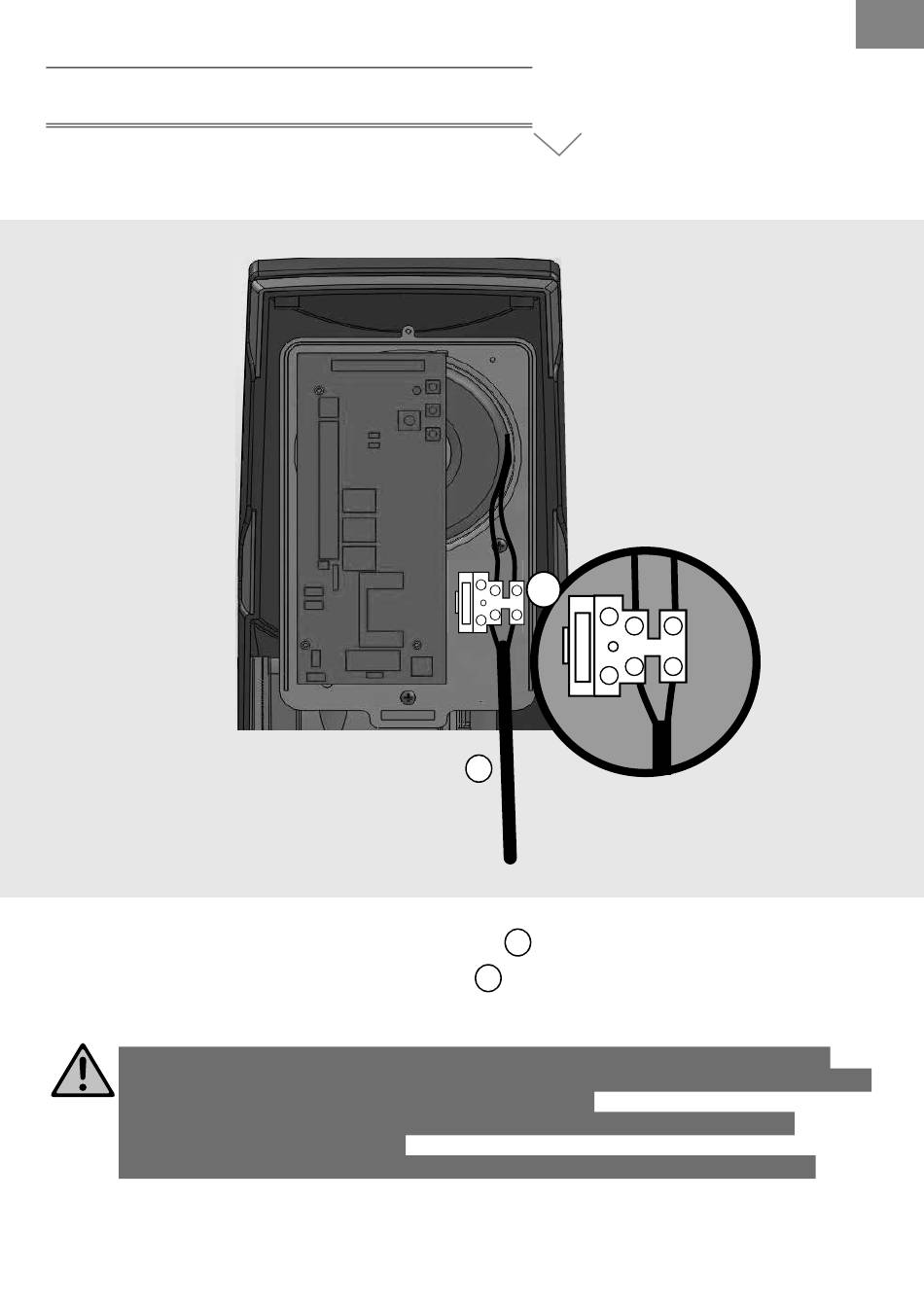

> PREPARINg THE 230 VOLT POWER SUPPLY
1 - Thread your power cable through under the motor
2 - Connect your power cable to the terminal strip
Cut off the power supply before making any connections. Implementation, electrical
connections and adjustments must be carried out in accordance with good practice by a
qualifi ed and specialized person. If in doubt, seek advice!
Read the safety instructions before making any connections. Follow the electrical
connection instructions on page 3.
Before start-up, make sure the protective covers are tightly secured and interlocked.
EN ::: 25
Transfo
230 V
1
CÂBLE
ALIMENTATION
230 VOLTS
1
2
.
2
blue
brown
230V
