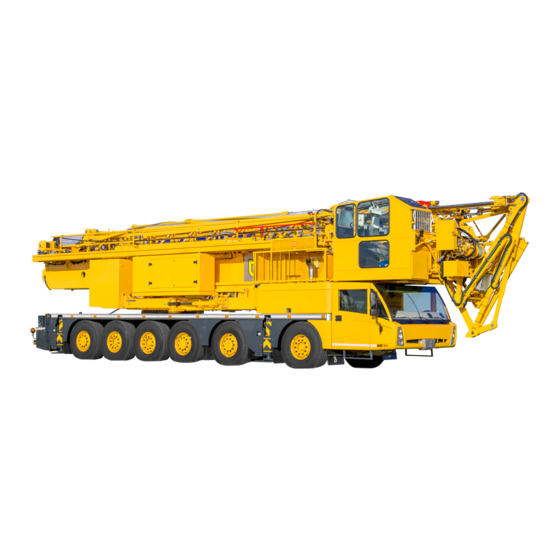

MANUAL SPIERINGS TRUCK AT6
Preface
Dear user,
This operating manual provides the user of the Spierings folding crane with information concerning the crane's
construction and operation. You will find detailed technical specifications and maintenance instructions in the
maintenance part of this manual.
© Copyright Spierings Cranes.
All rights reserved.
No part of this publication may be reproduced or published, in any form or in any way, by print, photo print, microfilm or any other means without prior permission from the
manufacturer.
I
AT6-EN-061031.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPIERINGS AT6

Summary of Contents for SPIERINGS AT6

  • Page 1 MANUAL SPIERINGS TRUCK AT6 Preface Dear user, This operating manual provides the user of the Spierings folding crane with information concerning the crane's construction and operation. You will find detailed technical specifications and maintenance instructions in the maintenance part of this manual.

  • Page 2: Liability Clause

    1.2 Any use of the Spierings truck that differs from its design purpose or as described in the use manual or the additions to it, will cause the product warranty and the manufacturer’s liability, for any direct or indirect damage, to expire.

  • Page 3: Explanation Of The Symbols Used

    MANUAL SPIERINGS TRUCK AT6 Explanation of the symbols used CAUTION! Wear safety goggles! Wear safety gloves! Wear safety boots! Wear head protection! Use safety belt! Check! Manual action! Automatic action! Wrong! Right! Information! AT6-EN-061031.doc...

  • Page 4: Table Of Contents

    MANUAL SPIERINGS TRUCK AT6 Index PREFACE ................................I LIABILITY CLAUSE..............................II EXPLANATION OF THE SYMBOLS USED ......................III INDEX ..................................IV GENERAL DATA AT6 ..........................1-1 OPERATION ............................. 2-1 2.1. Getting to know the truck......................2-1 2.2. Truck cab ............................ 2-4 2.2.1.
  • Page 5 Change oil cooling system..................... 3-2 3.1.8. Fire hazard ........................3-2 3.1.9. Cleaning components....................3-2 3.2. Maintenance plan for the AT6 truck .................... 3-3 DIESEL ENGINE............................4-1 4.1. Maintenances at commencement of operations................4-1 4.2. Access to the diesel engine......................4-2 4.3.
  • Page 6 MANUAL SPIERINGS TRUCK AT6 4.8.2. Fuel filter/water separator replacement ............... 4-13 4.9. V-belts ............................4-14 4.9.1. V-belts inspection ......................4-14 4.9.2. V-belt adjustment......................4-15 4.10. Exhaust system......................... 4-15 4.11. Valve clearance check and adjustment ..................4-15 4.12. DEB-clearance check and adjustment ..................4-16 DRIVE SYSTEM............................
  • Page 7 MANUAL SPIERINGS TRUCK AT6 PNEUMATIC SYSTEM ..........................9-1 9.1. Primary system: brake system ....................9-1 9.2. Secondary system: accessories and transmission..............9-1 9.3. Air dryer............................9-2 9.3.1. Air dryer filter replacement..................... 9-2 9.4. Air vessels........................... 9-3 9.5. Oil atomizer/water separator ....................... 9-3 9.5.1.

  • Page 8: General Data At6

    1. General data AT6 The AT6-truck is especially designed for the Spierings SK1265 folding crane. Extra attention was paid to a smooth and comfortable transport to the work site. The crane is suitable for driving on public roads fully fitted with counterweight and tools.
  • Page 9 MANUAL SPIERINGS TRUCK AT6 • Axle 5 and 6 can be disengaged. The axles may be steered in the same direction as the 3 front axles either by means of a steering knob or fully automatic. This way you can drive in crab steering mode.

  • Page 10: Operation

    MANUAL SPIERINGS TRUCK AT6 2. Operation 2.1. Getting to know the truck Picture 2-1 Bumper If desired a bumper can be mounted, which enables you to take along an extra sling box or spare wheel. When the bumper is folded up, the tow hook can be used.
  • Page 11 MANUAL SPIERINGS TRUCK AT6 Left engine cowling At this side under the engine cowling you will find the following parts: Electrical cabinet Button box Grease reservoir central lubrication system Ladder Oil top up pipe Picture 2-3 Ladder Via the ladder at the back of the truck you can mount the truck frame. The ladder inside the left engine cowling can also be used for this purpose.
  • Page 12 MANUAL SPIERINGS TRUCK AT6 Right engine cowling Underneath the engine cowling at the right-hand side of the truck you will find the following parts: Air filter Combined cooler unit (Intercooler/radiator/oil cooler) with hydraulically driven fans. Noise isolating wall Picture 2-5 Fuel tank The fuel tank is integrated in the frame at the rear end of the truck.

  • Page 13: Truck Cab

    MANUAL SPIERINGS TRUCK AT6 2.2. Truck cab 2.2.1. Getting in Use the step under the door. Make use of the steering wheel to hold on to. 2.2.2. Doors Turn the handle up to open the door from the inside. The door can only be locked up from the outside. There is an ashtray on the inside of the door.

  • Page 14: Fuse Box

    MANUAL SPIERINGS TRUCK AT6 2.2.8. Fuse box The fuse box is situated in the dashboard at co-driver's side. (Picture 2-8) Picture 2-8 2.2.9. Reservoir windscreen washer fluid It is found at the left of the co-driver's side. Picture 2-9 2.2.10. Middle console All components underneath the middle console at the co-drivers side can be reached by two covers.

  • Page 15: Battery Charger Remote Control Batteries

    MANUAL SPIERINGS TRUCK AT6 2.2.11. Battery charger remote control batteries You will find the battery charger for the remote controls on the left under the dashboard at the drivers’ side. Picture 2-11 Every remote control comes with 2 batteries each.

  • Page 16: Control Panel

    MANUAL SPIERINGS TRUCK AT6 2.3. Control Panel Longitudinal differential lock Mileage counter Indicator lamps A) Pre-heating Transverse differential lock Fuel gauge B) Charging current Transfer case high/low Coolant temperature gauge batteries Switch alarm light Air-pressure gauge circuit 1 C) Air cleaner...
  • Page 17 MANUAL SPIERINGS TRUCK AT6 Switch longitudinal differential lock Switch on the longitudinal lock when, while driving off the road, you have no or little grip. The longitudinal locks will be locked. Switch transverse differential lock Switch on the transverse lock when, while driving with longitudinal lock, you still have insufficient grip.
  • Page 18 MANUAL SPIERINGS TRUCK AT6 13. Switch all axles up/down With this switch the cylinders of every axle are simultaneously extended or retracted (e.g. when operating the outrigger system). 14. Switch axles 1 and 2 up/down With this switch the cylinders of axles 1 and 2 can be extended or retracted simultaneously.
  • Page 19 MANUAL SPIERINGS TRUCK AT6 20. Switch outrigger front left-hand side retract/extend 21. Switch outrigger beam rear left-hand side retract/extend 22. Switch outrigger rear left-hand side retract/extend 23. Switch outrigger front right-hand side retract/extend 24. Switch outrigger beam front right-hand side retract/extend 25.
  • Page 20 MANUAL SPIERINGS TRUCK AT6 26. Switch outrigger beam rear right-hand side retract/extend 27. Switch outrigger controls on/off Switch off the outrigger control when the outriggers are not being operated. Also switch it off while rigging up, rigging down or operating the crane. The remote control is also de-activated. Failing to switch off the controls means the crane can not be operated over the full operating range (full support base).
  • Page 21 MANUAL SPIERINGS TRUCK AT6 37. Fuel gauge The fuel gauge only shows the amount of fuel in the tank when the ignition is switched on. 38. Coolant temperature gauge The diesel engine safety system is fitted with an overheating sensor for the coolant temperature. As soon as the temperature exceeds 110 °C, it activates the horn.
  • Page 22 MANUAL SPIERINGS TRUCK AT6 48. B) Power steering circuit While the vehicle is standing still this lamp is always on as the oil pressure in the power steering circuit is too low. If this lamp is also on while driving, it means that there is no pressure building in the power steering circuit and the defect must be remedied as soon as possible.
  • Page 23 MANUAL SPIERINGS TRUCK AT6 51. C) All-terrain gear All-terrain gear in the transfer case is activated with switch 3. 51. D) Road travel gear Road travel gear in the transfer case is activated with switch 3. 52. A) Axle blocking Axle blocking activated with switch 18.
  • Page 24 MANUAL SPIERINGS TRUCK AT6 54. B) Charging current batteries If the charging current of the batteries is too low, this indicator lamp will go on. 54. C) Air cleaner If the air cleaner passes insufficient clean air, the filter is blocked or contaminated. Remedy the problem immediately.
  • Page 25 MANUAL SPIERINGS TRUCK AT6 Picture 2-13 With this switch the driving direction is indicated. Pushing the switch forward switches on the full beam headlight. Pulling the switch backwards you can give light signals. Pressing the switch towards the steering wheel activates the horn.

  • Page 26: Air-Conditioning Operation (Option)

    MANUAL SPIERINGS TRUCK AT6 2.4. Air-conditioning operation (Option) When chosen for this option, the air-conditioning is mounted on the ceiling of the truck cabin. (See Picture 2-14) Picture 2-14 Two rotating switches are located on the interior part of the air-conditioning.

  • Page 27: Driving The Spierings Crane

    MANUAL SPIERINGS TRUCK AT6 2.5. Driving the Spierings crane (For all number references please refer to Picture 2-11). The truck driver must observe the locally applicable rules for driving a crane on the public roads at all times. Do not exceed the axle loads as mentioned on the STGO-plate.

  • Page 28: Driving Off

    MANUAL SPIERINGS TRUCK AT6 Display 31 The transmission carries out a self-check Display 31 Possible when not enough air is available When the ignition is switched on the electronic unit validates the needed pre-heating time. When pre-heating is needed lamp 54A lights up. During the pre-heating period the engine can not be started.

  • Page 29: Switching Off The Engine

    2.6. Shifting gear The AT6 is fitted with an automatic transmission, so there is no clutch pedal in the truck cab. The controls needed to drive the crane are control lever (80) and rotary switch (81) on the centre control panel and gas pedal (69). For information regarding the selected gear etc.

  • Page 30: Manual Gear Shift

    MANUAL SPIERINGS TRUCK AT6 2.7. Manual gear shift For the sake of easy operation it is best not to use the manual gear shift too often. To shift gears manually the gear shift lever must be moved to the left. The two arrows and four bars on the display disappear.

  • Page 31: Brakes

    2-digit number. In this case error no. 74. 3-digit number. The 4 bars stand for a hundred. In this case error no. 174. For the meaning of the error codes please contact Spierings Cranes or ZF Friedrichshafen AG. 2.8. Brakes...

  • Page 32: Retarder/Esc/Cc

    MANUAL SPIERINGS TRUCK AT6 2.9. Retarder/ESC/CC To prevent excessive wear to brakes and clutch the retarder may be used. The retarder can be controlled with the control lever at the right of steering column (66) (Picture 2-18). Picture 2-18 By moving the lever backward (direction A) the retarder can be set in three positions: Approx.

  • Page 33: Variable Vehicle Speed Limit

    MANUAL SPIERINGS TRUCK AT6 When CC is activated, you can increase/lower the speed by tipping the lever upwards/downwards. (While tipping the speed changes with 0.5 km/h per tip.) To switch off the Cruise Control, turn the tip of the lever (1) shortly in position “OFF”.

  • Page 34: Driving Off The Road

    MANUAL SPIERINGS TRUCK AT6 In the table below you will find the condition for switching “ESC” on or off. Result Prevents Switches ESC off Switches ESC on switching on ESC v = outside limit values Park brake disengaged Clutch Operating brake Vacuum brake Postition “OFF”...

  • Page 35: Transverse Differential Lock

    MANUAL SPIERINGS TRUCK AT6 When the longitudinal lock is switched on, it is shown by indicator lamps (51A and 51B) on the dashboard. CAUTION! The longitudinal differential lock may only be engaged or released when the vehicle stands still! Driving with engaged longitudinal differential lock is only allowed when the vehicle moves...
  • Page 36 MANUAL SPIERINGS TRUCK AT6 2.12. Axle height adjustment The truck axles are connected to the chassis by means of hydraulic cylinders. Each cylinder is provided with an accumulator, so that the axles can compress. The axle height adjustment can be controlled from the truck cab. First engage the axle height adjustment by operating switch 18.
  • Page 37 MANUAL SPIERINGS TRUCK AT6 2.13. Independent rear axle steering In the independent rear axle steering mode the rear wheels steer in the same direction as the front wheels. The truck can travel diagonally forward or in reverse. This could be desirable at some sites to get e.g. a favourable set up position.
  • Page 38 MANUAL SPIERINGS TRUCK AT6 The rear axle steering electronics will put the wheels of axles 5 and 6 in the correct direction. The wheels of axles 1, 2 and 3 do not have to be in a certain position. Make sure the rear axle steering electronics have put the wheels of axles 5 and 6 in the correct direction.
  • Page 39 MANUAL SPIERINGS TRUCK AT6 2.16. Towing the crane Please always consult Spierings Kranen before towing the crane. 2.16.1. Towing when the diesel engine can still run When the crane must be towed and the diesel engine can still run, you have to proceed as follows: •...
  • Page 40 MANUAL SPIERINGS TRUCK AT6 Transfer case in neutral The transfer case can also be shifted into neutral using the external filler nipple. (Picture 2-21) Power steering The steering pumps that are driven by the diesel engine do not supply any oil, so the power steering will be lost for a great part.
  • Page 41 MANUAL SPIERINGS TRUCK AT6 3. Maintenance "Under normal operating conditions” means: • forty-hour week of 5 days • 15,000 – 20,000 km/year • Ambient temperature: -15 to 40°C All oil- and filter specifications are found in Chapter 11, Technical Data.
  • Page 42 MANUAL SPIERINGS TRUCK AT6 3.1.5. Oils and coolant Different kinds of oil and lubrication, coolant, windscreen washer fluid, battery acid and diesel oil can present a health hazard when touched. Avoid any physical contact with these substances! 3.1.6. Environment In order to be able to meet the present environmental requirements, you are advised to observe the following rules: •...
  • Page 45 The first inspection of the truck diesel engine must be carried out by a regional DAF-dealer. At the inspection the DAF-dealer is to fill out the warranty form supplied by Spierings. For this inspection the DAF-dealer will only bill you for the costs of oil and filters.
  • Page 46 This inspection should preferable be carried out by service staff of Spierings Kranen. The truck diesel engine gets a full maintenance, and the oil in the complete truck drive line is changed. For this purpose Spierings Kranen uses synthetic oil (75W90). This oil does not need changing in all drive line components for two years. The hydraulic filter is replaced.
  • Page 47 Unscrew the red cap on the filling pipe (1). Always top up engine oil of the same brand and type. (In doubt please always consult Spierings Cranes.) Check the oil level with the dipstick. (4.3.1 Check the engine oil level) Picture 4-4 AT6-EN-061031.doc...
  • Page 48 MANUAL SPIERINGS TRUCK AT6 4.3.3. Change engine oil Change engine oil after every 15,000km or at least once a year and during the annual maintenance. Make sure the truck stands on level ground. Preferably run the engine till it is at operating temperature and then switch it off.
  • Page 49 MANUAL SPIERINGS TRUCK AT6 4.4. Oil filter engine 4.4.1. Oil filter replacement Replace the oil filter during the annual maintenance or every 15.000 operating hours under normal operating conditions. Place a sufficiently big trough under the oil filter (1) at the left next to the sump (2). (Picture 4-6)
  • Page 50 MANUAL SPIERINGS TRUCK AT6 4.4.2. Centrifugal filter replacement Replace the centrifugal filter during the annual maintenance or every 15.000 operating hours under normal operating conditions Clean de cap (3) and its surroundings. (Picture 4-8) Remove the central bolt (4) and remove the cap.
  • Page 51 MANUAL SPIERINGS TRUCK AT6 4.5. Cooling Check hoses, lines and couplings every two months for leaks and check radiator, intercooler and fan for damage. The DAF diesel engine is water-cooled. The radiator together with the intercooler and oil cooler are situated at the right-hand side under the engine cowling in horizontal position (see Picture 4-9).
  • Page 52 MANUAL SPIERINGS TRUCK AT6 4.5.2. Top up Coolant Prevent pouring cold coolant in a warm engine. If it is inevitable under special circumstances, it should be done very slowly while the engine is running. Coolant is a harmful substance. Protect the eyes and skin when you are handling it.
  • Page 53 MANUAL SPIERINGS TRUCK AT6 4.5.4. Antifreeze Check the antifreeze concentration every year, before commencement of the winter season. We recommend that you check the coolant for the antifreeze concentration every time before the winter season starts. Apply preferably 40% antifreeze on ethylene glycol basis.
  • Page 54 MANUAL SPIERINGS TRUCK AT6 4.6. Air inlet system Check hoses, pipes and couplings for leaks every two months. 4.6.1. Clean air cleaner Clean the air cleaner every week under normal operating conditions. In case of damage to the air cleaner cartridge and seal ring, the cartridge must be replaced.
  • Page 55 MANUAL SPIERINGS TRUCK AT6 4.6.2. Air cleaner cartridge replacement Replace the air cleaner cartridge every year under normal operating conditions. Make sure the engine is not running. Open the right side plate of the engine cowling. Release the clips (1) at the side of the air cleaner lid (2) and remove the lid (Picture 4-12).
  • Page 56 MANUAL SPIERINGS TRUCK AT6 Make sure the engine is not running. Unscrew the cap (1) from the filter housing (2) and take the cap together with the filter element (3) from the filter housing (see Picture 4-15). Remove the filter element from the cap.
  • Page 57 MANUAL SPIERINGS TRUCK AT6 4.8.1. Drain the water separator Drain the water separator every week. Put the tower in upright position. Loosen the drain plug (3) at the bottom of the water separator some turns and let the water run off (Picture 4-17).
  • Page 58 MANUAL SPIERINGS TRUCK AT6 4.9. V-belts 4.9.1. V-belts inspection Check the V-belts during the annual maintenance or every 15.000 operating hours under normal operating conditions. Check the V-belt tension with special tools (DAF No. 1240443). Set the gauge on zero by pressing the gauge arm (1).
  • Page 59 MANUAL SPIERINGS TRUCK AT6 4.9.2. V-belt adjustment Loosen the lock nut (4) on the spindle (see Picture 4-20). Loosen fixing bolt (5) on the spindle mounted on the water pump. Loosen the lower fixing bolt (3) from the generator. Loosen the lock nut (2) on the threaded bush (1).
  • Page 60 MANUAL SPIERINGS TRUCK AT6 Check and adjust the valve clearance of the 6th cylinder. Adjust the correct valve clearance by unscrewing the locknut and turn the adjustment bolt in the correct direction. (Picture 4-22) Valve Clearance Inlet 0.45 mm Outlet 0.45 mm...
  • Page 61 MANUAL SPIERINGS TRUCK AT6 5. Drive system Picture 5-1 shows how the AT6 drive system is constructed. Picture 5-1 Diesel engine Automatic transmission with built-in retarder Transfer case Hydraulic front axle drive 5.1. Transmission The ZF 16 AS 2601 is a fully automatic transmission with built-in retarder.
  • Page 62 MANUAL SPIERINGS TRUCK AT6 5.1.1. General transmission maintenance Check the transmission every two months for external leaks and make sure the breather is free from dirt, so that the function is guaranteed. While cleaning with high-pressure cleaner make sure no water can enter through the breather.
  • Page 63 MANUAL SPIERINGS TRUCK AT6 Make sure the truck stands on level ground. Put a trough under the drain plugs. Unscrew the magnet drain plugs (2 and 3) (Picture 5-4). Clean the magnet plugs and renew the seal rings. Remount the plugs.
  • Page 64 MANUAL SPIERINGS TRUCK AT6 5.2. Transfer case The transfer case is a STEYR type VG2001/396. This transfer case distributes the torque at inlet shaft (1) over 2 outgoing shafts (Picture 5-6). Outgoing shaft (2) is for driving driven axle 2 and driven axle 3.
  • Page 65 MANUAL SPIERINGS TRUCK AT6 5.2.2. Check oil level transfer case Check the transfer case oil level every two months under normal operating conditions. To prevent measuring errors the oil level must not be checked immediately after operation. The oil temperature must be below 40°C.
  • Page 66 MANUAL SPIERINGS TRUCK AT6 5.3. Axles Picture 5-8 All driven axles are Kessler & Co axles. Axle number Steered Driven Differential Ratio Reduction Axle 1 Hydraulic Single 6.38 Axle 2 Mechanical Single 6.35 Axle 3 Mechanical Feed-through 6.35 Axle 4...
  • Page 67 MANUAL SPIERINGS TRUCK AT6 5.3.2. Check oil level differentials Check the differentials' oil level every two months under normal operating conditions. To prevent measuring errors the oil level must not be checked immediately after operation. The oil temperature must be below 40°C.
  • Page 68 MANUAL SPIERINGS TRUCK AT6 5.3.3. Oil change in differentials Under normal operating conditions change the oil every year during the annual maintenance. Caution! The differentials and oil are hot after a long drive. Make sure the truck stands on level ground.
  • Page 69 MANUAL SPIERINGS TRUCK AT6 5.3.5. Change oil axle hubs Under normal operating conditions change the oil every year during the annual maintenance. Caution! The axle hubs and oil are hot after a long drive. Make sure the truck stands on level ground.
  • Page 70 MANUAL SPIERINGS TRUCK AT6 5.5. Check the brake linings Check the brake linings during the annual maintenance under normal operating conditions. At the rear of every brake drum you can check if the brake lining has the required strength for safe operation. The brake lining must be replaced if it is worn to the wear ring, which you will find on the lining side.
  • Page 71 D) Hydraulic auxiliary cylinders E) Emergency cylinder The AT6 steering system steers axles 1, 2, 3, 5 and 6, whereas axles 5 and 6 are steered in opposite direction, to create a smaller turning circle. Picture 6-1 shows how the steering is constructed. The steering can be divided in two parts; the three front axles and the two rear axles.
  • Page 72 To prevent excessive tyre wear the truck must be aligned every year. Before the crane is aligned, the play in steering arms and steering rods must be checked. As the crane is fitted with an electronic rear axle steering, we recommend that you contact Spierings Kranen before you start the alignment.
  • Page 73 MANUAL SPIERINGS TRUCK AT6 7. Electrical system The on-board power on the truck is 24V, provided by two 12V/165Ah batteries series connected. During operation these batteries are charged by a 24V dynamo with a maximum charging current of 35A. With the battery switch in the truck cab the truck's electrical system can be cut off. Use this switch in case of welding on the crane or when the crane is parked for a longer period of time.
  • Page 74 MANUAL SPIERINGS TRUCK AT6 7.3. Batteries 7.3.1. Check batteries Check the truck batteries every two months. CAUTION! Battery acid is harmful to your health and the environment. Handle it with care! Check the batteries on the following points: • Is the fluid level still acceptable (if necessary, top up with distilled water)? •...
  • Page 75 MANUAL SPIERINGS TRUCK AT6 7.3.3. Batteries replacement If the engine has trouble starting (with charged batteries) it is advisable to replace the batteries. Replace the batteries always by batteries of the same type and measurements. Make sure the engine is not running. (Remove the key from the ignition).
  • Page 76 MANUAL SPIERINGS TRUCK AT6 8. Hydraulic system 8.1. Check the oil level in the hydraulic oil tank Check the hydraulic oil level every two months under normal operating conditions. To prevent measuring errors the oil level must not be checked immediately after operation.
  • Page 77 MANUAL SPIERINGS TRUCK AT6 8.2. Changing hydraulic oil Change the hydraulic oil every 5 years after oil analysis. Before changing the oil first an oil sample is analysed. If it is necessary to change the oil, all hydraulic cylinders must be retracted, including the suspension cylinders.
  • Page 78 MANUAL SPIERINGS TRUCK AT6 8.3. Replace hydraulic oil filter Replace the hydraulic oil filters during the annual maintenance under normal operating conditions. 8.3.1. Hydraulic fine filter Picture 8-3 The hydraulic fine filter (1) is located under the left-hand engine cowling (Picture 8-3) To reach it, the upper plate must be removed after the tower has been put in upright position.
  • Page 79 Under normal operating conditions check de suspension accumulators every year. The AT6 suspension has 12 accumulators. They are all mounted on the hydraulic suspension cylinders on each axle. To check the accumulators you need special tools from HYDAC. The pressure must be 110 bar.
  • Page 80 MANUAL SPIERINGS TRUCK AT6 8.5. Hoses and couplings hydraulic system Check all components of the hydraulic system for leaks and damage every two months. All hoses, couplings, hydraulic blocks, filters, cylinders and the oil tank have to be checked regularly for damage and leaks.
  • Page 81 MANUAL SPIERINGS TRUCK AT6 9. Pneumatic system The pneumatic system exists of a primary system and a secondary system. The primary system for the truck brakes exists of 3 cicuits. The secondary system for the accessories exists of 2 circuits.
  • Page 82 MANUAL SPIERINGS TRUCK AT6 The components supplied by the secondary air circuit are: • Transmission: - Feeding various transmission functions • Vacuum brake: - Close off the exhaust valve - Cut off the fuel pump • Transfer case: - Shifting road travel/all-terrain gear - Operating longitudinal differential lock •...
  • Page 83 MANUAL SPIERINGS TRUCK AT6 9.4. Air vessels Check the air vessels for the presence of condensation every week. Check the air vessels for condensation by pulling or pressing the drain valve ring under the air vessels. In case of regular condensation drained from the vessel the air dryer element must be replaced (see 9.3.1 Air dryer filter replacement).
  • Page 84 MANUAL SPIERINGS TRUCK AT6 9.5.1. Replenish oil atomizer Make sure the diesel engine is not running. Loosen bottom piece (5) from the holder and fill it with oil. Reinstall the bottom piece with oil in the holder. If necessary adjust the amount of atomised oil by means of set screw (4).
  • Page 85 MANUAL SPIERINGS TRUCK AT6 9.6. Check brake pressure Check the brake pressure of all axles during the annual maintenance. On the brake boosters of all axles gauge connections are mounted, to which an approved pressure gauge must be connected. Let the diesel engine run and operate the operating brake with the pedal in the truck cab.
  • Page 86 MANUAL SPIERINGS TRUCK AT6 Lubrication 10.1. Central lubricating system The central lubricating system has to be checked every 2 months to make sure all points are provided with grease and the grease reservoir is sufficiently filled with grease. Connections, hinges and bearings are points that should be greased regularly. Some points even so regularly, that a central lubricating system brings help.
  • Page 87 MANUAL SPIERINGS TRUCK AT6 10.1.3. Grease Points Central Lubricating System Pins upper and lower suspension cylinders connection. Upper and lower steering knucles (except on axle 4) Picture 10-3 Picture 10-4 Suspension bearing steering rod Steering arms hinge points 10-2 AT6-EN-061031.doc...
  • Page 88 MANUAL SPIERINGS TRUCK AT6 10.2. Manual lubrication The lubrication interval for points that need manual lubrication is 2 months. For manual lubrication you need a grease gun or a brush. For all points we recommend EP2 grease. 10.2.1. Extension cylinders outrigger beams Picture 10-5 shows where the grease nipple of the extension cylinder is situated in the outrigger beam (A).
  • Page 89 MANUAL SPIERINGS TRUCK AT6 10.2.3. Steering system The various steering rod ball couplings are maintenance-free, except the spline bushes. These must be lubricated manually. Next to lubricating the spline bushes also make sure all couplings and connections on the steering system do not show any play.
  • Page 90 The air-conditioning contains coolant under high pressure. Do not remove any parts from the air-conditioner. All duty to the air-conditioning system can only be executed by qualified personnel. Repair the air-conditioning as soon as possible when it does not function anymore to prevent further damage. Contact Spierings Kranen when in doubt. 11-1 AT6-EN-061031.doc...
  • Page 91 MANUAL SPIERINGS TRUCK AT6 Technical data Diesel engine Spierings nr. Engine oil SAE 15W40 ACEA E4-98 Oil filter DAF nr. 1397765 SERV01150065 Centrifugal filter DAF nr. 1376481 SERV01150066 V-belt water pump-, fan- and dynamo DAF Nr. 1393365 drive 2x V-belt tension device single belt Krikit I (DAF Nr.
  • Page 92 MANUAL SPIERINGS TRUCK AT6 Enclosures Enclosure 1 General Enclosure 2 Table of content Enclosure 3 General overviews Enclosure 4 Electrical plans Enclosure 5 Hydraulic and pneumatic plan Enclosure 6 Overviews 13-1 AT6-EN-061031.doc...
