Distortion

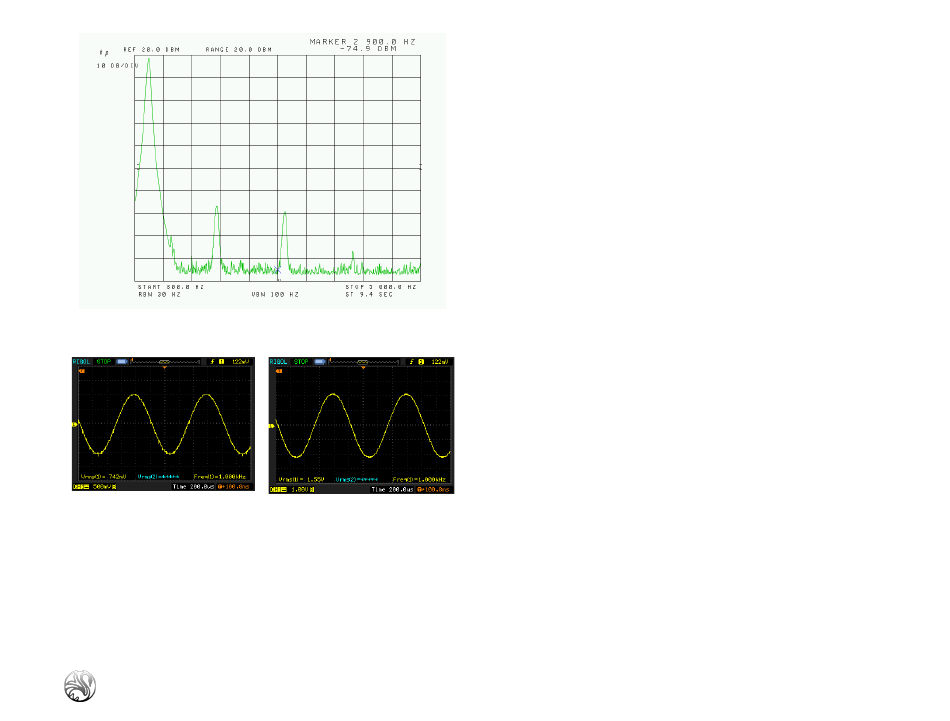

0.032% distortion at 150milliwatts into 47 ohms. Harmonics
generated by the diamond buffer
Sabre Pro non upsampling DAC vs AD / Burr Brown upsampler
Swan Song Audio 2021
Specifications
•
Power 1.7 watts into 8 ohms
•
Batteries (LIPO)
o 1 - 4 volt digital supply
o 2 - 8 volt 2.2 amp analog supplies
o Run time 7.5 hours
o Charge time 6-7 hours
•
Inputs
o 1 - 24 Bit 96kHz optical
o 1 - 16 bit 48kHz USB
•
Chipset
o Cirrus receiver
o Analog devices 24bit 96kHz upsampler
o Burr Brown DAC
o BJT 3 amp Class A diamond buffer output stage
•
Dimensions 4 inches wide by 5.75 deep by 1.5 inches tall
•
Weight 1 pound
Advertisement
Related Manuals for Swan Song Audio Mini Black
Summary of Contents for Swan Song Audio Mini Black
- Page 1 Distortion Specifications • Power 1.7 watts into 8 ohms • Batteries (LIPO) o 1 - 4 volt digital supply o 2 - 8 volt 2.2 amp analog supplies o Run time 7.5 hours o Charge time 6-7 hours • Inputs o 1 - 24 Bit 96kHz optical o 1 - 16 bit 48kHz USB • Chipset o Cirrus receiver o Analog devices 24bit 96kHz upsampler o Burr Brown DAC o BJT 3 amp Class A diamond buffer output stage • Dimensions 4 inches wide by 5.75 deep by 1.5 inches tall • Weight 1 pound 0.032% distortion at 150milliwatts into 47 ohms. Harmonics generated by the diamond buffer Sabre Pro non upsampling DAC vs AD / Burr Brown upsampler Swan Song Audio 2021...
- Page 2 Back Panel Front Panel • DC connector on the far left is for a 5 volt, 4 amp, center • Volume control on the far left. Turn to the right to increase positive DC power supply to charge the batteries the volume • Place the volume switch in the LOW position to reduce the • 3.5mm Phone connector for headphones volume range • Toslink connector • Place the ON/Charge switch in the ON position to listen and • Mini USB connector. The USB input is automatically selected CHARGE to charge the batteries when a USB device is connected • 95% Charge can be reached in 6 hours Operating Instructions Cautions Warranty • Charge the batteries by plugging the DC power supply into • Do not expose the DAC / amplifier to liquids or to the back of the unit and connecting it to an AC outlet temperature extremes as deemed by Swan Song Audio • Place the CHARGE switch on the rear panel in the up • Electromagnetic interference will affect the performance position to charge. Blue LEDS will go out when charged • Only headphone loads from 8 to 600 ohms are supported • Connect the fiber optic (TOSLINK) or USB Mini cable to the •...
- Page 3 Swan Song Audio 2021...
