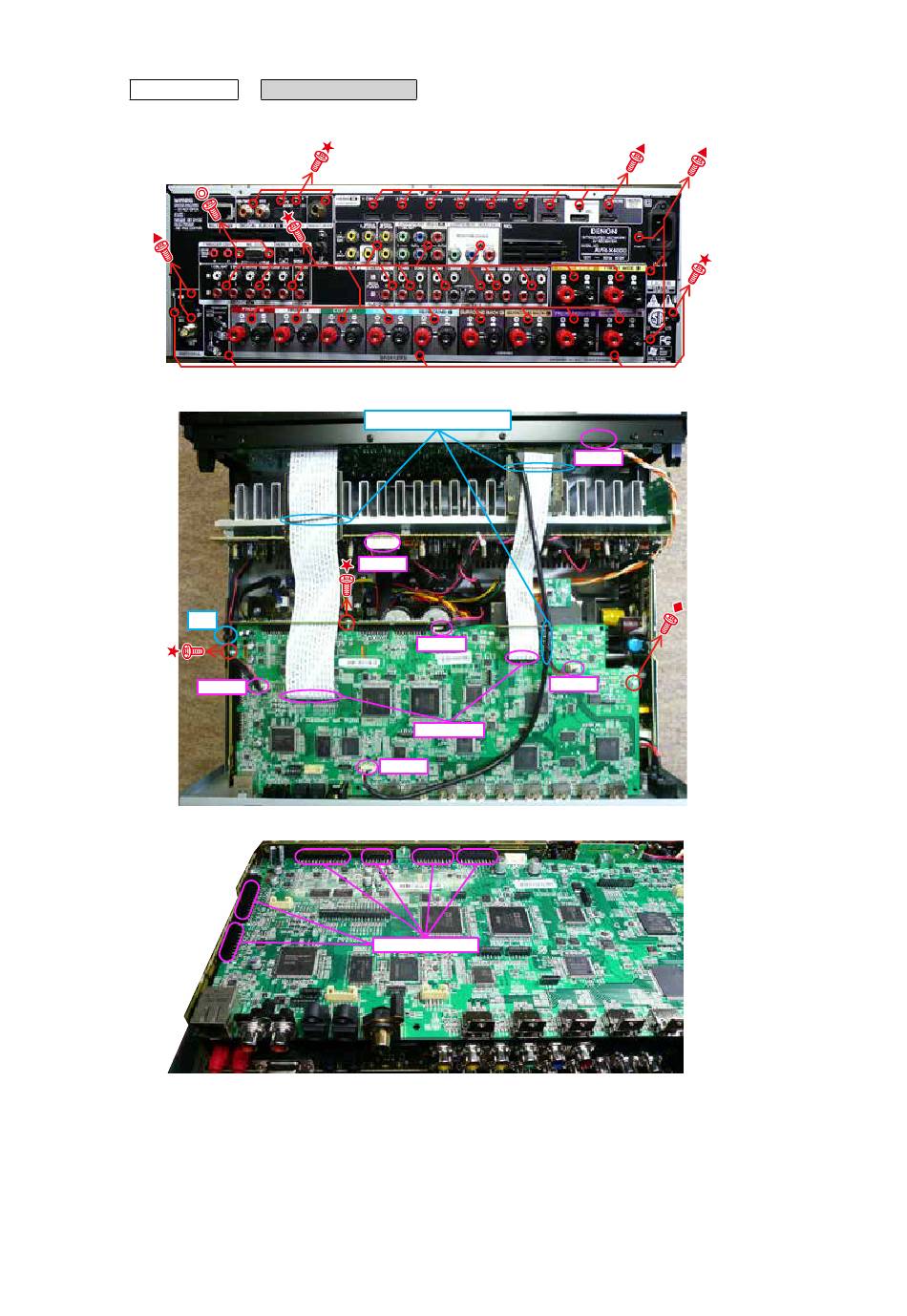

3. DIGITAL UNIT ASSY
Proceeding : CABINET TOP → DIGITAL UNIT ASSY
(1) Remove the screws, then remove the BACK PANEL and the DIGITAL BRACKET.
Shooting of photograph: A
(2) Cut the wire clamp band, then remove the screws. Disconnect the connector wires and FFC cables.
STYLE PIN : Loosen
CN602
CN461
cut
CN903
CN203
CN704
FFC cable
CN321
(3) Disconnect the connector board.
Board to board
16
