fablabelpaso.org Ÿ 915.209.2656 Ÿ info@fablabelpaso.org

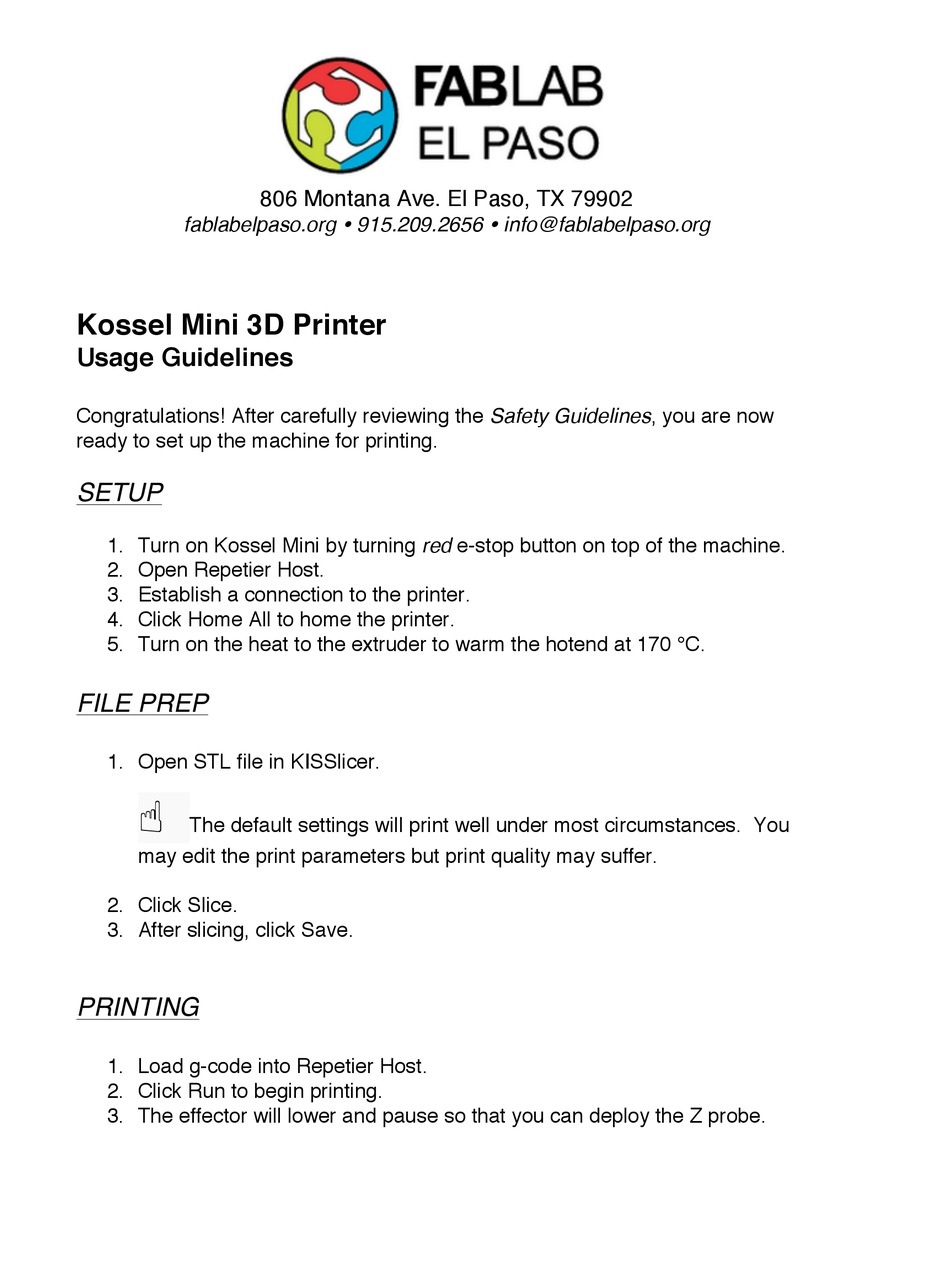

Kossel Mini 3D Printer
Usage Guidelines
Congratulations! After carefully reviewing the Safety Guidelines, you are now
ready to set up the machine for printing.
SETUP
1. Turn on Kossel Mini by turning red e-stop button on top of the machine.
2. Open Repetier Host.
3. Establish a connection to the printer.
4. Click Home All to home the printer.
5. Turn on the heat to the extruder to warm the hotend at 170 °C.
FILE PREP
1. Open STL file in KISSlicer.
☝
The default settings will print well under most circumstances. You
may edit the print parameters but print quality may suffer.
2. Click Slice.
3. After slicing, click Save.
PRINTING
1. Load g-code into Repetier Host.
2. Click Run to begin printing.
3. The effector will lower and pause so that you can deploy the Z probe.
806 Montana Ave. El Paso, TX 79902
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FabLab Kossel Mini
Summary of Contents for FabLab Kossel Mini
- Page 1 SETUP 1. Turn on Kossel Mini by turning red e-stop button on top of the machine. 2. Open Repetier Host. 3. Establish a connection to the printer. 4. Click Home All to home the printer.
- Page 2 4. After the auto-leveling routine is complete the printer will pause again so that you can retract the Z probe. 5. The print will then begin. ⚠ If at any point during operation you need to stop the machine due to error, please hit the e-stop button on top of the electronics cabinet.
