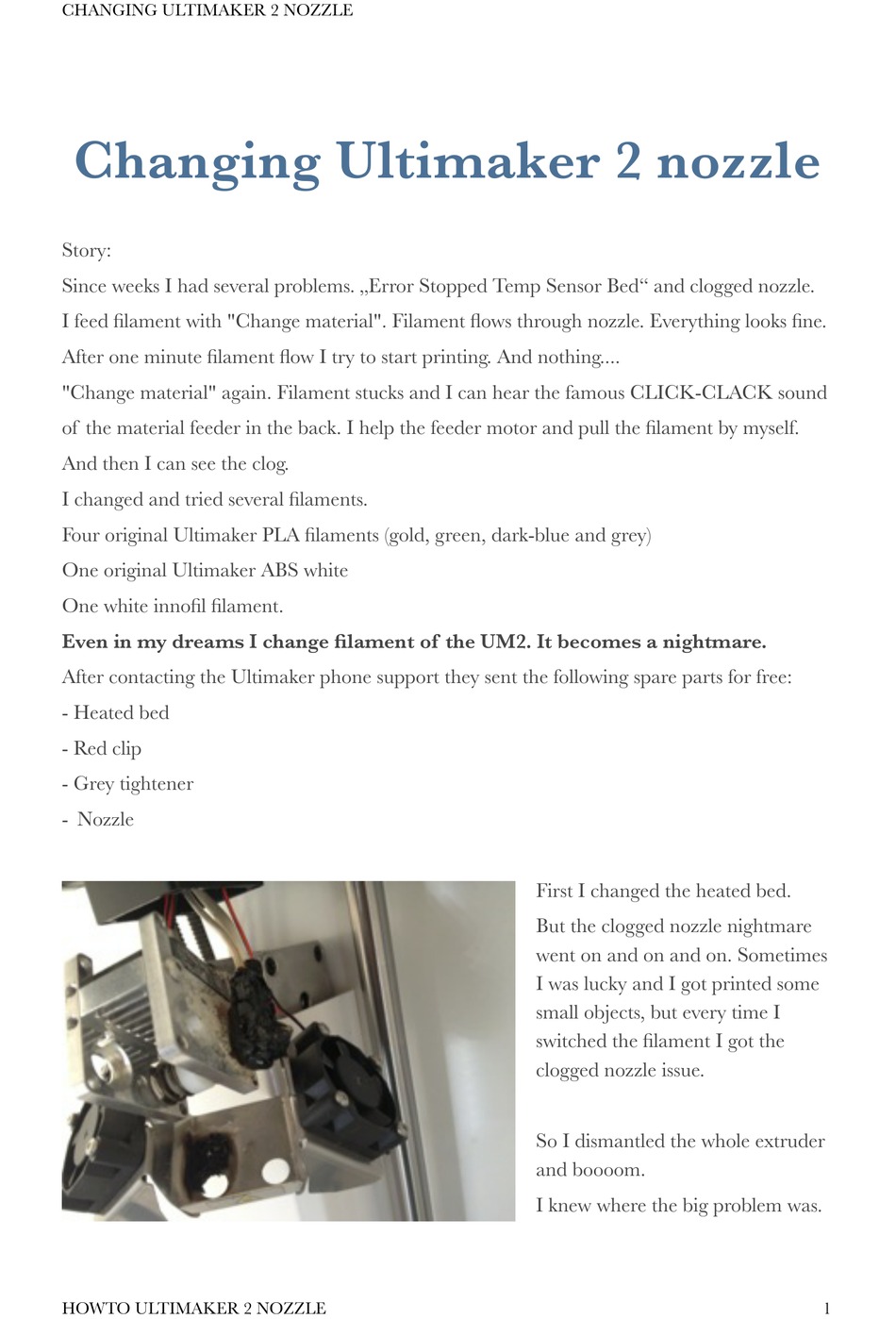

CHANGING ULTIMAKER 2 NOZZLE
!
!
Changing Ultimaker 2 nozzle
!
Story:
Since weeks I had several problems. „Error Stopped Temp Sensor Bed" and clogged nozzle.
I feed filament with "Change material". Filament flows through nozzle. Everything looks fine.
After one minute filament flow I try to start printing. And nothing....
"Change material" again. Filament stucks and I can hear the famous CLICK-CLACK sound
of the material feeder in the back. I help the feeder motor and pull the filament by myself.
And then I can see the clog.
I changed and tried several filaments.
Four original Ultimaker PLA filaments (gold, green, dark-blue and grey)
One original Ultimaker ABS white
One white innofil filament.
Even in my dreams I change filament of the UM2. It becomes a nightmare.
After contacting the Ultimaker phone support they sent the following spare parts for free:
- Heated bed
- Red clip
- Grey tightener
- Nozzle
HOWTO ULTIMAKER 2 NOZZLE
!
First I changed the heated bed.
But the clogged nozzle nightmare
went on and on and on. Sometimes
I was lucky and I got printed some
small objects, but every time I
switched the filament I got the
clogged nozzle issue.
So I dismantled the whole extruder
and boooom.
I knew where the big problem was.
!
! 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FabLab Ultimaker 2
Summary of Contents for FabLab Ultimaker 2
- Page 1 CHANGING ULTIMAKER 2 NOZZLE Changing Ultimaker 2 nozzle Story: Since weeks I had several problems. „Error Stopped Temp Sensor Bed“ and clogged nozzle. I feed filament with "Change material". Filament flows through nozzle. Everything looks fine. After one minute filament flow I try to start printing. And nothing..
- Page 2 filament from PLA to ABS and on a long overnight print I saw this error in the morning in the Ultimaker LCD display. The Ultimaker 2 extruder block is quite a block so nobody realized this massive plastic problem.
- Page 3 CHANGING ULTIMAKER 2 NOZZLE Changing nozzle description from Ultimaker support: In order to replace the nozzle you will first have to remove the metal fan bracket, which is attached to both sides of the printhead with 2 screws. Next you also loosen the 4 long bolts that hold the printhead together.
- Page 4 CHANGING ULTIMAKER 2 NOZZLE All steps completed. New nozzle with fitting tube. HOWTO ULTIMAKER 2 NOZZLE...
