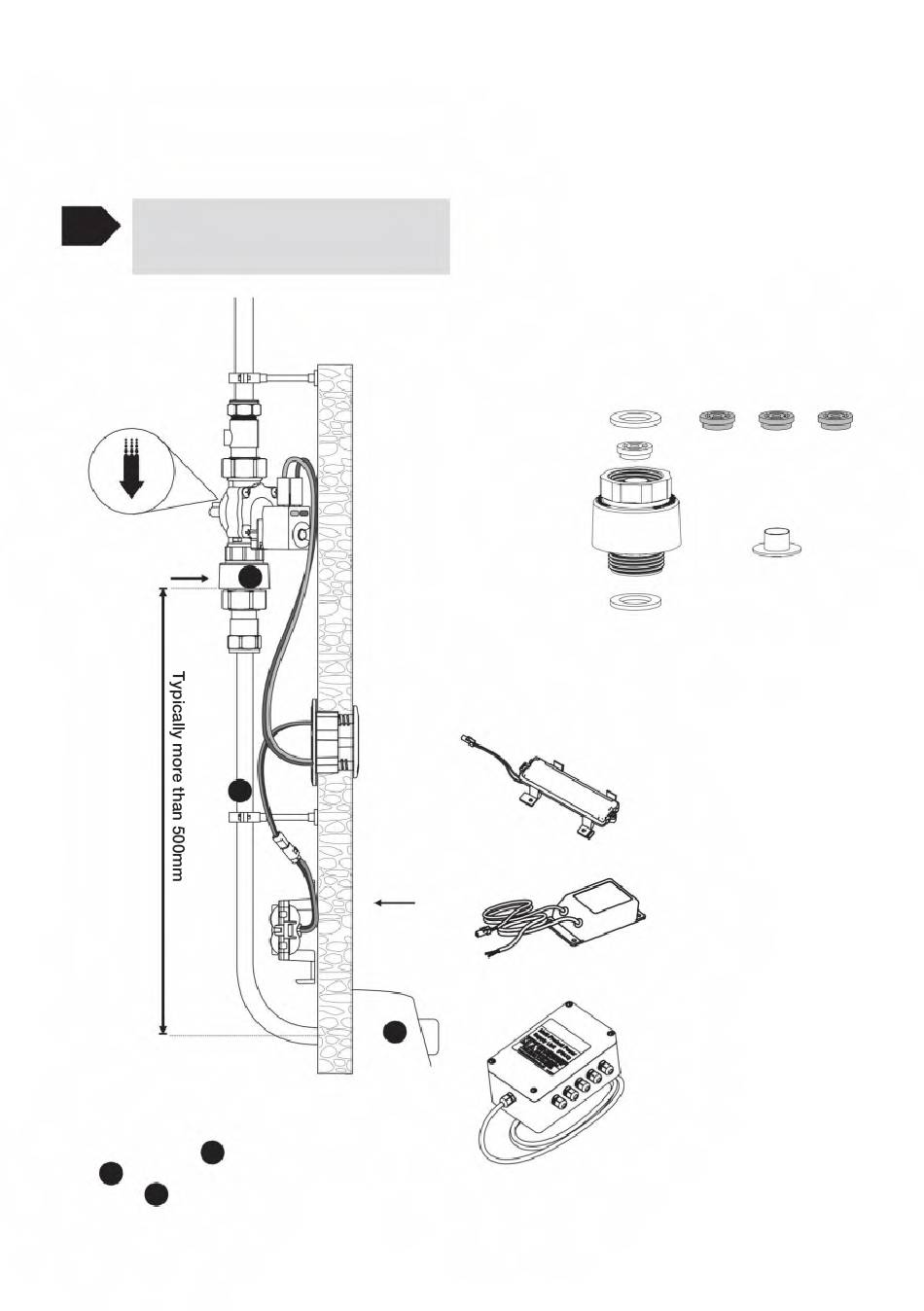

DFD installation
A
IMPORTANT:
Read installation guidelines on page 4
Direction
of flow
DC pipe
interrupter
B
The DC pipe interrupter is supplied with 3 flow
regulators. Select the appropriate flow rate to
A
match the sparge
and the volume of the
B
pipe
to prevent overflow from the DC pipe
C
interrupter
C
A
The valve should always be installed as high as
possible on the vertical pipe feeding the sparge
outlet to prevent water backing up and leaking
from the DC pipe interrupter. A 1.5m extension
cable is supplied.
DC pipe interrupter is supplied
with:
Rubber seal
Flow regulator
or jet
Rubber seal
In some circumstances a squeak may be
heard when the valve closes. If so, the DC pipe
interrupter jet may be used to reduce this.
Power options
Battery case (requires 4 x AA alkaline batteries)
OR
Mains adaptor (requires 1A fused spur)
OR
Multi product power supply unit (not supplied)
(suitable for powering up to 20 units)
