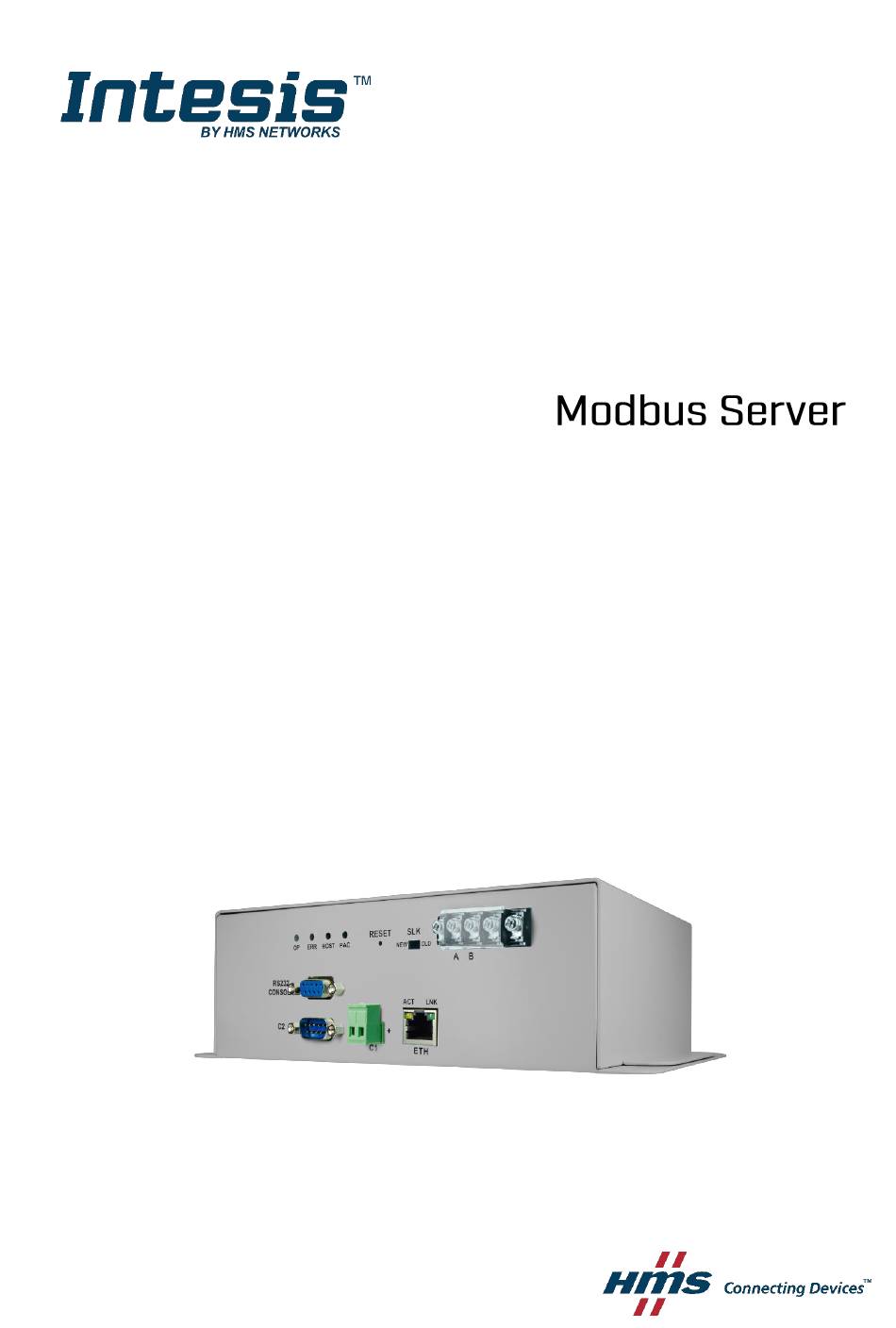

- Page 1 Mitsubishi Heavy Industries Air Conditioning Gateway for integration of Mitsubishi Heavy Industries air conditioning systems into Modbus (RTU and TCP) systems USER MANUAL Issue date: 05/2012 r1.0 ENGLISH...
- Page 2 Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.
- Page 3 Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Gateway integration Mitsubishi Heavy Industries air conditioning systems into Modbus (RTU and TCP) systems. ORDER CODE LEGACY ORDER CODE INMBSMHI048O000 MH-AC-MBS-48 INMBSMHI128O000 MH-AC-MBS-128 © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 3 / 26...
-
Page 4: Table Of Contents
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Index Description ....................... 5 Introduction ....................5 Integration signals ................... 5 Functionality ....................6 Capacity of Intesis ..................7 Modbus interface of Intesis ................8 Description ..................... 8 Functions supported .................. -
Page 5: Description
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Description Introduction Intesis Modbus Server – Mitsubishi Heavy Industries AC is a communication gateway for Mitsubishi Heavy Industries air conditioning (AC) systems to Modbus slave (RTU and TCP). This gateway allows integrating a Mitsubishi Heavy Industries AC system inside a supervision/control/automation system through PLC, SCADA and, in general, through any device or system with Modbus mastering (TCP or RTU) interface. -
Page 6: Functionality
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Functionality Each of the mentioned signals in section 1.2 is associated to a predefined and fixed Modbus address. Therefore, all the system is seen as a single Modbus slave unit with a fixed Modbus address map from the Modbus system point of view. -
Page 7: Capacity Of Intesis Tm
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Capacity of Intesis Element Max. Notes Maximum number of AC indoor units that Number of indoor units 128 * can be controlled Number of points per indoor unit Modbus addresses per indoor unit Maximum number of points 1797*... -
Page 8: Modbus Interface Of Intesis Tm
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Modbus interface of Intesis Description Intesis acts as a slave device in the Modbus interface. The physical interface can be either Ethernet, if using Modbus TCP, or the EIA485 (or EIA232), if using Modbus RTU. Functions supported This part is common for Modbus RTU and TCP: •... -
Page 9: Modbus Addresses Related To Intesis
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng 2.5.1 Modbus addresses related to Intesis Modbus Modbus register Signal description and values address type (R/W) (base addr is 1) Hw Communication Status 2995 • 0: No Hardware Communication Error •... -
Page 10: Modbus Addresses Related To All Indoor Units
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng (R/W) … … … … ( n*) x 20 + Communication Status Indoor Unit On/Off ( n*) x 20 + ( n*) x 20 + Operation Mode ( n*) x 20 + SetPoint Temperature Fan Speed ( n*) x 20 +... -
Page 11: Intesis Device Connections

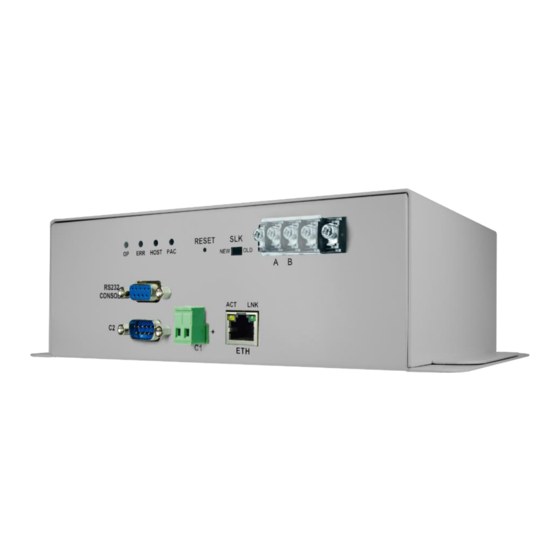

Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Intesis Device Connections Figure 3.1 Intesis device front view 100-240VAC~ 50-60Hz 5W max FUSE: 250V 1.5A(T) 20x5mm Figure 3.2 Intesis device back view Next, there is the list with the device physical interface connector’s description 1.- Modbus RTU master EIA485 8.- Reset button (C1) -
Page 12: Connect To Mitsubishi Heavy Industries Interface
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Connect to Mitsubishi Heavy Industries Interface Use the A-B connector in the right top corner of the front side of the Intesis device in order to connect the Mitsubishi Heavy Industries network (Superlink) to the Intesis Recommended specifications of the cable for the Superlink are shown as follows: •... -
Page 13: Connect To Modbus Tcp
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng • EIA485 connection: Use the C1 connector (see Figure 3.1) if the Modbus interface is a 2-wire EIA485 connector. Connect the + and – to the respective port in the master device and in the Intesis device (polarity matters). -
Page 14: Connect To Pc (Linkboxmb)
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng In case there is no communication with the Intesis , check that the Modbus TCP devices are operative and reachable from the network connection used by Intesis . You can also check that the Intesis Ethernet interface is sending Pings to its IP address using a PC connected to the same Ethernet network. -
Page 15: Tm Modbus Server Series
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng LinkBoxMB . Configuration & monitoring tool for Intesis Modbus Server series Introduction LinkBoxMB is a Windows ® compatible software developed specifically to monitor and configure Intesis Modbus Server series. The installation procedure and main functions are explained in the LinkBoxMB User Manual. - Page 16 Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng • Modbus interface configuration parameters: Figure 4.3 Modbus interface configuration 1. Select the type of Modbus communication to use (TCP, RTU or both). If Modbus TCP is selected, then: 2.
-
Page 17: Modbus Map Tab
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Figure 4.4 Mitsubishi Heavy Industries interface configuration 1. Devices: In this list, you can individually enable each of the 128 indoor units available on the system. The index in the column “Indoor unit” (i.e. the number x in “Indoor Unit xxx”) is the reference that will be used later on (in tab “Signals”) to refer to this AC indoor unit. -
Page 18: Sending The Configuration To Intesis Tm
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Content in this tab is just informative: no information has to be set up. Figure 4.5 Modbus signal list 1. Address Formula: Formula used by Intesis to define the Modbus address for the point. -
Page 19: Signals Viewer
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng 4.- Press the Send File button to send the binary file to the Intesis device. The process of file transmission can be monitored in the Intesis Communication Console window. Intesis will reboot automatically once the new configuration is loaded. -
Page 20: Files
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Figure 4.7 Signal value change window Files LinkBoxMB saves the integration configuration in the following files inside the project folder: PROJECT.INI INI file containing general information related to the project INI file containing information related with the values configured MHI.INI through the “Connection”... -
Page 21: Setup Process And Troubleshooting
. If using EIA232 communication, remember to respect the maximum of 15 meters cable distance. Connectors, connection cables, PC for LinkBoxMB, and other auxiliary material, if needed, are not supplied by HMS Networks for this standard integration. Items supplied by HMS Networks for this integration are: •... -
Page 22: Troubleshooting
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Troubleshooting If Intesis is not working properly or even not working at all, please check the following conditions to be accomplished. 5.3.1 Physical checking First point to look at to make sure that Intesis is not working properly is to check physical connections: 1.- Make sure that the power plug is correctly connected and current is available in... -
Page 23: Functional Characteristics Summary
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Functional characteristics summary General Max. Number of Two different versions of Intesis available, supporting a maximum Mitsubishi Heavy of 128 and 48 indoor units respectively. Industries interfaces Virtual signals •... -
Page 24: Mechanical & Electrical Characteristics
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Mechanical & Electrical characteristics 179 mm 65 mm 61 mm 215 mm 167 mm Figure 7.1 External dimensions – Perspective view 61 mm 65 mm 4 mm Figure 7.2 External dimensions – Front view 195 mm Ø... -
Page 25: Ac Unit Types Compatibility
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Industrial sheet metal. Enclosure Size: 215mm x 167mm x 61mm. Weight: 2.025 Kg Color Gray metalized. 100 to 240VAC~ 50 to 60Hz Power 5W max. Power connector: C14 (male) 250V Fuse 1.5A... -
Page 26: Error Codes
Modbus Server – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.0 eng Error codes This list contains all possible values shown in Modbus registers for “Error Code” for each indoor unit. Error Error in Code Remote Error Description Modbus Controller No active error Remote controller communication error Duplicated indoor unit address...
