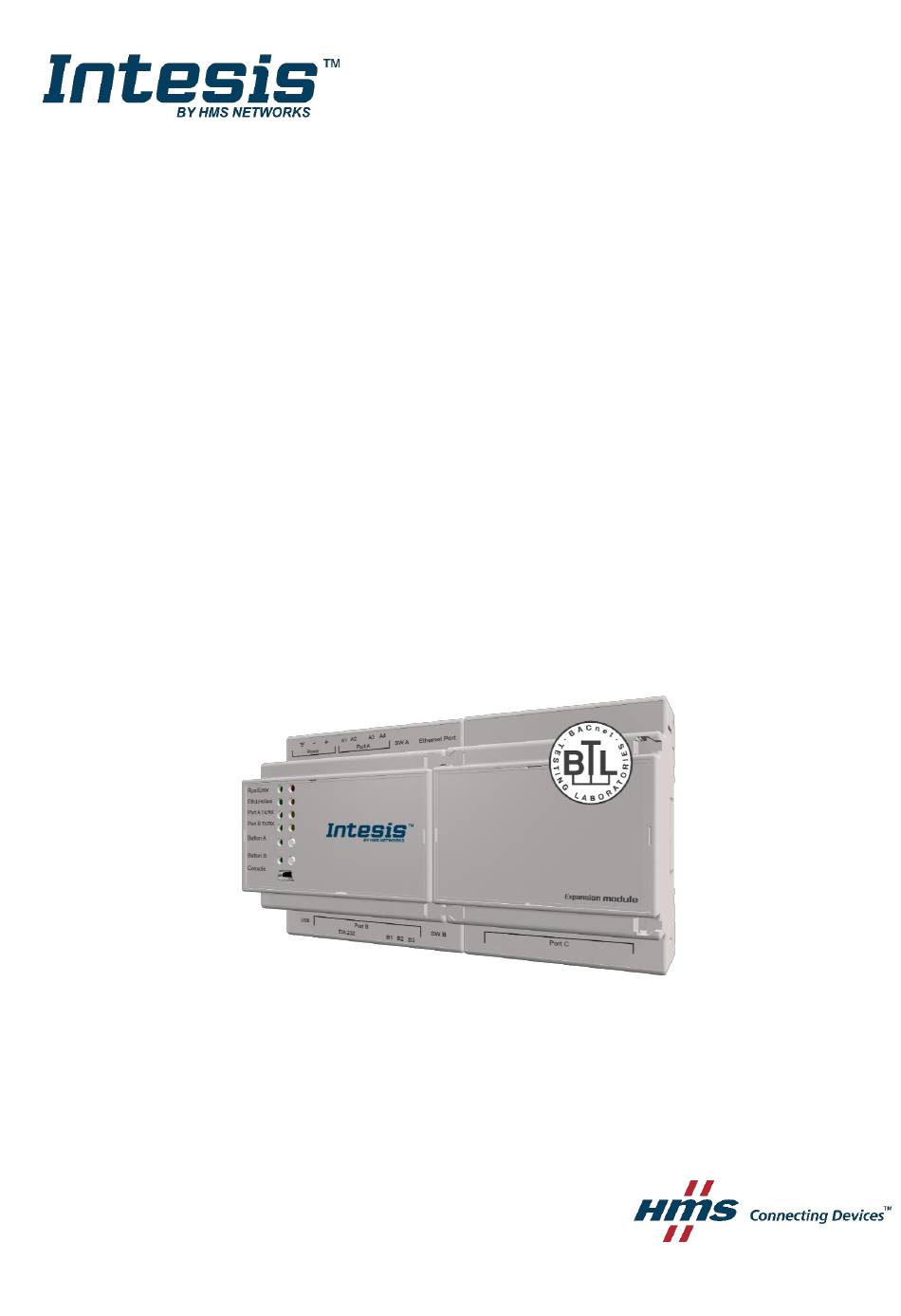

- Page 1 BACnet Server PROFINET IO Device USER MANUAL Issue date: 05/2020 r1.0 ENGLISH...
- Page 2 BACnet Server – PROFINET Intesis User Manual r1.0 eng Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.
- Page 3 BACnet Server – PROFINET Intesis User Manual r1.0 eng Gateway to connect BACnet MSTP or BACnet IP installations with PROFINET networks. ORDER CODE INBACPRT1K20000 © HMS Industrial Networks S.L.U - All rights reserved URL https://www.intesis.com This information is subject to change without notice 3 / 46...
-
Page 4: Table Of Contents
Connection to the configuration tool ....................38 8. Status LEDs and push buttons ......................39 9. Set-up process and troubleshooting ...................... 40 Pre-requisites ..........................40 Intesis MAPS. Configuration & monitoring tool for Intesis BACnet series ........40 9.2.1 Introduction ..........................40 9.2.2 Connection .......................... - Page 5 BACnet Server – PROFINET Intesis User Manual r1.0 eng 9.2.5 Sending the configuration to Intesis ..................42 9.2.6 Diagnostic ..........................42 Set-up procedure ..........................44 10. Electrical & Mechanical Features ......................45 11. Dimensions ............................46 © HMS Industrial Networks S.L.U - All rights reserved URL https://www.intesis.com This information is subject to change without notice 5 / 46...
-
Page 6: Description
This document describes how to easily connect BACnet MS/TP or BACnet IP systems with PROFINET networks using the Intesis BACnet Server – PROFINET gateway. The aim of this integration is to share data between PROFINET IO Controllers and BACnet based control systems or devices, merging both systems into one. -
Page 7: Functionality
BACnet Server – PROFINET Intesis User Manual r1.0 eng Functionality On the PROFINET side, the gateway acts as a PROFINET IO-Device, so after the start up process, the gateway presents its points as PROFINET IO data to exchange them cyclically or using acyclic Read/Write requests, according to their configuration. -
Page 8: Protocol Implementation Conformance Statement
BACnet Server – PROFINET Intesis User Manual r1.0 eng 2. Protocol Implementation Conformance Statement BACnet Protocol Implementation Conformance Statement (PICS) Date: 2018-05-16 Vendor Name: HMS Industrial Networks S.L.U Product Name: INBACPRT---0000 Product Model Number: INBACPRT---0000 Application Software Version: 1.0.0.0 Firmware Revision: 14.0.1.0 BACnet Protocol Revision: 14 Product Description: BACnet MS/TP &... -
Page 9: Device Address Binding
BACnet Server – PROFINET Intesis User Manual r1.0 eng Device Address Binding: Is static device binding supported? (This is currently necessary for two-way communication with MS/TP slaves and certain other devices.) Networking Options: Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/TP, etc. Annex H, BACnet Tunneling Router over IP BACnet/IP Broadcast Management Device (BBMD) Does the BBMD support registrations by Foreign Devices? -
Page 10: Bacnet Interoperability Building Blocks Supported (Bibbs)
BACnet Server – PROFINET Intesis User Manual r1.0 eng 3. BACnet Interoperability Building Blocks Supported (BIBBs) Data Sharing BIBBs BIBB Type Active BACnet Service Initiate Execute DS-RP-A Data Sharing-ReadProperty–A ReadProperty DS-RP-B Data Sharing-ReadProperty–B ReadProperty DS-RPM-A Data Sharing-ReadPropertyMultiple–A ReadPropertyMultiple DS-RPM-B Data Sharing-ReadPropertyMultiple–B ReadPropertyMultiple DS-RPC-A Data Sharing-ReadPropertyConditiona–A... -
Page 11: Scheduling Bibbs
BACnet Server – PROFINET Intesis User Manual r1.0 eng Scheduling BIBBs BIBB Type Active BACnet Service Initiate Execute Scheduling–A SCHED-A (must support DS-RP-A and DS-WP-A) Scheduling-Internal–B SCHED-I-B (shall support DS-RP-B and DS-WP-B) (shall also support ether DM-TS-B or DS-UTC-B) Scheduling-External–B SCHED-E-B (shall support SCHED-I-B and DS-WP-A) Trending BIBBs... -
Page 12: Device Management Bibbs
BACnet Server – PROFINET Intesis User Manual r1.0 eng Device Management BIBBs BIBB Type Active BACnet Service Initiate Execute Who-Is DM-DDB-A Device Management - Dynamic Device Binding–A I-Am Who-Is DM-DDB-B Device Management - Dynamic Device Binding–B I-Am Who-Has DM-DOB-A Device Management - Dynamic Object Binding–A I-Have Who-Has DM-DOB-B... -
Page 13: Service Types
BACnet Server – PROFINET Intesis User Manual r1.0 eng 4. Service Types Service type Service name Supported Remarks AcknowledgeAlarm ConfirmedCOVNotification ConfirmedEventNotification Alarm and Event Services GetAlarmSummary GetEnrollmentSummary SubscribeCOV AtomicReadFile File Access Services AtomicWriteFile AddListElement RemoveListElement CreateObject DeleteObject ReadProperty Object Access Services ReadPropertyConditional ReadPropertyMultiple... -
Page 14: Objects
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5. Objects Supported Object Types The objects supported are shown in the table below. Object Type Supported Management Point Analog-Input Analog-Output Analog-Value Averaging Binary-Input Binary-Output Binary-Value Calendar Command Device Event-Enrollment File Group Life-Safety-Point Life-Safety-Zone... -
Page 15: Objects And Properties
BACnet Server – PROFINET Intesis User Manual r1.0 eng Objects and properties Device Object Type 5.2.1 INBACPRT---0000 ( Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Device, 246000) Object_Name CharacterString "INBACPRT---0000" Object_Type BACnetObjectType DEVICE (8) (Device Object Type) System_Status BACnetDeviceStatus OPERATIONAL (0) Vendor_Name... - Page 16 BACnet Server – PROFINET Intesis User Manual r1.0 eng Max_Master * ** Unsigned Max_Info_Frames * Unsigned List of Device_Address_Binding NULL (empty) BACnetAddressBinding Database_Revision Unsigned BACnetArray[N] of Configuration_Files BACnetObjectIdentifier Last_Restore_Time BACnetTimeStamp Backup_Failure_Timeout Unsigned16 Active_COV_ List of List of BACnetCOVSubscription Subscriptions BACnetCOVSubscription BACnetArray[N] of Slave_Proxy_Enable BOOLEAN...
-
Page 17: Analog Input Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.2 Analog Input Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL Description CharacterString Device_Type... -
Page 18: Analog Output Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.3 Analog Output Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Output, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType ANALOG_OUTPUT (1) Present_Value REAL Description CharacterString Device_Type... -
Page 19: Analog Value Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.4 Analog Value Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Value, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType ANALOG_VALUE (2) Present_Value REAL Description CharacterString Status_Flags... -
Page 20: Binary Input Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.5 Binary Input Object Type Property Identifier Property Datatype Value ASHRAE IBOX (Binary Input, 0) Object_Identifier BACnetObjectIdentifier Configurable through BACnet and Config Object_Name CharacterString Tool Object_Type BACnetObjectType BINARY_INPUT (3) Present_Value BACnetBinaryPV INACTIVE (0) / ACTIVE (1) Description CharacterString... -
Page 21: Binary Output Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.6 Binary Output Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Binary Output, 0) Configurable through BACnet and Config Object_Name CharacterString Tool Object_Type BACnetObjectType BINARY_OUTPUT (4) Present_Value BACnetBinaryPV INACTIVE (0) / ACTIVE (1) Description CharacterString... -
Page 22: Binary Value Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.7 Binary Value Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Binary Value, 0) Configurable through BACnet and Config Object_Name CharacterString Tool Object_Type BACnetObjectType BINARY_VALUE (5) Present_Value BACnetBinaryPV INACTIVE (0) / ACTIVE (1) Description CharacterString... -
Page 23: Multistate Input Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.8 Multistate Input Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Multi-state Input, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType MULTISTATE_INPUT (13) Present_Value Unsigned Description CharacterString Device_Type... -
Page 24: Multistate Output Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.9 Multistate Output Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Multi-state Output, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType MULTISTATE_OUTPUT (14) Present_Value Unsigned Description CharacterString Device_Type... -
Page 25: Multistate Value Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.10 Multistate Value Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Multi-state Output, 0) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType MULTISTATE_VALUE (19) Present_Value Unsigned Description CharacterString Status_Flags... -
Page 26: Calendar Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.11 Calendar Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Calendar, 6) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType CALENDAR (6) Description CharacterString Present_Value BOOLEAN Date_List BACnetLIST of BACnetCalendarEntry... -
Page 27: Schedule Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.12 Schedule Object Type Property Identifier Property Datatype Value ASHRAE IBOX BACnetObjectIdentifier (Schedule, 17) Object_Identifier CharacterString Configurable through BACnet and Config Object_Name Tool BACnetObjectType SCHEDULE (17) Object_Type Present_Value CharacterString Description BACnetDateRange Effective_Period BACnetARRAY[7] of Weekly_Schedule... -
Page 28: Notification Class Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.13 Notification Class Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Notification_Class, 15) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType NOTIFICATION_CLASS (15) Description CharacterString Notification_Class Unsigned Priority BACnetARRAY[3] of... -
Page 29: Trend Log Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.14 Trend Log Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Trend_Log, 20) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType TREND_LOG (20) Description CharacterString Enable BOOLEAN Start_Time BACnetDateTime... -
Page 30: Trend Log Multiple Object Type
BACnet Server – PROFINET Intesis User Manual r1.0 eng 5.2.15 Trend Log Multiple Object Type Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Trend_Log_Multiple, 27) Object_Name CharacterString Configurable through BACnet and Config Tool Object_Type BACnetObjectType TREND_LOG_MULTIPLE (27) Description CharacterString Enable BOOLEAN Start_Time... -
Page 31: Profinet Module
(via PROFINET DCP) is not possible or desired. By default, it is disabled but it can be enabled from Intesis MAPS tool. When the application is started, the network is automatically scanned for Intesis BACnet-PROFINET modules. The network can be rescanned at any time by cliking Scan. -
Page 32: Web Server
BACnet Server – PROFINET Intesis User Manual r1.0 eng Web Server The built-in web server provides a flexible environment for end-user interaction and configuration purposes. By default, it is disabled, but it can be enabled from Intesis MAPS tool. The web server supports up to 20 concurrent connections and communicates through port 80. The default web pages provide access to: •... - Page 33 BACnet Server – PROFINET Intesis User Manual r1.0 eng Available SMTP Settings Name Description Server IP address or name Max 64 characters User Max 64 characters Password Max 64 characters The Ethernet statistics page contains the following information: Current IP Configuration Description DHCP: Host Name:...
-
Page 34: Media Redundancy Protocol (Mrp)
BACnet Server – PROFINET Intesis User Manual r1.0 eng Media Redundancy Protocol (MRP) Media Redundancy Protocol (MRP) is a PROFINET specific ring protocol ensuring redundancy in the network, which can significantly decrease network downtime. It is a token-based ring protocol with a master-slave hierarchy. All the nodes in the PROFINET network part of the ring are connected using ring topology (that is, the last node is connected directly to the first node). - Page 35 BACnet Server – PROFINET Intesis User Manual r1.0 eng Power Supply Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply. Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check section 10). The power supply can be connected to earth but only through the negative terminal, never through the positive terminal.
- Page 36 BACnet Server – PROFINET Intesis User Manual r1.0 eng Connect a mini-type B USB cable from your computer to the gateway to allow communication between the Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user manual for more information.
-
Page 37: Powering The Device
BACnet Server – PROFINET Intesis User Manual r1.0 eng Powering the device A power supply working with any of the voltage range allowed is needed (check section 10). Once connected the RUN led (Figure above) will turn on. WARNING! In order to avoid earth loops that can damage the gateway and/or any other equipment connected to it, we strongly recommend: •... -
Page 38: Connection To Profinet
BACnet Server – PROFINET Intesis User Manual r1.0 eng Connection to PROFINET Connect the communication cables coming from previous and next device in the PROFINET network, using a line or ring topology. When ring topology is used, a device must take over the function of the ring manager (MRM). See section 6.4 Media Redundancy Protocol (MRP) for more details. -
Page 39: Status Leds And Push Buttons
BACnet Server – PROFINET Intesis User Manual r1.0 eng 8. Status LEDs and push buttons Colour Indication No power Green Device powered and working. Error No error Error Port A (Tx/Rx) – BACnet There is no activity on this port. Tx - Blinking green Every data packet sent to the network it blinks... -
Page 40: Set-Up Process And Troubleshooting
Link to download the configuration tool. • USB Console cable to communicate with gateway. • Product documentation. Intesis MAPS. Configuration & monitoring tool for Intesis BACnet series 9.2.1 Introduction ® Intesis MAPS is a Windows compatible software developed specifically to monitor and configure Intesis BACnet series. -
Page 41: Configuration Tab
BACnet Server – PROFINET Intesis User Manual r1.0 eng 9.2.3 Configuration tab Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in this window: General (Gateway general parameters), BACnet Server (BACnet interface configuration) and PROFINET (interface parameters). - Page 42 BACnet Server – PROFINET Intesis User Manual r1.0 eng 9.2.5 Sending the configuration to Intesis When the configuration is finished, follow the next steps. 1.- Click on Save button to save the project to the project folder on your hard disk (more information in Intesis MAPS User Manual).
- Page 43 BACnet Server – PROFINET Intesis User Manual r1.0 eng Figure 9.5 Diagnostic More information about the Diagnostic section can be found in the Configuraion Tool manual. © HMS Industrial Networks S.L.U - All rights reserved URL https://www.intesis.com This information is subject to change without notice 43 / 46...
- Page 44 BACnet Server – PROFINET Intesis User Manual r1.0 eng Set-up procedure 1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by the Installation wizard. 2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface (DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended).
- Page 45 BACnet Server – PROFINET Intesis User Manual r1.0 eng Electrical & Mechanical Features Plastic, type ABS (UL 94 V-0) Size: Coin 20mm x 3.2mm Net dimensions (d h): 90x160x58 mm Enclosure Battery Capacity: 3V / 225mAh Recommended space for installation (d h): 130x160x100mm Type: Manganese Dioxide Lithium Color: Light Grey.
- Page 46 BACnet Server – PROFINET Intesis User Manual r1.0 eng Dimensions 58 mm (h) 160 mm (w) 90 mm (d) Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for external connections 100 mm (h) 160 mm (w) 130 mm (d) ©...
