FASTCOM: ESCC-PCI-335

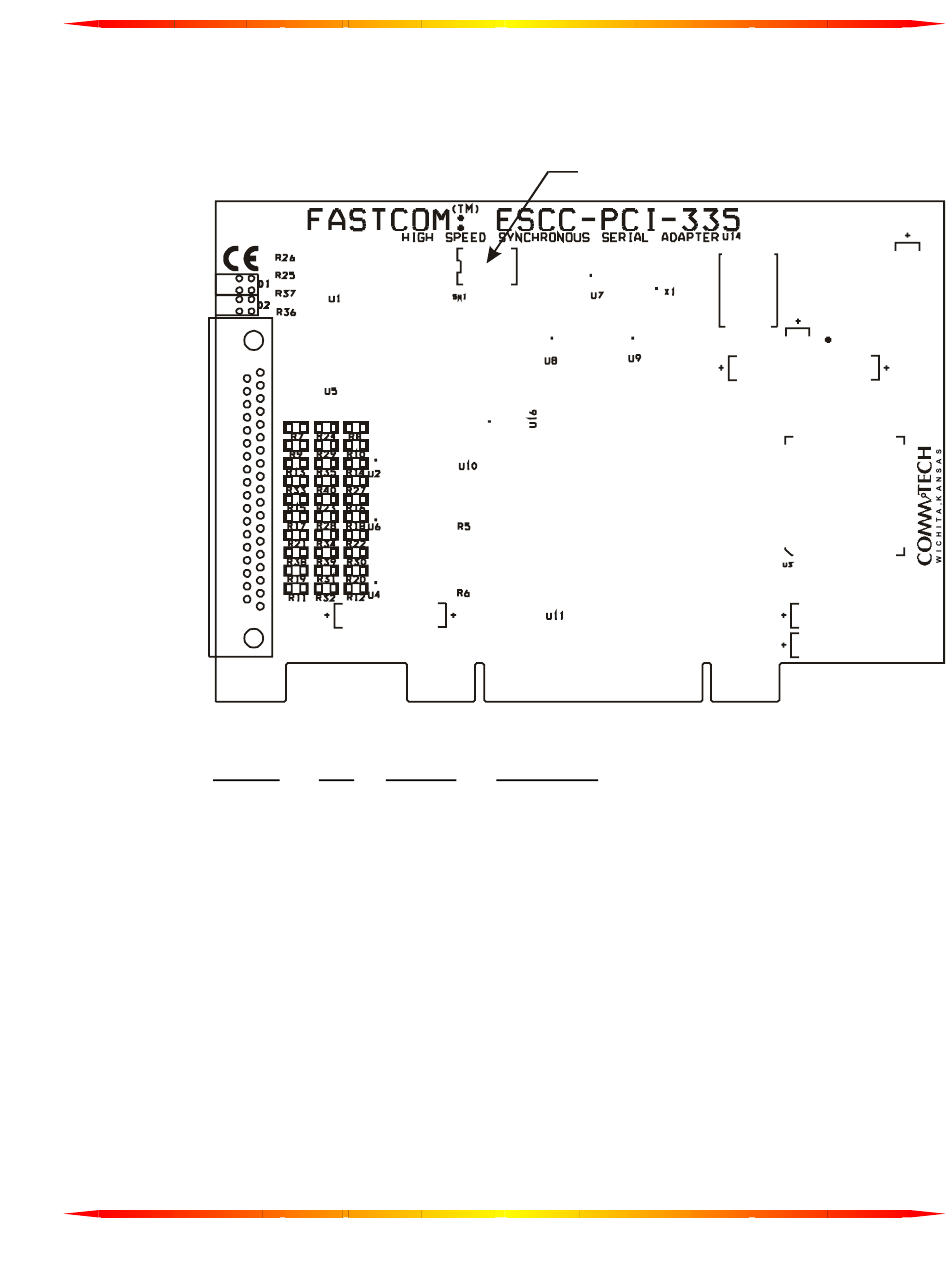

BOARD LAYOUT

LEDs
Channel 1
Channel 2
DB37
Connector
SIGNAL
RD
CTS
CHANNEL 1: ST
DCD
RT
RD
CTS
CHANNEL 2: ST
DCD
RT
PACKING LIST:
FASTCOM: ESCC-PCI-335 CARD
CABLE ASSEMBLY
FASTCOM CD
If an omission has been made, please call technical support for a replacement.
TERMINATION REFERENCE:
REF PULLUP
R24 R8
R29 R10
R35 R14
R40 R27
R32 R12
R23 R16
R28 R18
R34 R22
R39 R30
R31 R20
Switch 1
PULLDOWN
R7 RED
R9 GREEN
R13
R33
R11
R15 RED
R17 GREEN
R21
R38
R19
LED INDICATORS:
TRANSMIT ACTIVE
RECEIVE ACTIVE
TRANSMIT ACTIVE
RECEIVE ACTIVE
5
