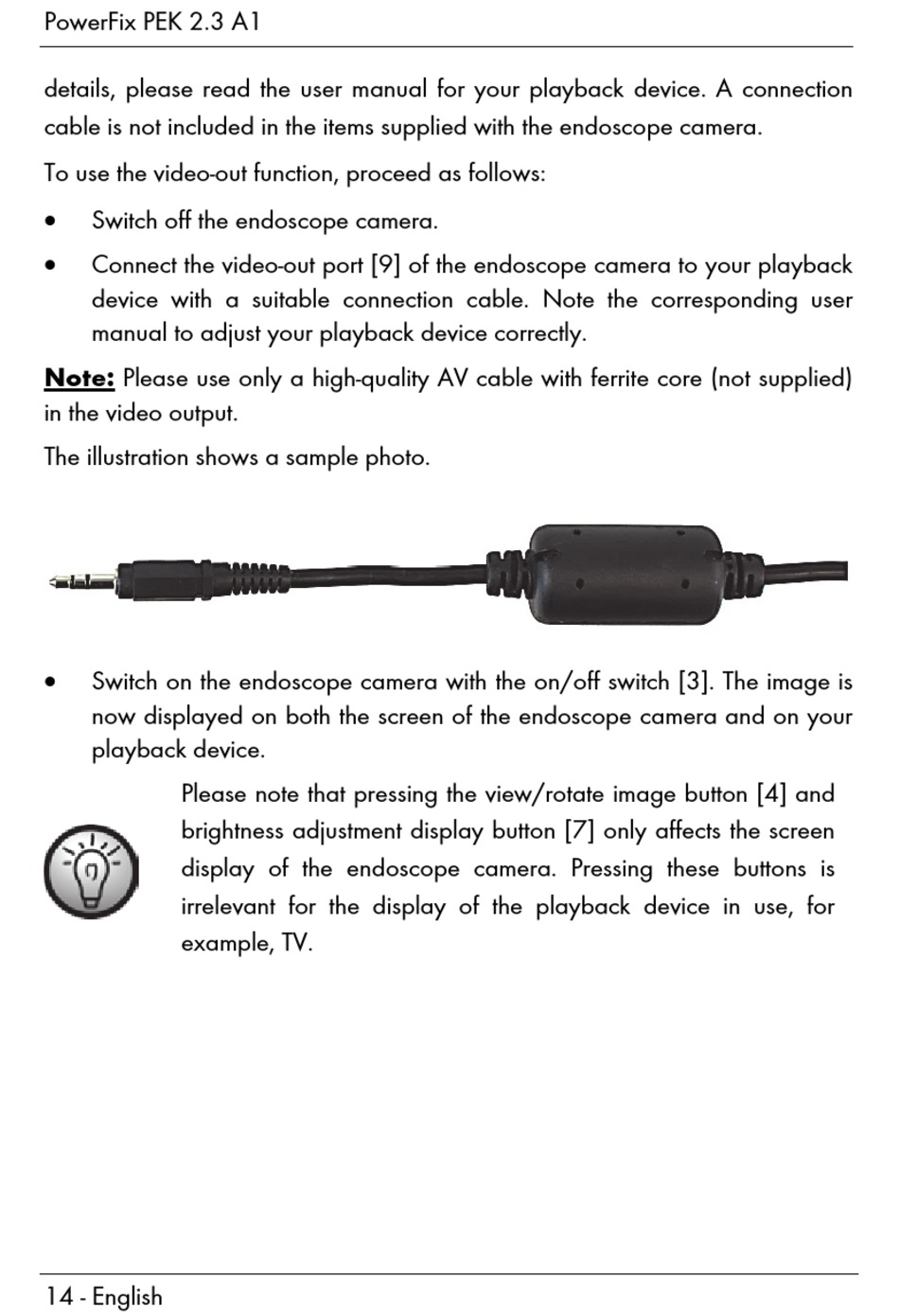

PowerFix PEK 2.3 A1
details, please read the user manual for your playback device. A connection
cable is not included in the items supplied with the endoscope camera.
To use the video-out function, proceed as follows:

Switch off the endoscope camera.

Connect the video-out port [9] of the endoscope camera to your playback
device with a suitable connection cable. Note the corresponding user
manual to adjust your playback device correctly.
Note: Please use only a high-quality AV cable with ferrite core (not supplied)
in the video output.
The illustration shows a sample photo.

Switch on the endoscope camera with the on/off switch [3]. The image is
now displayed on both the screen of the endoscope camera and on your
playback device.
Please note that pressing the view/rotate image button [4] and
brightness adjustment display button [7] only affects the screen
display of the endoscope camera. Pressing these buttons is
irrelevant for the display of the playback device in use, for
example, TV.
14 - English
