PowerFix PEK 2.3 A1

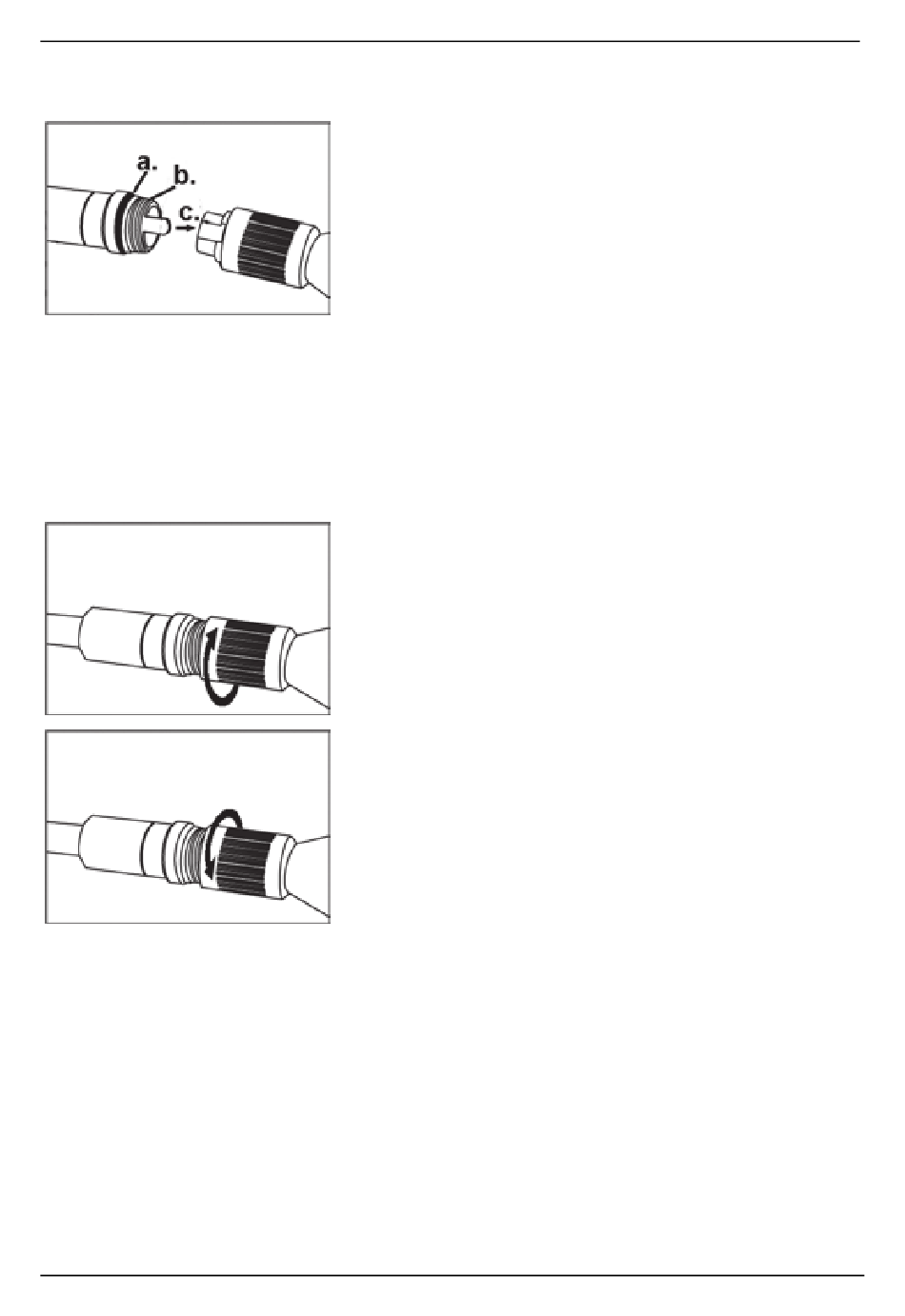

Attaching/detaching the gooseneck

12 - English
Proceed as follows:
To ensure the tightness of the screw connection,
remove any impurities on the rubber ring (a.)
and on the screw thread (b.) with a slightly
damp cloth. To maintain the flexibility of the
rubber ring,
occasionally, for example, with Vaseline. The
gooseneck can only be attached in one
direction due to the polarity protection feature.
Insert the polarity protection for this purpose
into the slot provided (c.).
The gooseneck can then be screwed on. Turn
the screw connection to the right until it is firmly
secured.
To detach the gooseneck, turn the screw
connection to the left until it is released. The
gooseneck can then be pulled off by exerting a
little force.
you should lubricate it
